Question 7
Using the diagonal properties, construct a parallelogram whose diagonals are of lengths 7 cm and 5 cm, and intersect at an angle of 140°.
A parallelogram has diagonals that bisect each other, meaning they cut each other into two equal halves at their meeting point.
Step 1 — Draw the first diagonal

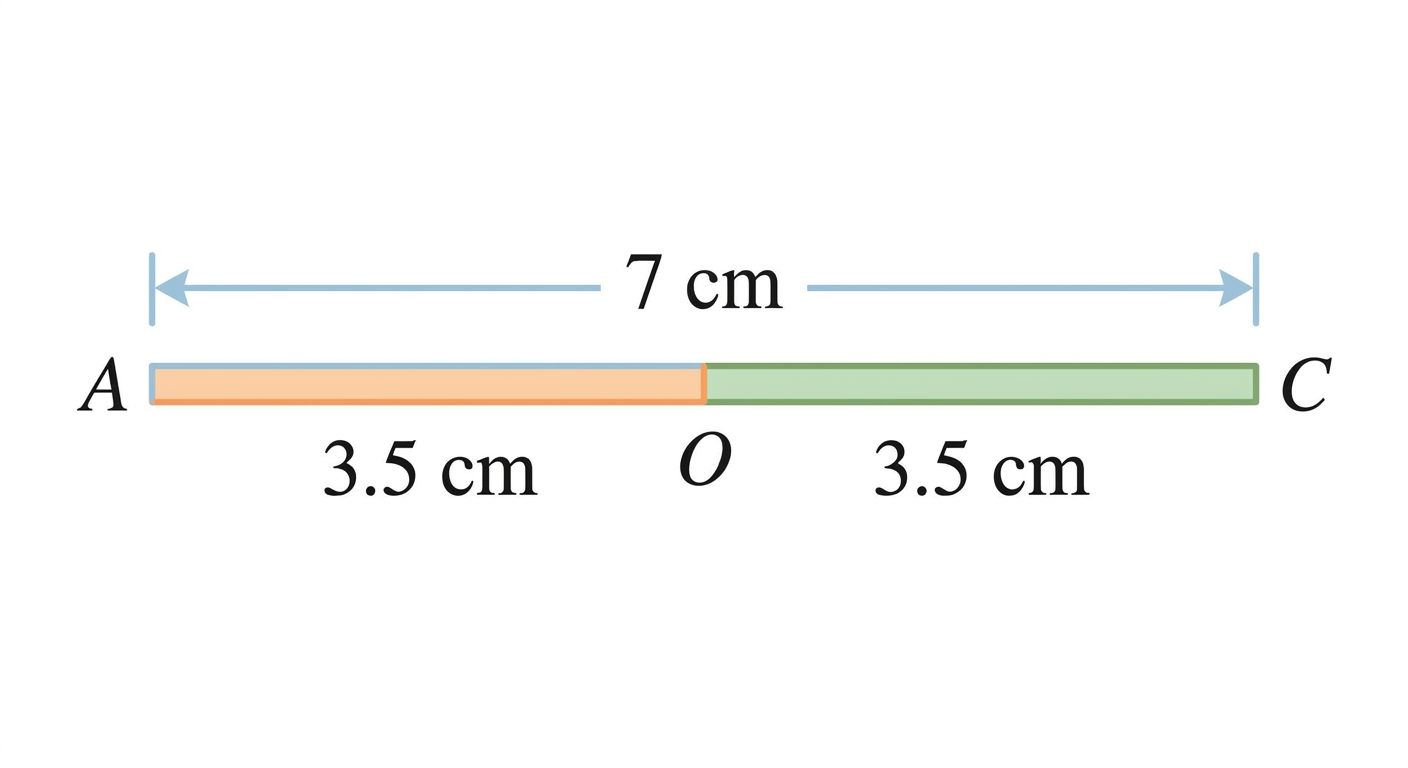

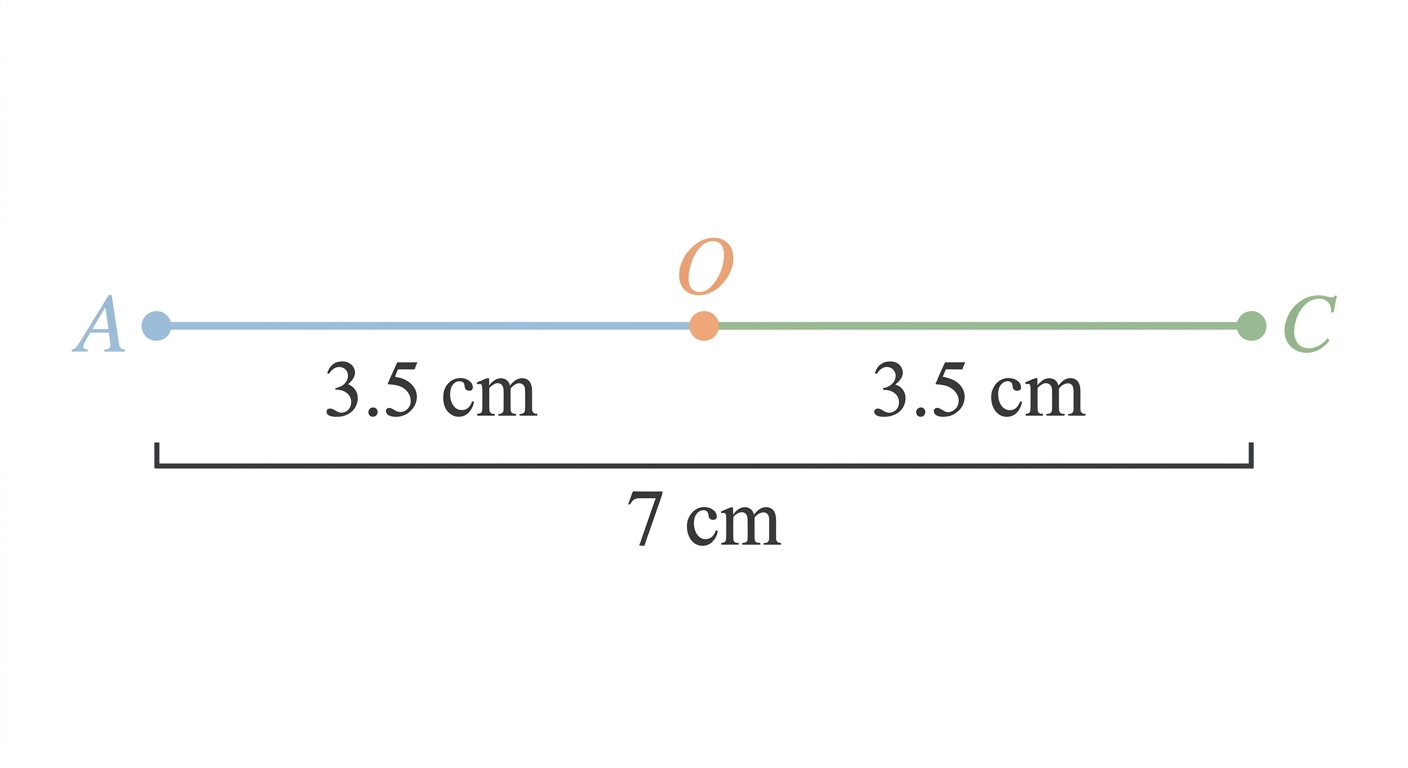

Let us start by drawing one of the diagonals. Draw a line segment AC with a length of 7 cm. Find the exact middle point of AC and label it O. So, the length of AO is half of AC.
The length of OC will also be 3.5 cm.
Step 2 — Draw the second diagonal
The second diagonal has a length of 5 cm. Since diagonals bisect each other, half of this diagonal will be 2.5 cm. Let this diagonal be BD, so BO = OD = 2.5 cm. At point O, use a protractor to draw a line segment that makes an angle of 140° with AC. Let's name this new line segment XOY, where X and Y are points on the line. Measure 2.5 cm from O along OX and mark point B. Measure 2.5 cm from O along OY (the opposite direction from OX) and mark point D. Now, BD is the second diagonal, and its total length is .
Step 3 — Complete the parallelogram
We now have the four corner points (vertices) of the parallelogram: A, B, C, and D. Connect these points with straight lines in order to form the sides of the parallelogram. Draw a line segment from A to B. Draw a line segment from B to C. Draw a line segment from C to D. Draw a line segment from D to A. The figure ABCD is the parallelogram we needed to construct.
Answer
The construction steps for the parallelogram are:
(i) Draw a line segment AC of length 7 cm. (ii) Mark the midpoint of AC as O, so AO = OC = 3.5 cm. (iii) At point O, draw a line segment BD such that BO = OD = 2.5 cm, and the angle is 140°. (iv) Join points A, B, C, and D in order (AB, BC, CD, DA) to form the parallelogram ABCD.
