Question 12
Draw a Venn diagram showing the set of parallelograms, kites, rhombuses, rectangles, and squares. Then, answer the following questions—
(i) What is the quadrilateral that is both a kite and a parallelogram? (ii) Can there be a quadrilateral that is both a kite and a rectangle? (iii) Is every kite a rhombus? If not, what is the correct relationship between these two types of quadrilaterals?

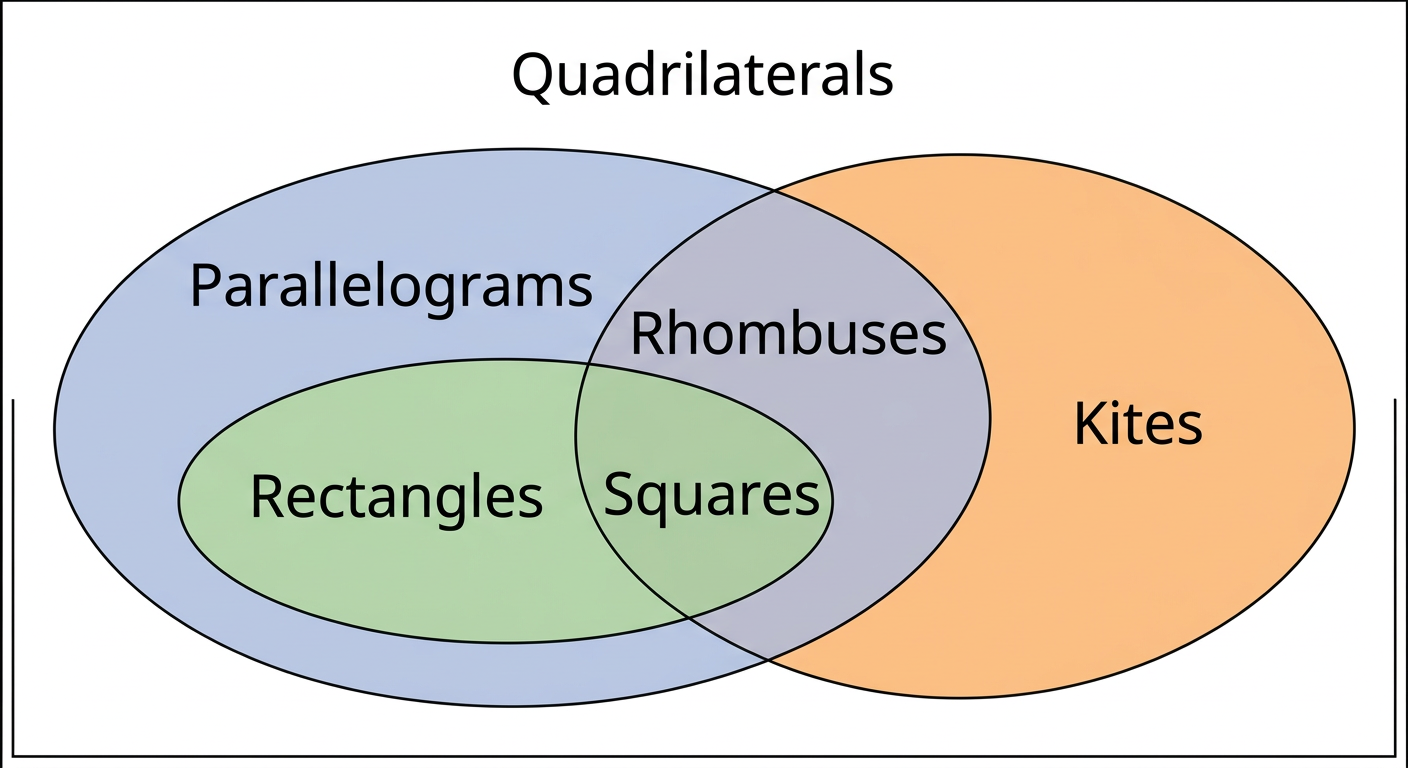

We can understand the relationships between different quadrilaterals using a Venn diagram.
Step 1 — Understanding Quadrilateral Relationships and Drawing the Venn Diagram
Let us first define each type of quadrilateral. A parallelogram has two pairs of parallel sides. A kite has two distinct pairs of equal-length adjacent sides. A rhombus is a parallelogram with all four sides equal. A rectangle is a parallelogram with all four angles equal to 90 degrees. A square has all four sides equal and all four angles equal to 90 degrees.
Now, let us find the relationships between these shapes to draw the Venn diagram:
- Every rectangle is a parallelogram.
- Every square is a rectangle.
- Every square is a rhombus.
- Every rhombus is a parallelogram.
- Every rhombus is a kite.
These relationships show us how the sets of these quadrilaterals overlap. The set of squares is a subset of both rectangles and rhombuses. Rectangles and rhombuses are both subsets of parallelograms. Rhombuses are also a subset of kites. This means squares are also a subset of kites.
Step 2 — Answering the Questions
Let us use the Venn diagram and our understanding of quadrilaterals to answer the questions.
Answer
(i) The set of rhombuses is common to both the set of kites and the set of parallelograms. Therefore, a rhombus is both a kite and a parallelogram. (ii) A kite is not a rectangle, and a rectangle is not a kite. Therefore, there can be no quadrilateral that is both a kite and a rectangle. Also, there is no common portion of the set of kites and the set of rectangles. (iii) Every kite is not a rhombus. In the given figure, the kite ABCD is not a rhombus. The correct relationship is that every rhombus is a kite.
