Question 13

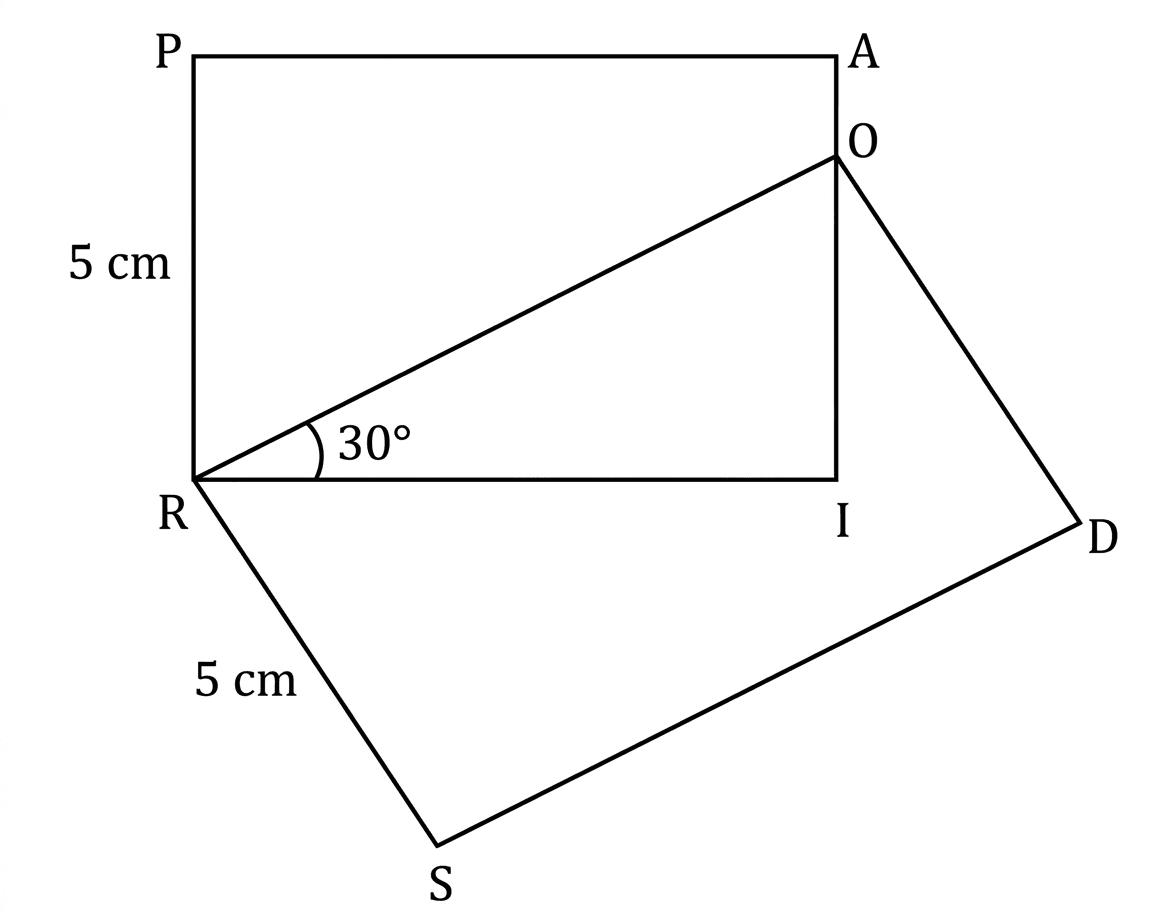

If PAIR and RODS are two rectangles, find $\angle\text{IOD}$ .

Solution

We will use the properties of rectangles and the sum of angles in a triangle to find the required angle.

Step 1 — Understand the rectangle PAIR

We are told that PAIR is a rectangle. This means all its interior angles are right angles, which are $90^\circ$ . So, the angle at vertex I, $\angle AIR$ , is $90^\circ$ . Since point O lies on the line segment AI, the angle $\angle RIO$ is also $90^\circ$ . This tells us that triangle RIO is a right-angled triangle (a triangle with one $90^\circ$ angle).

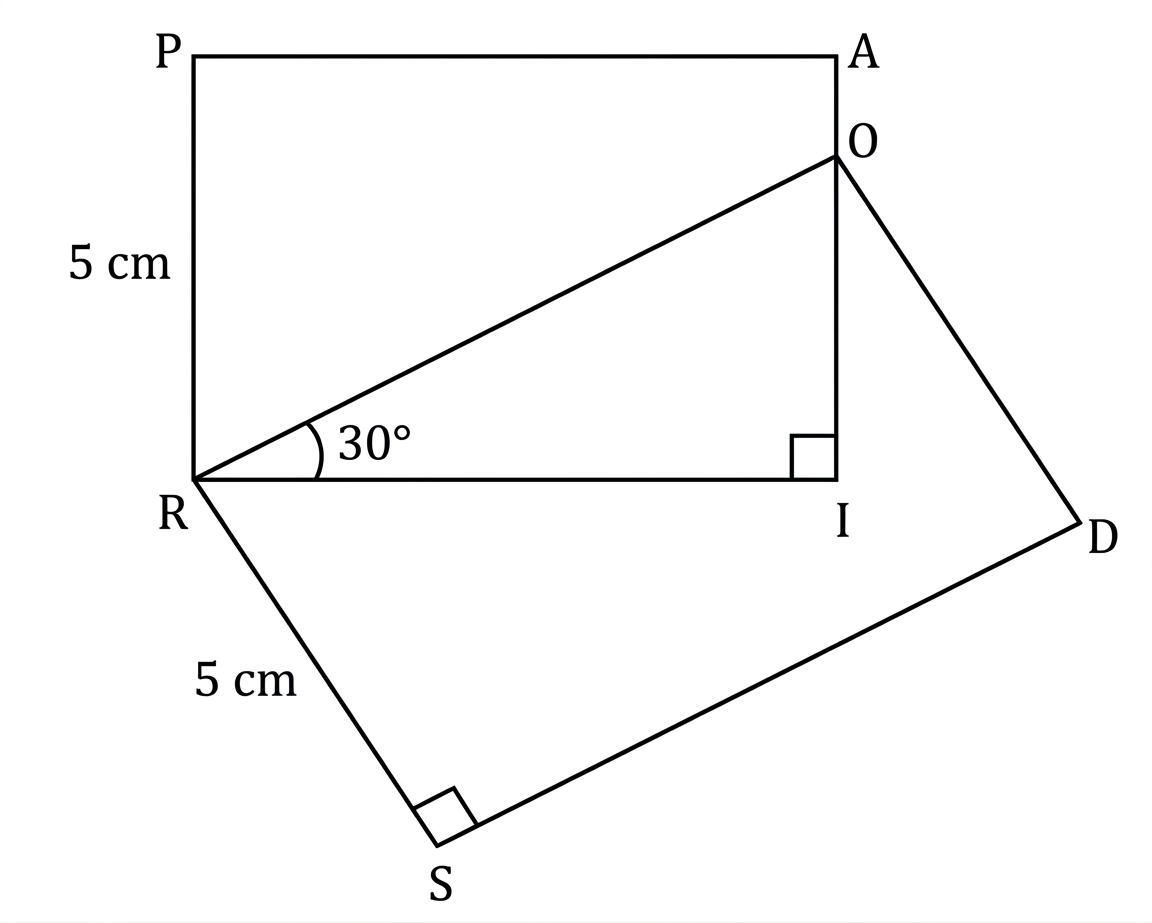

Diagram 1

Step 2 — Find angle ROI

In any triangle, the sum of all three interior angles is always $180^\circ$ . For our triangle RIO, we know two angles: $\angle RIO = 90^\circ$ and $\angle ORI = 30^\circ$ . Let us find the third angle, $\angle ROI$ .

$\angle RIO + \angle ORI + \angle ROI = 180^\circ$

$90^\circ + 30^\circ + \angle ROI = 180^\circ$

$120^\circ + \angle ROI = 180^\circ$

$\angle ROI = 180^\circ - 120^\circ$

$\boxed{60^\circ}$

Step 3 — Understand the rectangle RODS

We are also told that RODS is a rectangle. Just like PAIR, all interior angles of rectangle RODS are $90^\circ$ . So, the angle at vertex O, $\angle ROD$ , is $90^\circ$ .

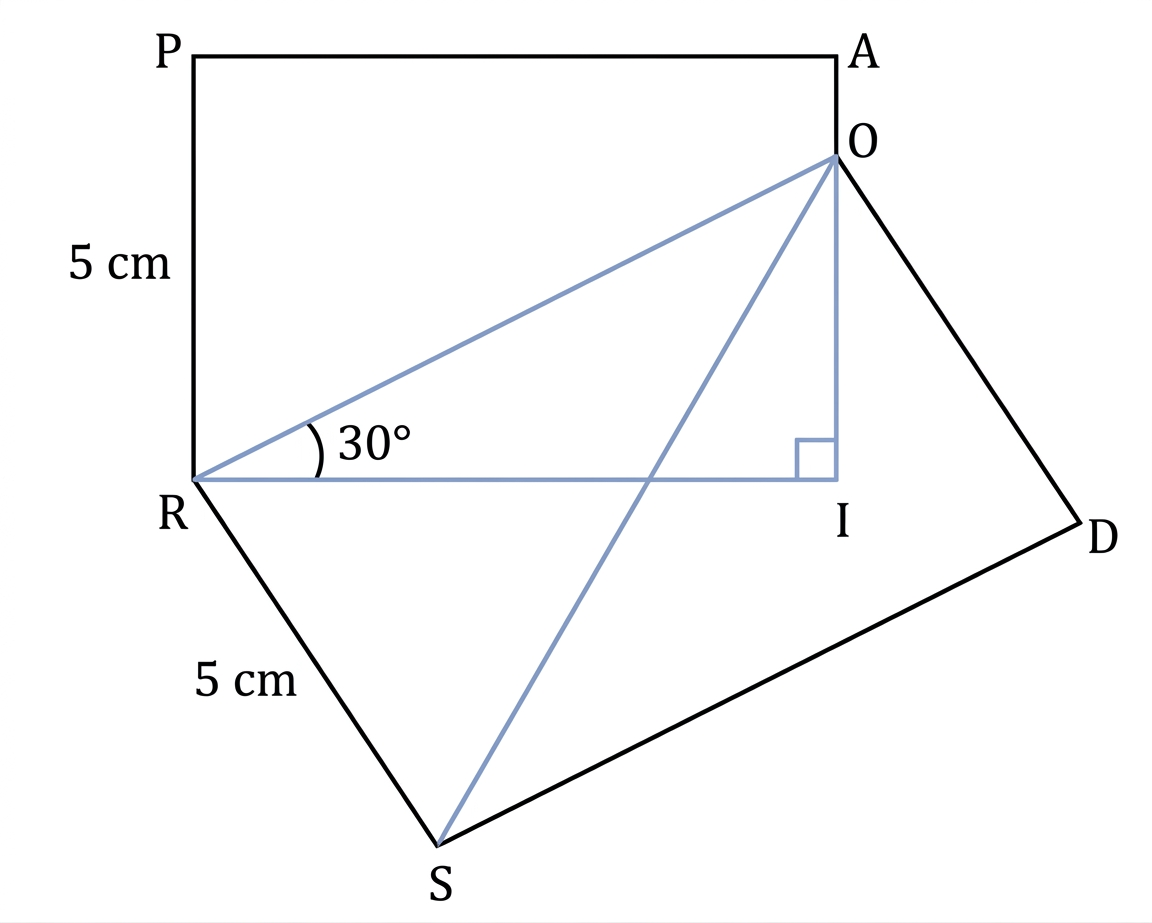

Diagram 2

Step 4 — Find angle IOD

From the diagram, we can see that the angle $\angle ROD$ is made up of two smaller angles: $\angle ROI$ and $\angle IOD$ . So, we can write:

$\angle ROD = \angle ROI + \angle IOD$

We know that $\angle ROD = 90^\circ$ (from Step 3) and we found $\angle ROI = 60^\circ$ (from Step 2). Let us substitute these values into the equation.

$90^\circ = 60^\circ + \angle IOD$

To find $\angle IOD$ , we subtract $60^\circ$ from both sides.

$\angle IOD = 90^\circ - 60^\circ$

$\boxed{30^\circ}$

Answer

(i) $\angle\text{IOD} = \mathbf{30^\circ}$
