Question 19
In addition to the 5 ways shown in Fig. 4.8, are there any additional ways of gluing four cubes together along faces? Can you visualise and draw these as well?
We need to find all unique shapes formed by connecting four squares edge-to-edge. These shapes are called tetrominoes. We will consider shapes that are reflections of each other as distinct if they cannot be rotated to match.
Step 1 — Understand the problem
The problem asks us to find if there are more ways to arrange four squares (representing cubes) connected along their edges (faces), beyond the five shown in Fig. 4.8. We are also asked to draw these additional shapes. When we consider reflections as distinct, there are more unique arrangements.
Step 2 — Identify the given shapes

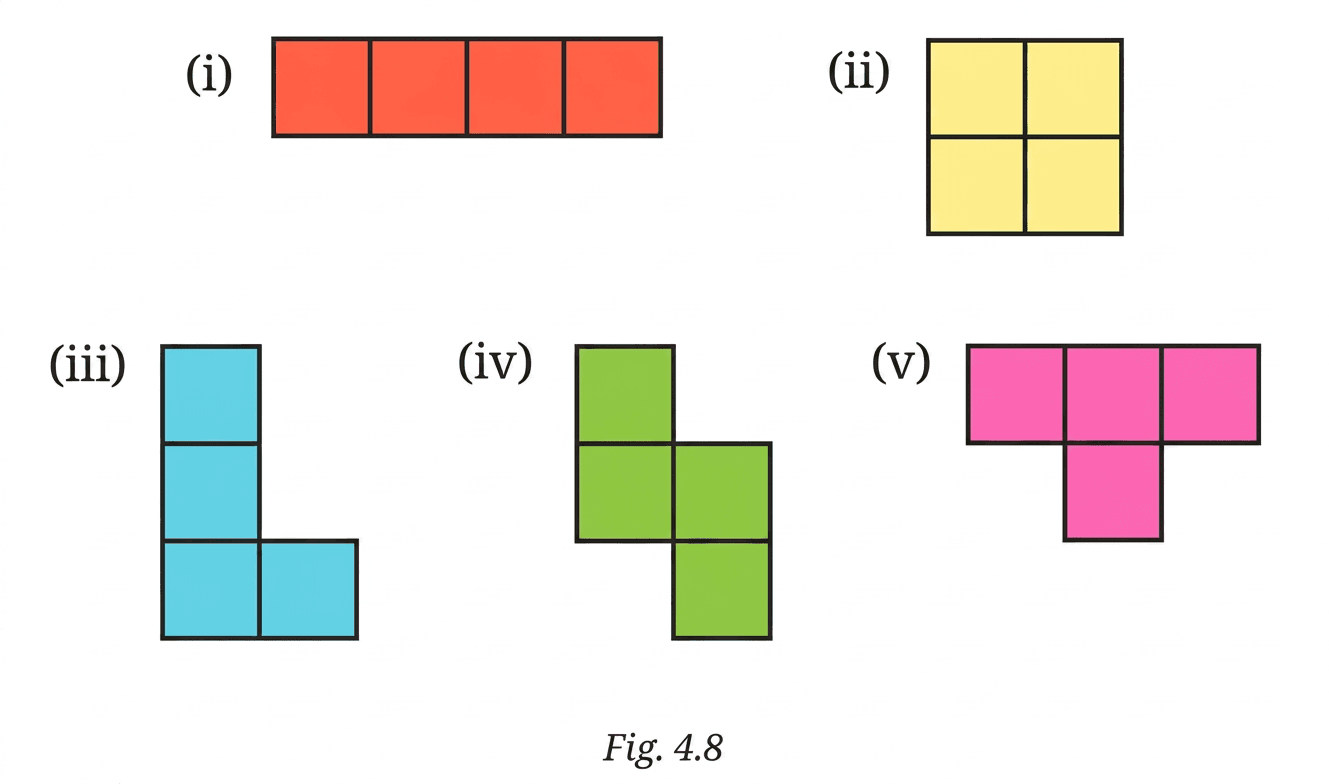

The five shapes shown in Fig. 4.8 are: (i) A straight line of four squares. This is called an I-tetromino. (ii) A 2x2 square. This is called an O-tetromino. (iii) An L-shaped arrangement. This is called an L-tetromino. (iv) A Z-shaped arrangement. This is called an S-tetromino. (v) A T-shaped arrangement. This is called a T-tetromino.
Step 3 — Find the additional shapes
There are a total of seven unique arrangements of four squares when reflections are considered distinct. Since five shapes are already shown in Fig. 4.8, there must be two additional shapes. These two additional shapes are the reflections of the L-tetromino (shape (iii)) and the S-tetromino (shape (iv)). The reflection of the L-tetromino is commonly called the J-tetromino. The reflection of the S-tetromino is commonly called the Z-tetromino. These reflected shapes cannot be rotated to perfectly match the original L or S shapes.
Step 4 — Visualise and draw the additional shapes
The L-tetromino (shape (iii)) is: Its reflection, the J-tetromino, is: The S-tetromino (shape (iv)) is: Its reflection, the Z-tetromino, is:
Answer

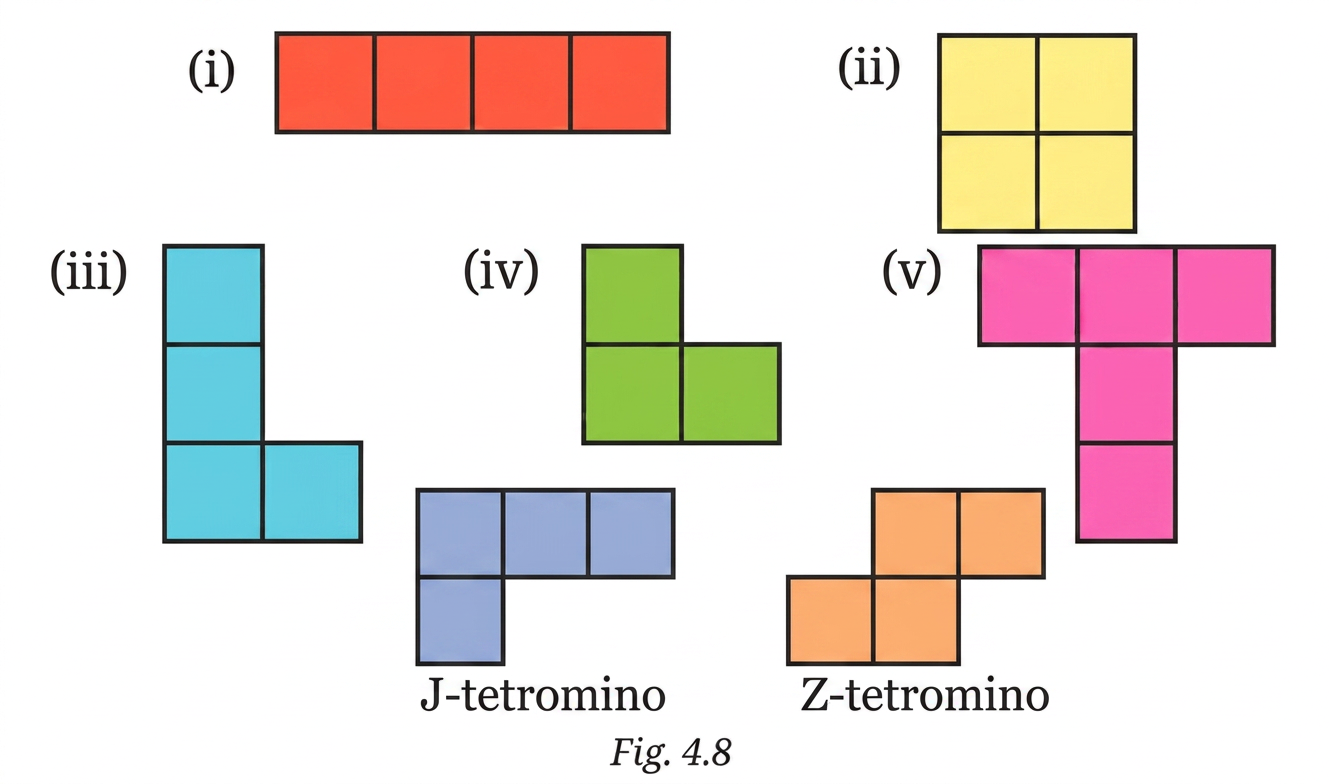

Yes, there are two additional ways of gluing four cubes together along faces, considering reflections as distinct shapes. These are:
(i) The J-tetromino (a reflected L-shape).
# # ##(ii) The Z-tetromino (a reflected S-shape).
## ##
