Question 13

Observe the following figures.

Figs. (i), (ii), and (iii) are quadrilaterals, and the others are not. Why?

Are there other ways to define a rectangle?

A Carpenter's Problem

A carpenter needs to put together two thin strips of wood, as shown in Fig. 1, so that when a thread is passed through their endpoints, it forms a rectangle. She already has one 8 cm long strip. What should be the length of the other strip? Where should they both be joined?

Let us first model the structure that the carpenter has to make. The strips can be modelled as line segments. They are the diagonals of the quadrilateral formed by their endpoints. For the quadrilateral to be a rectangle, we need to answer the following questions —

1. What is the length of the other diagonal?
2. What is the point of intersection of the two diagonals?
3. What should the angle be between the diagonals?

Can the following equalities be used to establish that $\Delta AOD \cong \Delta COB$?

• $AO = CO$ (proved above)
• $\angle AOB = \angle COD$ (vertically opposite angles)
• $AD = CB$

Context: Let us check what quadrilateral we get if we draw the two diagonals such that their lengths are equal, they bisect each other and have an arbitrary angle, say $60^\circ$, between them as shown in the figure to the right.

Q. Can you find all the remaining angles?

Context: In $\Delta AOB$, since $OA = OB$, the angles opposite them are equal, say $a$.

Q. Can you find the value of $a$?

Can we now identify what type of quadrilateral ABCD is?

Notice that its angles all add up to 90° (30° + 60°).

What can we say about its sides?

Will ABCD remain a rectangle if the angles between the diagonals are changed? Can we generalise this?

Take one of the angles between the diagonals as $x$.

Context: We can compute the four angles between the diagonals to be $x, x, 180 - x,$ and $180 - x.$

Q. Can you find the other angles?

Context: Since we know that $\Delta AOB$ is isosceles, we can denote the measures of both of its base angles by $a$.

Q. What is the value of $a$ (in degrees) in terms of $x$?

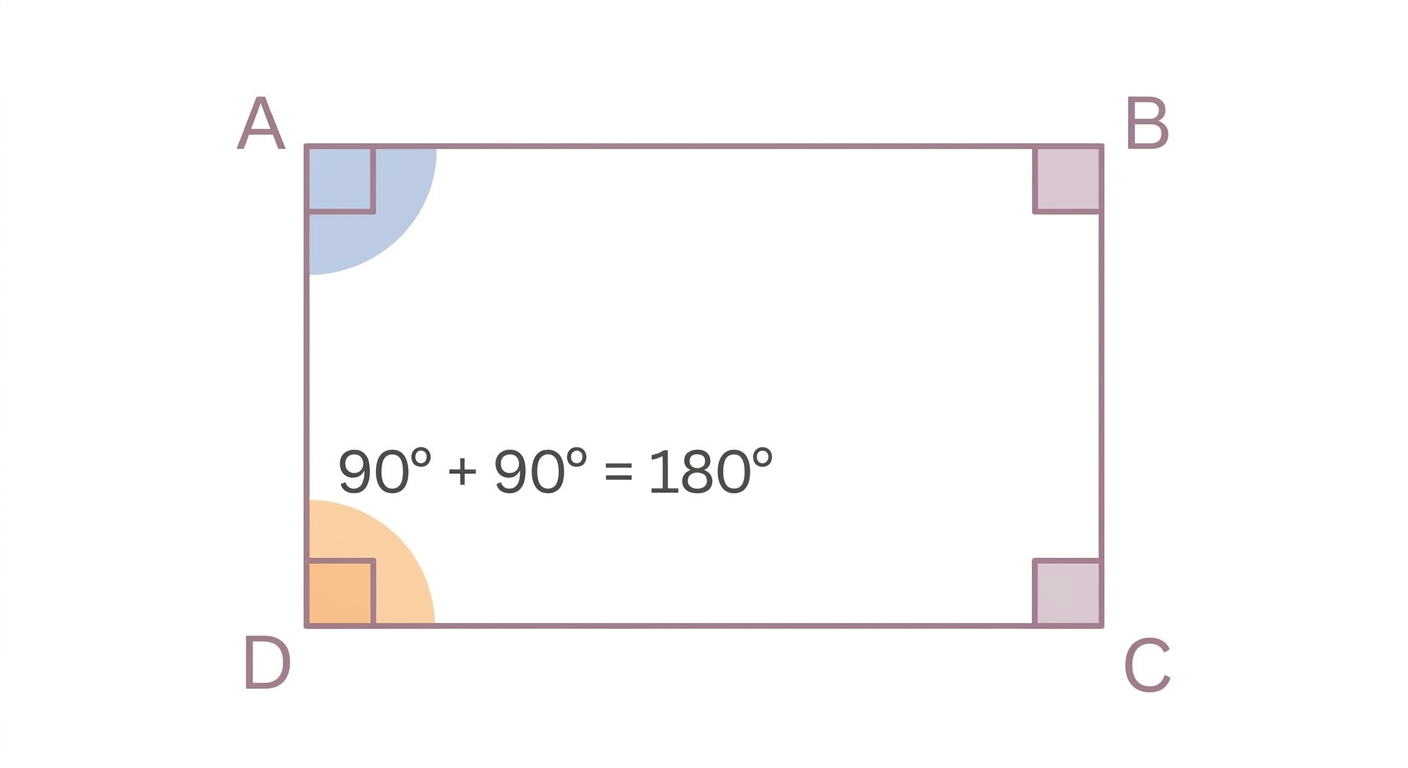

Context: Thus, all four angles of the quadrilateral ABCD are 90°.

Q. What can we say about AB and CD, and AD and BC?

If you think that this definition is incomplete, try constructing a quadrilateral in which the angles are all 90° but the opposite sides are not equal.

Are you able to construct such a quadrilateral?

Is it wrong to write ΔBAD ≅ ΔCDB? Why?

Can you similarly show that AB is parallel to DC (AB || DC)?

In the quadrilaterals below, are there any non-rectangles?

Let us consider the Carpenter's Problem again. If the wooden strips have to be placed such that the thread passing through their endpoints forms a square, what must be done?

What more needs to be done to get equal sidelengths as well? Can this be achieved by properly choosing the angle between the diagonals? See if you can reason and/or experiment to figure this out!

Can this be used to find the angles $\angle\text{BOA}$ and $\angle\text{BOC}$ formed by the diagonals?

Context: The diagonals of a square are of equal lengths and bisect each other at right angles.

Q. Using this fact, construct a square with a diagonal of length 8 cm.

Context: Since a square is a special type of rectangle, all the properties of a rectangle hold true for a square.

Q. Verify if this is true by going through geometric reasoning in Deduction 1 and Deduction 2, and see if they apply to a square as well.

Q. Similarly, find $\angle 2$ and $\angle 4$.

4.2 Angles in a Quadrilateral

Is it possible to construct a quadrilateral with three angles equal to 90° and the fourth angle not equal to 90°?

But why not?

Are there quadrilaterals that have parallel opposite sides that are not rectangles?

Construct such a figure by recalling how parallel lines can be constructed using a ruler and a set-square, or a compass and a ruler.

Context: Consider a parallelogram $ABCD$ with adjacent sides of lengths $4\text{ cm}$ and $5\text{ cm}$, and an angle of $30^\circ$ between them.

Q. What are the remaining angles of the parallelogram? What are the lengths of the remaining sides? See if you can reason out and/or experiment to figure these out.

Deduction 7— What can we say about the sides of a parallelogram?

By looking at a parallelogram, it appears that the opposite sides are equal. Can we again use congruence to show this? Which two triangles can be considered for this?

Is it wrong to write $\Delta\text{ABD} \cong \Delta\text{CBD}$? Why?

Are the diagonals of a parallelogram always equal? Check with the parallelogram that you have constructed.

Context: We see that the diagonals of a parallelogram need not be equal.

Q. Do they bisect each other (do they intersect at their midpoints)? Reason and/or experiment to figure this out.

Is it wrong to write $\Delta\text{AOE} \cong \Delta\text{SOY}$? Why?

Do the diagonals of a parallelogram intersect at a particular angle?

What are the other angles of the rhombus ABCD that we have constructed? Reason and/or experiment to figure this out.

It can be seen that $\Delta GAE \cong \Delta MAE$ (How?)

So a rhombus is a parallelogram, and a rectangle is also a parallelogram. How can this be represented using a Venn diagram?

Where will the set of squares occur in this diagram?

Are the diagonals of a rhombus equal?

Do the diagonals of a rhombus intersect at any particular angle? Reason out and/or experiment to figure this out!

In the rhombus GAME, we have $\Delta\text{GEO} \cong \Delta\text{MEO}$ (why?).

In the kite, show that the diagonal $BD$

(i) bisects $\angle ABC$ and $\angle ADC$,

(ii) bisects the diagonal $AC$, that is, $AO = OC$, and is perpendicular to it.

Hint: Is $\Delta AOB \cong \Delta COB$?

Construct a trapezium. Measure the base angles (marked in the figure).

Can you find the remaining angles without measuring them?

How do we construct an isosceles trapezium?

Construct an isosceles trapezium UVWX, with UV || XW. Measure ∠U.

Now, it can be shown that $\Delta\text{UXY} \cong \Delta\text{VWZ}$. (How?)
