Question 2

Are there other ways to define a rectangle?

Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

A rectangle can be defined in multiple ways, all describing the same geometric shape.

Step 1 — Rectangle as a special type of parallelogram

Let us first remember what a parallelogram is. A parallelogram is a quadrilateral where opposite sides are parallel. Its opposite angles are equal. Its consecutive angles add up to 180 degrees.

A rectangle is a parallelogram where all its interior angles are right angles. This means each of its four angles measures 90 degrees.

Step 2 — Parallelogram with just one right angle

Let us consider a parallelogram. If even one of its interior angles is a right angle (90 degrees). We know that consecutive angles in a parallelogram are supplementary. This means they add up to 180 degrees. So, if one angle, say angle A, is 90 degrees. Then the angle next to it, angle B, must be 180∘−90∘=90∘180^\circ - 90^\circ = 90^\circ. Also, opposite angles in a parallelogram are equal. So, if angle A is 90 degrees, then angle C (opposite to A) is also 90 degrees. And if angle B is 90 degrees, then angle D (opposite to B) is also 90 degrees. This shows that all four angles become 90 degrees. Therefore, a parallelogram with at least one right angle is a rectangle.

Step 3 — Quadrilateral with special diagonals

Let us consider any quadrilateral. If its two diagonals are equal in length. And if these diagonals bisect each other (cut each other into two equal parts). When the diagonals of a quadrilateral bisect each other, the quadrilateral is always a parallelogram. Now we have a parallelogram where the diagonals are equal. Let the parallelogram be ABCD, with diagonals AC and BD. If diagonal AC has the same length as diagonal BD. Let us look at two triangles: triangle DAB and triangle CDA. Side AD is common to both triangles. Side AB is equal to side CD (because opposite sides of a parallelogram are equal). Diagonal BD is equal to diagonal AC (this is our given condition). So, triangle DAB is congruent to triangle CDA (by the SSS congruence rule). This means their corresponding angles are equal. So, angle DAB must be equal to angle CDA. We also know that consecutive angles in a parallelogram add up to 180 degrees. So, angle DAB + angle CDA = 180 degrees. Since angle DAB = angle CDA, each must be 180∘/2=90∘180^\circ / 2 = 90^\circ. As we saw in Step 2, if one angle of a parallelogram is 90 degrees, all its angles are 90 degrees. So, a quadrilateral whose diagonals are equal and bisect each other is a rectangle.

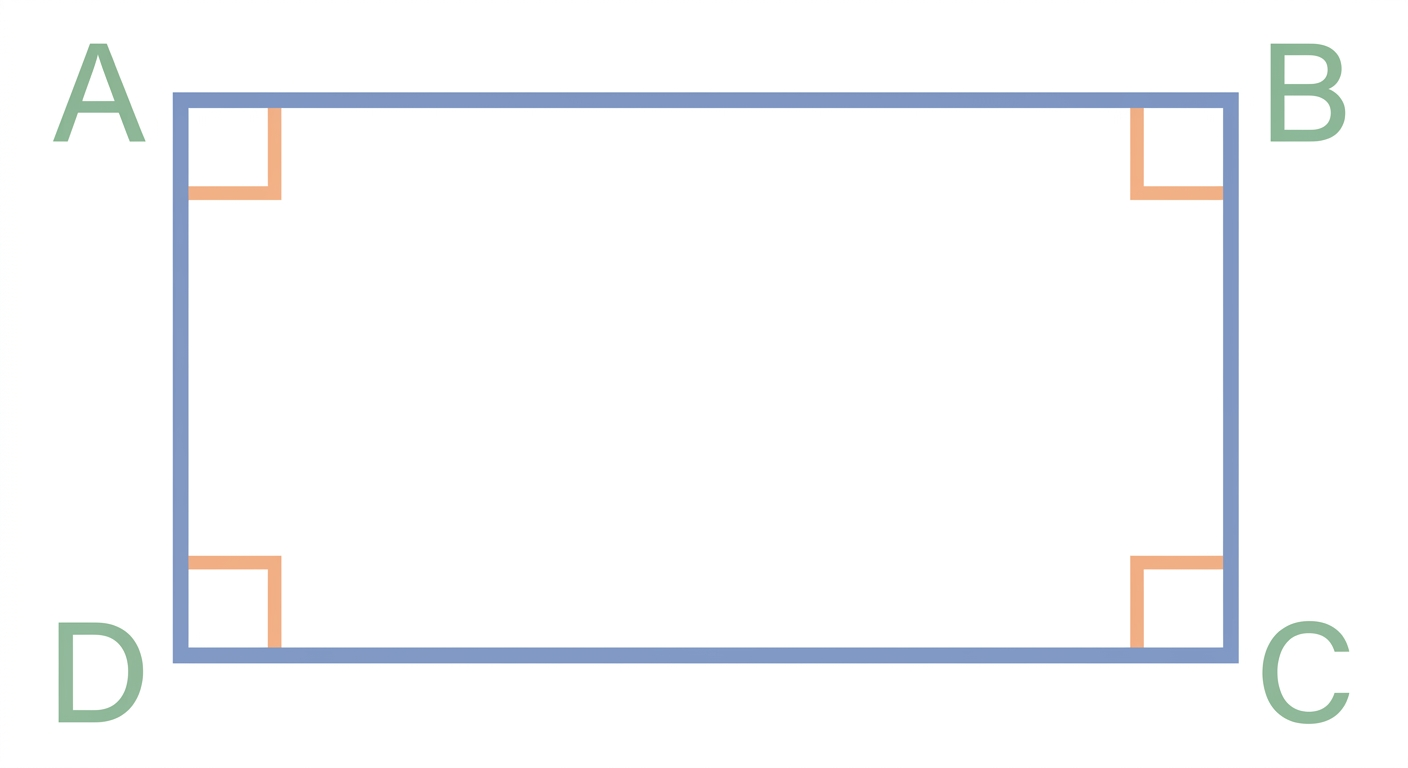

Diagram 1

Step 4 — Quadrilateral with opposite sides equal and one right angle

Let us consider a quadrilateral. If its opposite sides are equal in length. This property means that the quadrilateral is a parallelogram. Now we have a parallelogram that also has one right angle. This is the exact situation we explained in Step 2. If a parallelogram has one right angle, then all its angles become 90 degrees. So, a quadrilateral with opposite sides equal and one right angle is a rectangle.

Answer

Yes. There are other ways to define a rectangle, even though they must mean the same thing.

(i) Definition (using parallelogram idea): A rectangle is a parallelogram whose all angles are right angles. (ii) Definition (using one right angle): A parallelogram with even one right angle is a rectangle (because if one angle is 90°, all others automatically become 90°). (iii) Definition (using diagonals): A quadrilateral whose diagonals are equal and bisect each other is a rectangle. (iv) Definition (opposite sides equal + right angle): A quadrilateral with opposite sides equal and one right angle is a rectangle.
