Quadrilaterals | IT

Question 10

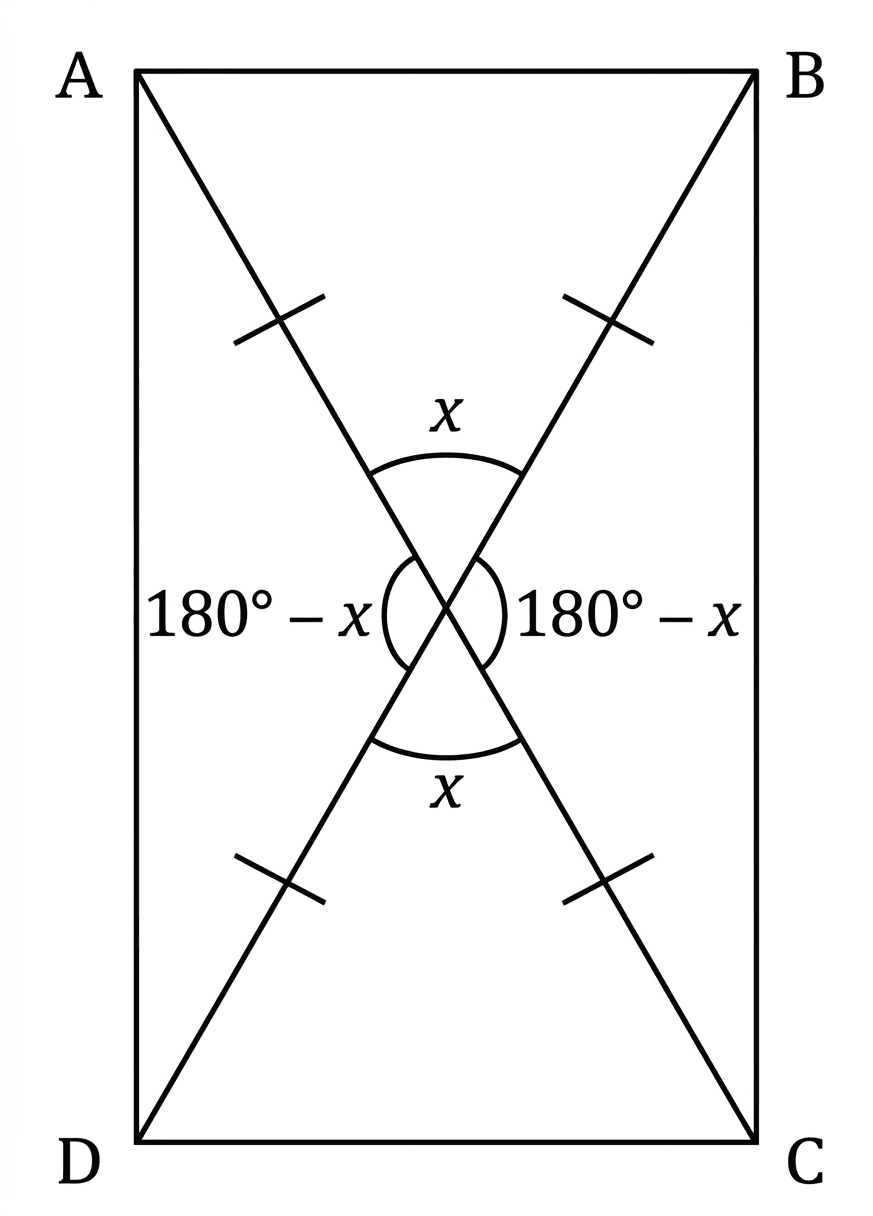

Context: We can compute the four angles between the diagonals to be $x, x, 180 - x,$ and $180 - x.$

Q. Can you find the other angles?

Solution

The diagonals of a rectangle are equal in length and bisect each other, forming four isosceles triangles.

Step 1 — Identify Isosceles Triangles

Let O be the point where the diagonals AC and BD intersect. In a rectangle, the diagonals are equal in length. Also, the diagonals bisect each other. So, we have $AO = OC$ and $BO = OD$ . Since $AC = BD$ , it means that all four segments are equal: $AO = OB = OC = OD$ . This tells us that the four triangles formed by the diagonals are isosceles triangles. These triangles are $\triangle AOB$ , $\triangle BOC$ , $\triangle COD$ , and $\triangle DOA$ .

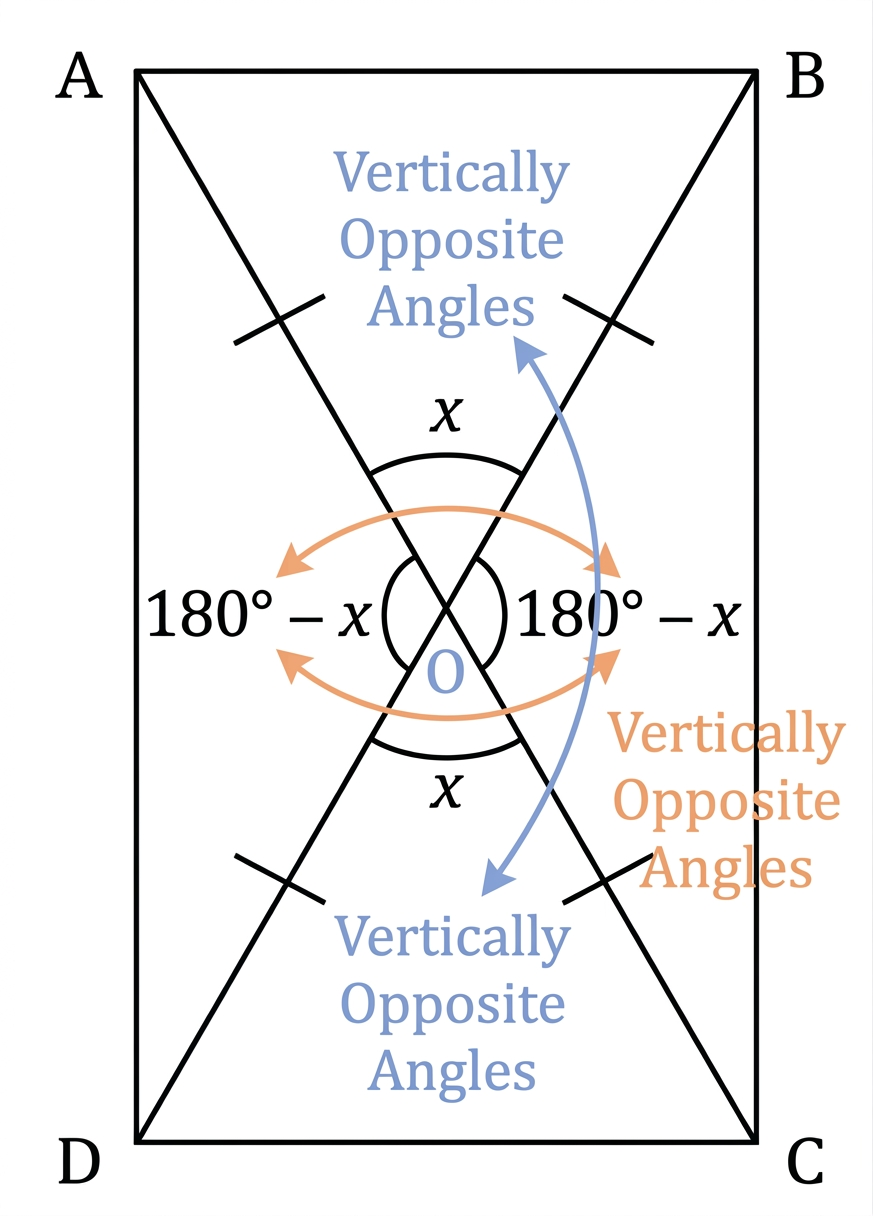

Diagram 1

Step 2 — Find Angles in Triangles with Angle $x$

Consider $\triangle AOB$ . Since $AO = OB$ , $\triangle AOB$ is an isosceles triangle. The angle $\angle AOB = x$ is given. The sum of angles in any triangle is $180^\circ$ . So, we can write: $\angle OAB + \angle OBA + \angle AOB = 180^\circ$ Because $\triangle AOB$ is isosceles, its base angles are equal: $\angle OAB = \angle OBA$ . Let us call these angles $\alpha$ . $2\alpha + x = 180^\circ$ Now, we solve for $\alpha$ : $2\alpha = 180^\circ - x$ $\alpha = \frac{180^\circ - x}{2}$ $= 90^\circ - \frac{x}{2}$

$\boxed{\angle OAB = \angle OBA = 90^\circ - \frac{x}{2}}$ Similarly, for $\triangle COD$ : $\angle COD = x$ (these are vertically opposite angles to $\angle AOB$ ). Since $OC = OD$ , $\triangle COD$ is also an isosceles triangle. So, its base angles are equal: $\angle OCD = \angle ODC$ . Following the same calculation: $\boxed{\angle OCD = \angle ODC = 90^\circ - \frac{x}{2}}$

Step 3 — Find Angles in Triangles with Angle $180^\circ - x$

Consider $\triangle BOC$ . Since $OB = OC$ , $\triangle BOC$ is an isosceles triangle. The angle $\angle BOC = 180^\circ - x$ is given. The sum of angles in any triangle is $180^\circ$ . So, we can write: $\angle OBC + \angle OCB + \angle BOC = 180^\circ$ Because $\triangle BOC$ is isosceles, its base angles are equal: $\angle OBC = \angle OCB$ . Let us call these angles $\beta$ . $2\beta + (180^\circ - x) = 180^\circ$ Now, we solve for $\beta$ : $2\beta = 180^\circ - (180^\circ - x)$ $2\beta = x$ $\beta = \frac{x}{2}$

$\boxed{\angle OBC = \angle OCB = \frac{x}{2}}$ Similarly, for $\triangle DOA$ : $\angle DOA = 180^\circ - x$ (these are vertically opposite angles to $\angle BOC$ ). Since $OD = OA$ , $\triangle DOA$ is also an isosceles triangle. So, its base angles are equal: $\angle ODA = \angle OAD$ . Following the same calculation: $\boxed{\angle ODA = \angle OAD = \frac{x}{2}}$

Step 4 — Find the Angles of the Rectangle

The angles of the rectangle are formed by combining the angles we just found. For example, the angle at vertex A, $\angle DAB$ , is the sum of $\angle OAD$ and $\angle OAB$ . $\angle DAB = \angle OAD + \angle OAB$ $= \frac{x}{2} + (90^\circ - \frac{x}{2})$ $= 90^\circ$ Let us check the other angles: $\angle ABC = \angle OBA + \angle OBC$ $= (90^\circ - \frac{x}{2}) + \frac{x}{2}$ $= 90^\circ$ $\angle BCD = \angle OCB + \angle OCD$ $= \frac{x}{2} + (90^\circ - \frac{x}{2})$ $= 90^\circ$ $\angle CDA = \angle ODC + \angle ODA$ $= (90^\circ - \frac{x}{2}) + \frac{x}{2}$ $= 90^\circ$

$\boxed{\text{Each interior angle of the rectangle is } 90^\circ}$

Answer

(i) The angles formed by the diagonals with the sides, which are $\angle OAD$ , $\angle ODA$ , $\angle OBC$ , and $\angle OCB$ , are all equal to $\frac{x}{2}$ . (ii) The other angles formed by the diagonals with the sides, which are $\angle OAB$ , $\angle OBA$ , $\angle OCD$ , and $\angle ODC$ , are all equal to $90^\circ - \frac{x}{2}$ . (iii) The interior angles of the rectangle, $\angle DAB$ , $\angle ABC$ , $\angle BCD$ , and $\angle CDA$ , are all equal to $90^\circ$ .
