Question 31

When is the length of the projected line equal to its actual length?

Solution

The projected line's length depends on its angle to the surface.

Step 1 — Understanding Line Projection

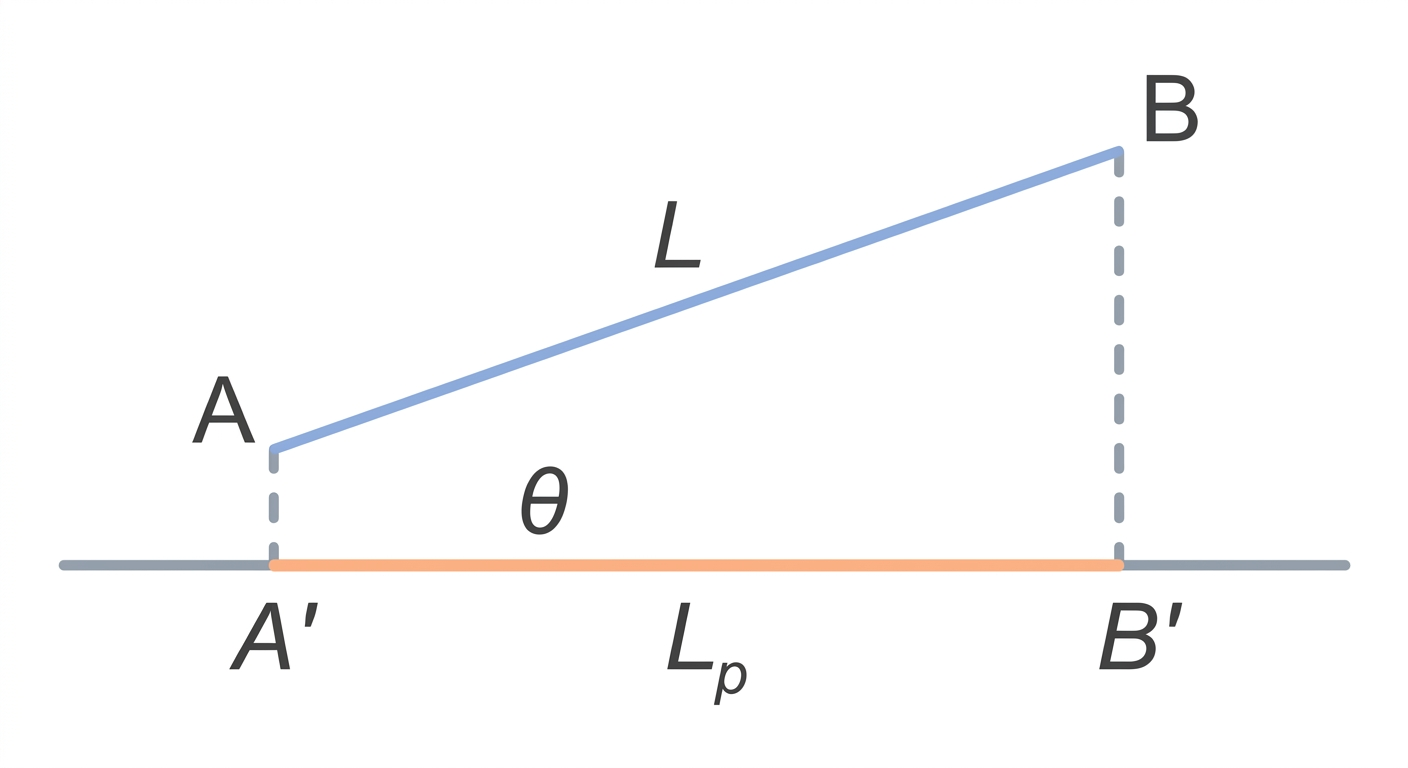

Let us imagine a line segment AB. Its length is $L$ . We project this line onto another line or a flat surface. Think of it as the shadow of the line segment. Let $\theta$ be the angle between the line segment and the surface. The length of this shadow is called the projected length, $L_p$ . We can find $L_p$ using trigonometry. The formula for projected length is:

$L_p = L \cos \theta$

Diagram 1

Step 2 — Finding the Condition for Equal Lengths

We want the projected length to be equal to the actual length. So, we set $L_p$ equal to $L$ . Let us use the formula from Step 1.

$L_p = L$

We know $L_p = L \cos \theta$ . So, we can write:

$L \cos \theta = L$

Now, we can divide both sides by $L$ . (We assume $L$ is not zero).

$\cos \theta = \frac{L}{L}$

$\cos \theta = 1$

We need to find the angle $\theta$ for which $\cos \theta$ is 1. From trigonometry, we know that:

$\theta = 0^\circ$

This means the line segment must be parallel to the surface. When the line is parallel, its "shadow" is exactly the same length.

$\boxed{\text{When the line is parallel to the projection surface.}}$

Answer

(i) It is equal when the line is parallel to the projection surface.
