Question 20
Taking all the triangles in the net to be equilateral, make a cutout of the net and fold it to form an octahedron.
An octahedron is a three-dimensional solid shape with eight faces, twelve edges, and six vertices. Each face of a regular octahedron is an equilateral triangle.
Step 1 — Understanding the Octahedron Net
To form an octahedron, we need a net that consists of eight equilateral triangles. This is because an octahedron can be visualized as two square pyramids joined at their bases. Each square pyramid has 4 triangular faces and a square base. When two such pyramids are joined, their square bases merge. This results in a solid with 8 triangular faces in total.
Step 2 — Cutting and Folding the Net

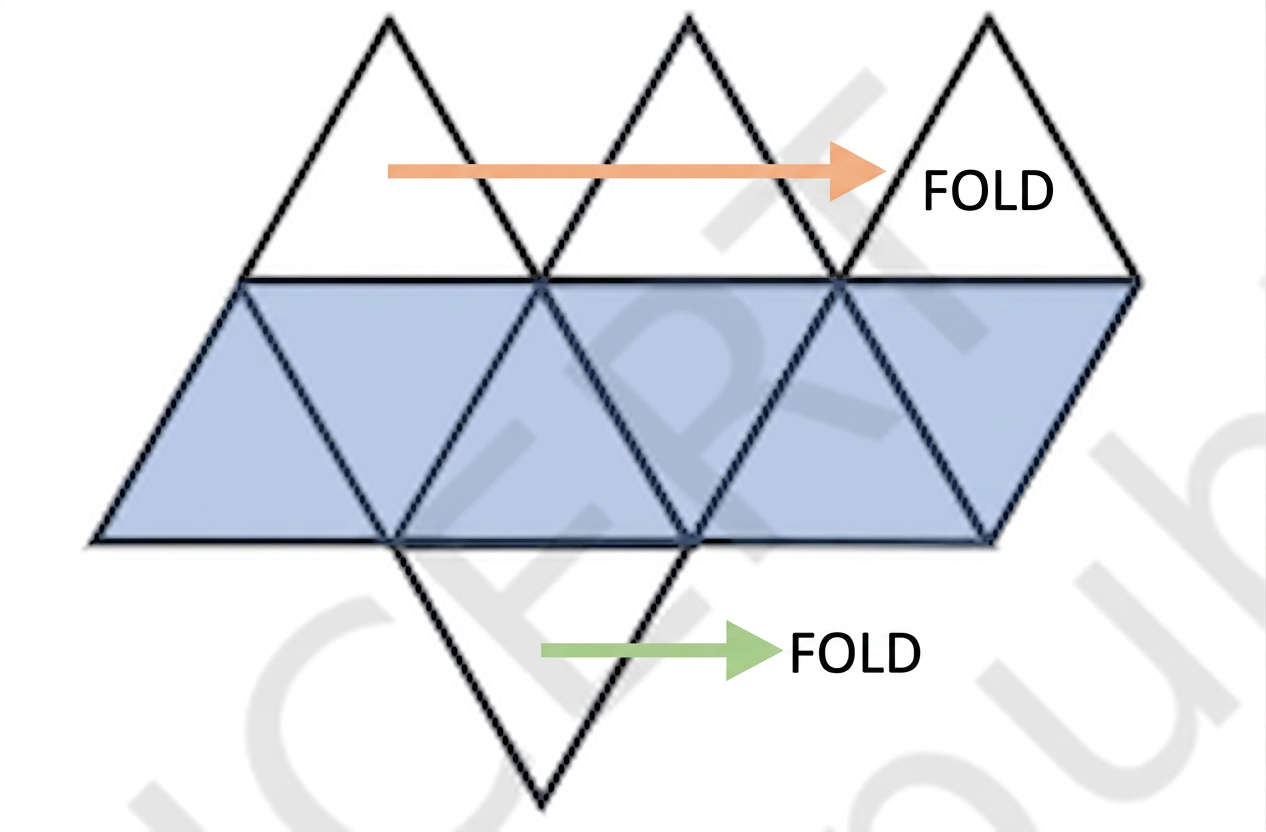

First, carefully cut out the entire shape of the net along its outer edges. Next, fold along all the interior lines, which are the common edges between the triangles. Imagine the central row of four triangles as forming the "equator" or the middle section of the octahedron. The four triangles attached above this central row will form the top pyramid. The four triangles attached below this central row will form the bottom pyramid. Fold the four top triangles upwards so their free edges meet at a single point (the top apex). Similarly, fold the four bottom triangles downwards so their free edges meet at another single point (the bottom apex). Finally, join the corresponding free edges of the two pyramids to complete the octahedron. Carefully glue or tape the meeting edges together to form the three-dimensional shape.
Answer
(i) An octahedron is a solid with 8 equilateral triangular faces. (ii) To form an octahedron, cut out a net consisting of 8 equilateral triangles (as described in Step 1). (iii) Fold the central row of four triangles to form the middle section. Then, fold the four top triangles to form one pyramid and the four bottom triangles to form the other. Join the free edges to complete the octahedron.
