Question 10

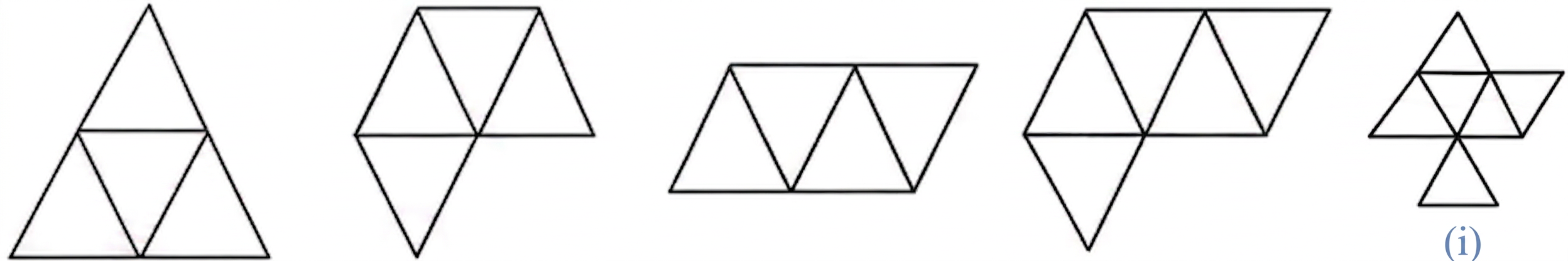

What is a net of a regular tetrahedron? Which of the following are nets of a regular tetrahedron?
A net is a flat shape that we can fold to make a 3D object.
Step 1 — Understanding a Tetrahedron Net
A regular tetrahedron is a 3D shape. It has four faces. Each face is an equilateral triangle. So, a net of a regular tetrahedron must have four equilateral triangles. When we fold the net, all edges must meet perfectly. Also, three triangles must meet at each corner of the tetrahedron.
Step 2 — Analyzing Figure (i)

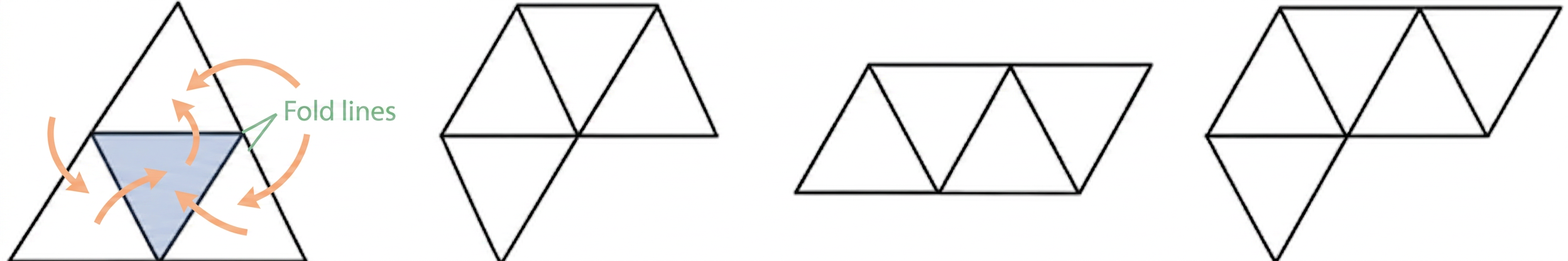

Let us look at the first figure. It has four equilateral triangles. One triangle is in the middle. Three other triangles are around it. We can think of the central triangle as the base. The three outer triangles can be folded upwards. They will meet at a single point at the top. This forms a complete tetrahedron.
(i) is a net of a regular tetrahedron.
Step 3 — Analyzing Figure (ii)
Now, let us examine the second figure. It also has four equilateral triangles. They are arranged in a line. One extra triangle is attached to the side. Let us try to fold it. If we pick one triangle as the base, say the second one from the left. The first triangle folds up. The third triangle also folds up. The fourth triangle is attached to the third. When we fold the third triangle up, the fourth triangle moves with it. The first and fourth triangles are on opposite sides. They cannot meet at the same top point. This would leave a big gap or cause overlap. This shape cannot form a closed tetrahedron.
(ii) is not a net of a regular tetrahedron.
Step 4 — Analyzing Figure (iii)
Next, let us look at the third figure. This figure has four equilateral triangles. Three are in a row. The fourth one is attached to the middle triangle. We can choose the middle triangle of the row as the base. The triangle to its left folds up. The triangle to its right folds up. The fourth triangle (attached above the base) also folds up. All three upper triangles will meet at a single point at the top. This forms a complete tetrahedron.
(iii) is a net of a regular tetrahedron.
Step 5 — Analyzing Figure (iv)
Finally, let us check the fourth figure. It has four equilateral triangles. They are arranged in a zig-zag pattern. Let us try to fold this one. If we take the second triangle from the left as the base. The first triangle folds up. The third triangle folds up. The fourth triangle is attached to the third. Similar to figure (ii), the first and fourth triangles are positioned far apart. They cannot meet at a single top point. They would either leave a large opening or overlap. This shape cannot form a closed tetrahedron.
(iv) is not a net of a regular tetrahedron.
Answer
A net of a regular tetrahedron consists of four equilateral triangles that can be folded to form the 3D shape without gaps or overlaps.
(i) is a net of a regular tetrahedron. (ii) is not a net of a regular tetrahedron. (iii) is a net of a regular tetrahedron. (iv) is not a net of a regular tetrahedron.
