Question 13
Draw a net with appropriate measurements that can be folded into a square pyramid. Verify if it works by making an actual cutout.
A net is a flat shape that can be folded to make a three-dimensional object.
Step 1 — Understanding a Square Pyramid Net
Let us understand what a square pyramid is. It has a square base at the bottom. It also has four triangular faces. These four triangles meet at a single point called the apex. A net for a square pyramid will show all these faces laid out flat. It will consist of one square and four triangles. The four triangles will be attached to the sides of the square.
Step 2 — Choosing Appropriate Measurements
We need to choose a size for our square pyramid. Let us choose the side length of the square base. We will use a side length of 4 cm for the square. The four triangular faces must be isosceles triangles. This means two sides of each triangle are equal in length. The base of each triangle will be 4 cm, matching the square's side. We need to decide on the length of the two equal sides of these triangles. Let us choose these equal sides to be 6 cm long. This length will be the slant edge of our pyramid.
Step 3 — Drawing the Net

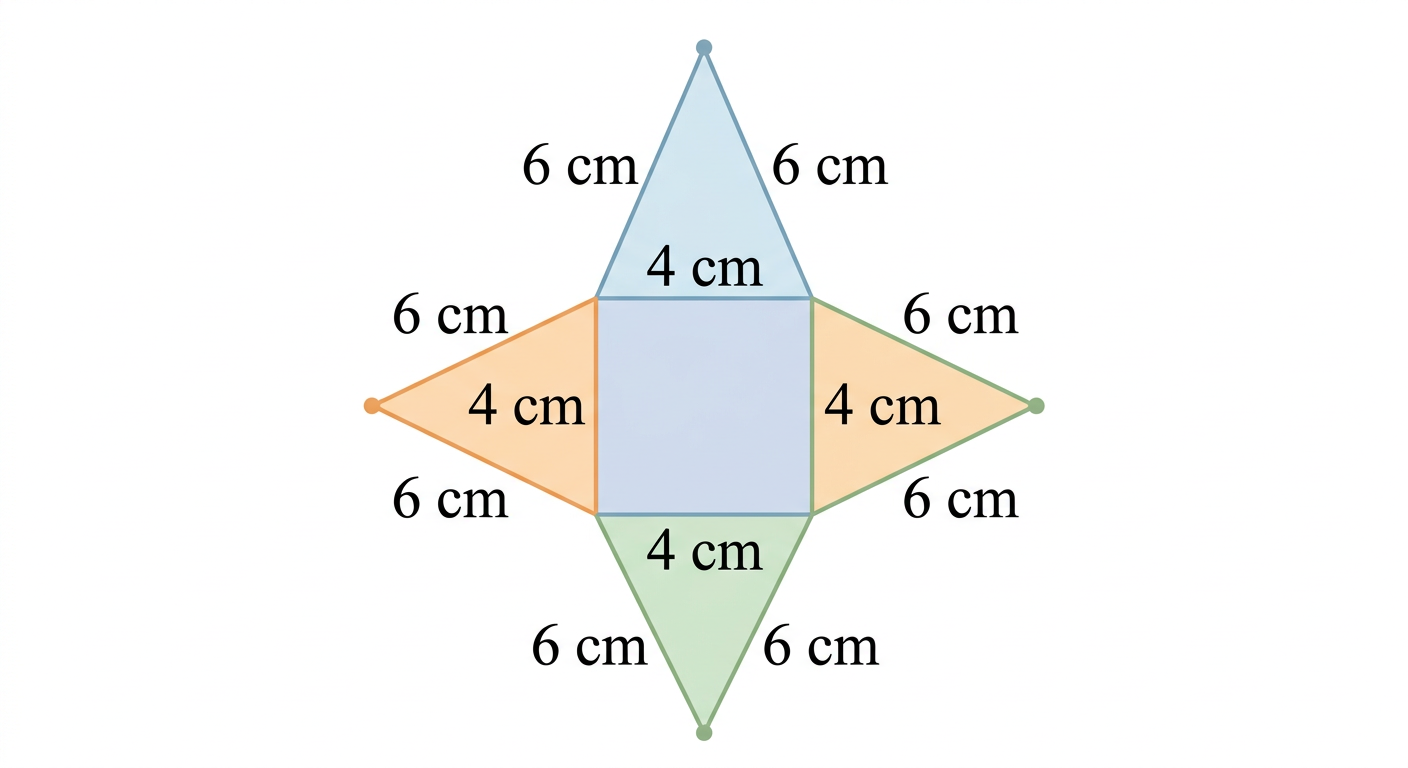

First, draw a square in the center of your paper. Its side length should be 4 cm. Now, on each of the four sides of this central square, draw an isosceles triangle. For each triangle, its base is the 4 cm side of the square. To draw one such triangle, place your compass point at one end of the 4 cm base. Open the compass to a radius of 6 cm. Draw an arc above the base. Repeat this from the other end of the 4 cm base. The point where the two arcs intersect is the top corner (apex) of the triangle. Connect this point to both ends of the 4 cm base. Repeat these steps for all four sides of the central square. You will now have a central square with four triangles attached to its sides.
Step 4 — Verifying the Net
To verify if the net works, we will perform a simple cutout and fold. Carefully cut out the entire shape you have drawn. Cut along all the outer edges of the net. These are the outer sides of the four triangles. Now, gently fold the paper along the inner lines. These inner lines are the sides of the central square. As you fold, the four triangular faces will rise upwards. The top corners of these four triangles will meet perfectly at a single point. This point is the apex of the pyramid. This action forms a complete square pyramid.
Answer
(i) To draw the net, first draw a central square with a side length of 4 cm. On each of the four sides of this square, draw an isosceles triangle. Each isosceles triangle should have a base of 4 cm (matching the square's side) and two equal sides of 6 cm. (ii) To verify, cut out the entire net along its outer edges. Fold the four triangles upwards along the sides of the central square. The top corners of the four triangles will meet at a single point, forming the apex of the square pyramid.
