Question 5

In this figure, if the sidelength of the square is doubled, what is the increase in the areas of the regions 1, 2 and 3? Give reasons.

Solution

We will first find the original areas of the three regions. Then, we will calculate their new areas when the square's side length is doubled. Finally, we will determine how much each area increases.

Step 1 — Define the square and its regions

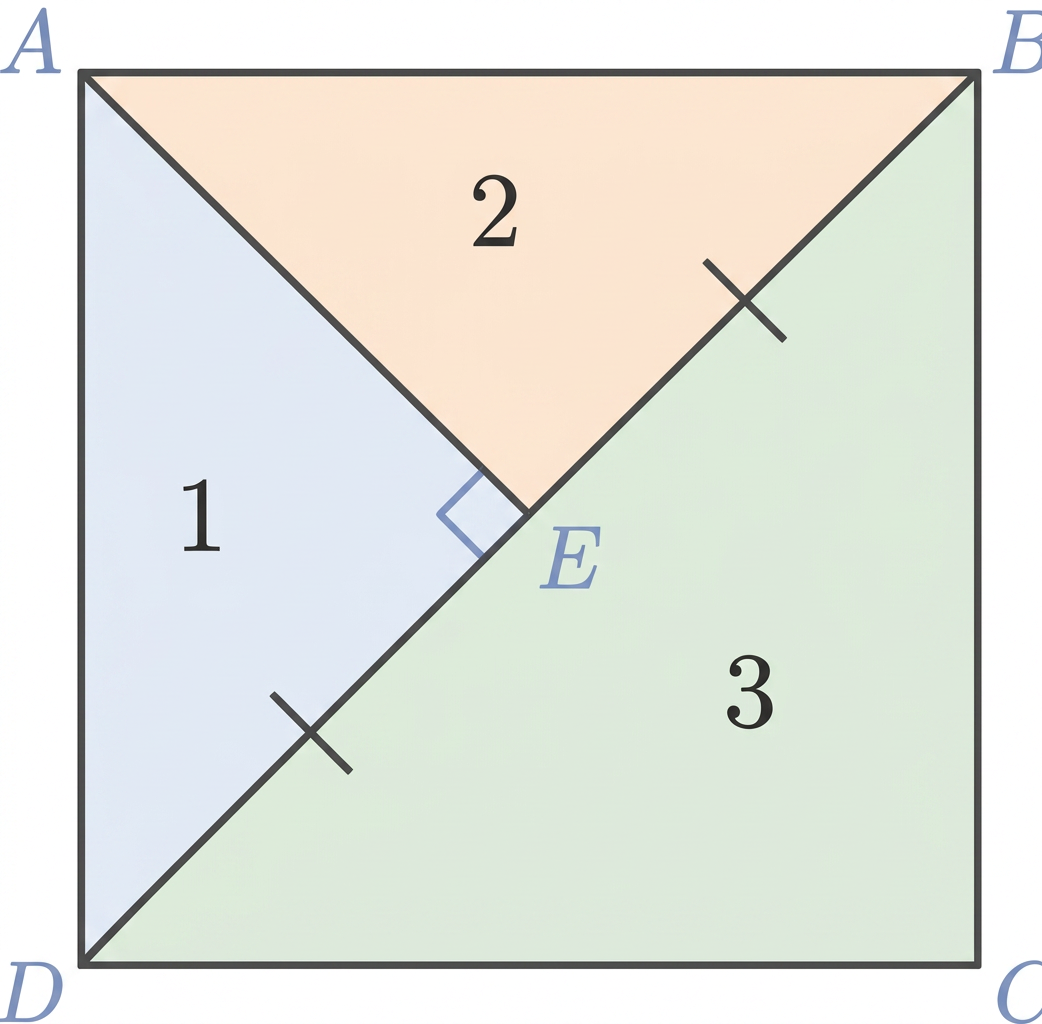

Let the side length of the original square be 'a' units. Let us name the vertices of the square. Let the top-left vertex be A, top-right be B, bottom-right be C, and bottom-left be D. The diagonal shown in the figure is BD. The line segment from vertex A meets the diagonal BD at point E. The marks on the diagonal BD tell us that point E is exactly in the middle of BD. This means E is the midpoint of BD. Also, the line segment AE is perpendicular to BD. Region 1 is the triangle AED. Region 2 is the triangle AEB. Region 3 is the triangle BCD.

Diagram 1

Step 2 — Calculate the original areas of the regions

Let us find the area of each region when the side length of the square is 'a'.

For Region 3 (Triangle BCD): This is a right-angled triangle. Its base is BC, and its height is CD. Both BC and CD are sides of the square, so their length is 'a'. Area of a triangle is half times base times height. $\text{Area of Region 3} = \frac{1}{2} \times \text{base} \times \text{height}$ $= \frac{1}{2} \times a \times a$ $= \frac{a^2}{2}$

$\boxed{\text{Original Area of Region 3} = \frac{a^2}{2} \text{ square units}}$

For Region 1 (Triangle AED) and Region 2 (Triangle AEB): First, we need to find the length of the diagonal BD. In the right-angled triangle BCD, we can use the Pythagoras theorem. $BD^2 = BC^2 + CD^2$ $BD^2 = a^2 + a^2$ $BD^2 = 2a^2$ To find BD, we take the square root of both sides. $BD = \sqrt{2a^2}$ $BD = a\sqrt{2}$ Since E is the midpoint of BD, we can find the lengths of DE and EB. $DE = EB = \frac{BD}{2}$ $DE = EB = \frac{a\sqrt{2}}{2}$ We can simplify this by writing $\sqrt{2}$ in the denominator. $DE = EB = \frac{a}{\sqrt{2}}$ Now, we need the length of AE. In a square, the diagonal divides it into two isosceles right-angled triangles (like triangle ABD). The line AE is the altitude from A to the hypotenuse BD. In such a triangle, the altitude to the hypotenuse is half the hypotenuse. So, AE is also half of BD. $AE = \frac{BD}{2}$ $AE = \frac{a\sqrt{2}}{2}$ $AE = \frac{a}{\sqrt{2}}$ Now we can calculate the area of Region 1 (Triangle AED). $\text{Area of Region 1} = \frac{1}{2} \times \text{base DE} \times \text{height AE}$ $= \frac{1}{2} \times \frac{a}{\sqrt{2}} \times \frac{a}{\sqrt{2}}$ $= \frac{1}{2} \times \frac{a^2}{2}$ $= \frac{a^2}{4}$

$\boxed{\text{Original Area of Region 1} = \frac{a^2}{4} \text{ square units}}$ Next, we calculate the area of Region 2 (Triangle AEB). $\text{Area of Region 2} = \frac{1}{2} \times \text{base EB} \times \text{height AE}$ $= \frac{1}{2} \times \frac{a}{\sqrt{2}} \times \frac{a}{\sqrt{2}}$ $= \frac{1}{2} \times \frac{a^2}{2}$ $= \frac{a^2}{4}$ $\boxed{\text{Original Area of Region 2} = \frac{a^2}{4} \text{ square units}}$

Step 3 — Calculate the new areas when the side length is doubled

The side length of the square is now doubled. So, the new side length is $2a$ . We will replace 'a' with '2a' in our area formulas from Step 2.

For Region 3: $\text{New Area of Region 3} = \frac{(2a)^2}{2}$ $= \frac{4a^2}{2}$ $= 2a^2$

$\boxed{\text{New Area of Region 3} = 2a^2 \text{ square units}}$

For Region 1: $\text{New Area of Region 1} = \frac{(2a)^2}{4}$ $= \frac{4a^2}{4}$ $= a^2$

$\boxed{\text{New Area of Region 1} = a^2 \text{ square units}}$

For Region 2: $\text{New Area of Region 2} = \frac{(2a)^2}{4}$ $= \frac{4a^2}{4}$ $= a^2$

$\boxed{\text{New Area of Region 2} = a^2 \text{ square units}}$

Step 4 — Determine the increase in area for each region

To find how much the area increased, we divide the new area by the original area.

For Region 3: $\text{Increase in Region 3} = \frac{\text{New Area of Region 3}}{\text{Original Area of Region 3}}$ $= \frac{2a^2}{\frac{a^2}{2}}$ $= 2a^2 \times \frac{2}{a^2}$ $= 4$

$\boxed{\text{Increase in Region 3} = 4 \text{ times}}$

For Region 1: $\text{Increase in Region 1} = \frac{\text{New Area of Region 1}}{\text{Original Area of Region 1}}$ $= \frac{a^2}{\frac{a^2}{4}}$ $= a^2 \times \frac{4}{a^2}$ $= 4$

$\boxed{\text{Increase in Region 1} = 4 \text{ times}}$

For Region 2: $\text{Increase in Region 2} = \frac{\text{New Area of Region 2}}{\text{Original Area of Region 2}}$ $= \frac{a^2}{\frac{a^2}{4}}$ $= a^2 \times \frac{4}{a^2}$ $= 4$

$\boxed{\text{Increase in Region 2} = 4 \text{ times}}$

Answer

The area of each region increases by 4 times.

Reason: The area of any two-dimensional shape depends on the square of its side lengths. If we double the side length, the area will become $2 \times 2 = 4$ times larger.
