Question 7

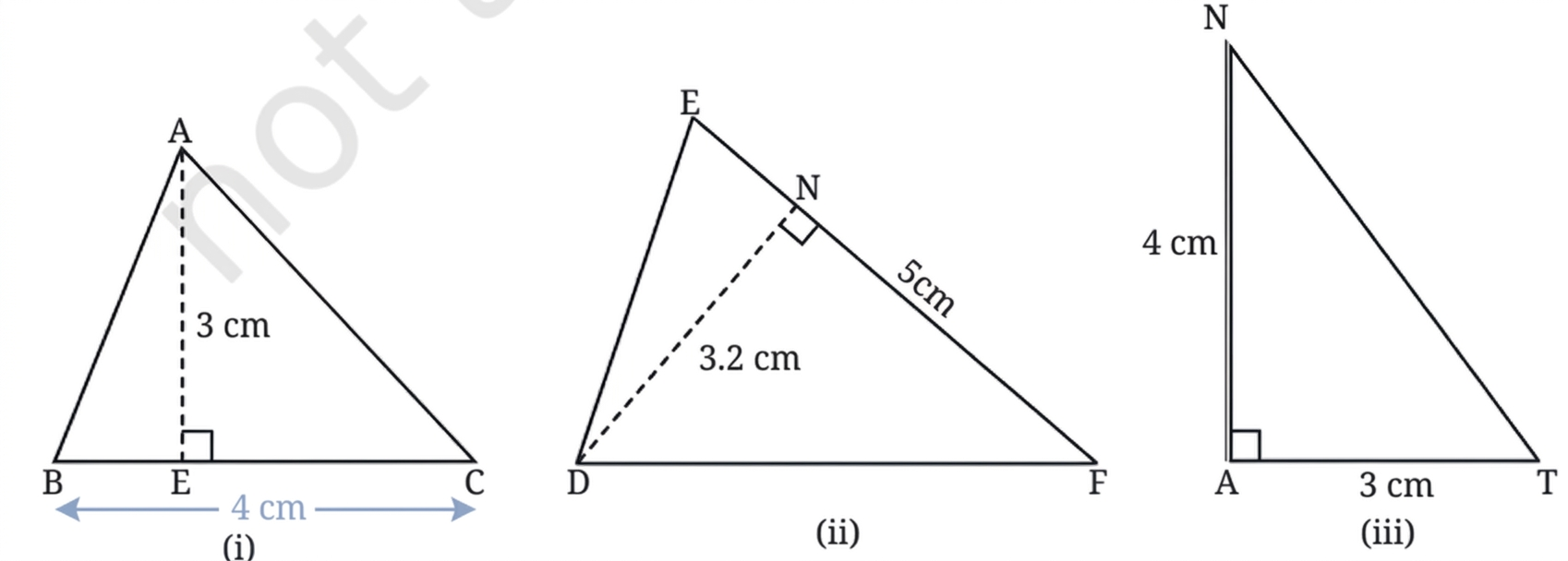

Find the areas of the following triangles:

Solution

The area of a triangle is half the product of its base and corresponding height.

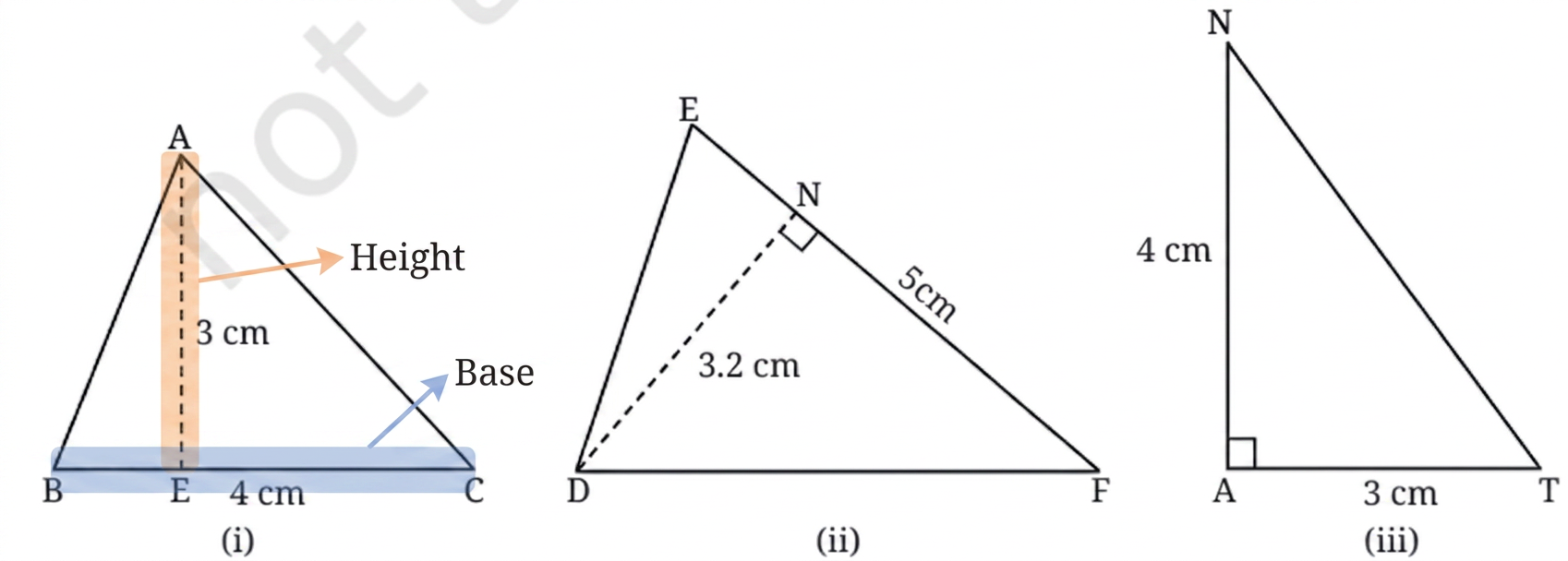

Step 1 — Area of triangle (i) Let us find the area of triangle ABC. The base of triangle ABC is BC. The height corresponding to base BC is AE. From the diagram, we see that the base BC is 4 cm. The height AE is 3 cm.

$\text{Area of triangle ABC} = \frac{1}{2} \times \text{base} \times \text{height}$

$= \frac{1}{2} \times 4 \text{ cm} \times 3 \text{ cm}$

$= 2 \text{ cm} \times 3 \text{ cm}$

$\boxed{6 \text{ cm}^2}$

Diagram 1

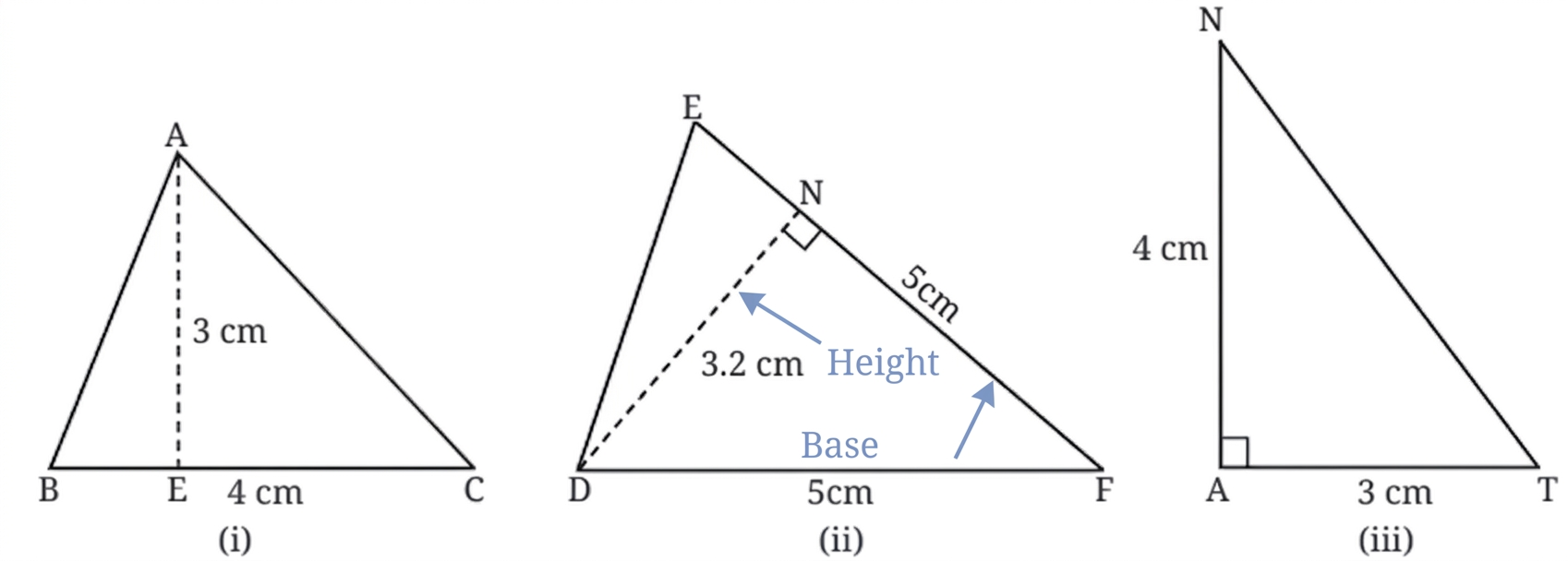

Step 2 — Area of triangle (ii) Let us find the area of triangle DEF. The base of triangle DEF is EF. The height corresponding to base EF is DN. From the diagram, we see that the base EF is 5 cm. The height DN is 3.2 cm.

$\text{Area of triangle DEF} = \frac{1}{2} \times \text{base} \times \text{height}$

$= \frac{1}{2} \times 5 \text{ cm} \times 3.2 \text{ cm}$

$= 5 \text{ cm} \times 1.6 \text{ cm}$

$\boxed{8 \text{ cm}^2}$

Diagram 2

Step 3 — Area of triangle (iii) Let us find the area of triangle NAT. Triangle NAT is a right-angled triangle at A. We can consider AT as the base. The height corresponding to base AT is NA. From the diagram, we see that the base AT is 3 cm. The height NA is 4 cm.

$\text{Area of triangle NAT} = \frac{1}{2} \times \text{base} \times \text{height}$

$= \frac{1}{2} \times 3 \text{ cm} \times 4 \text{ cm}$

$= 3 \text{ cm} \times 2 \text{ cm}$

$\boxed{6 \text{ cm}^2}$

Diagram 3

Answer

(i) $6 \text{ cm}^2$ (ii) $8 \text{ cm}^2$ (iii) $6 \text{ cm}^2$
