Question 9

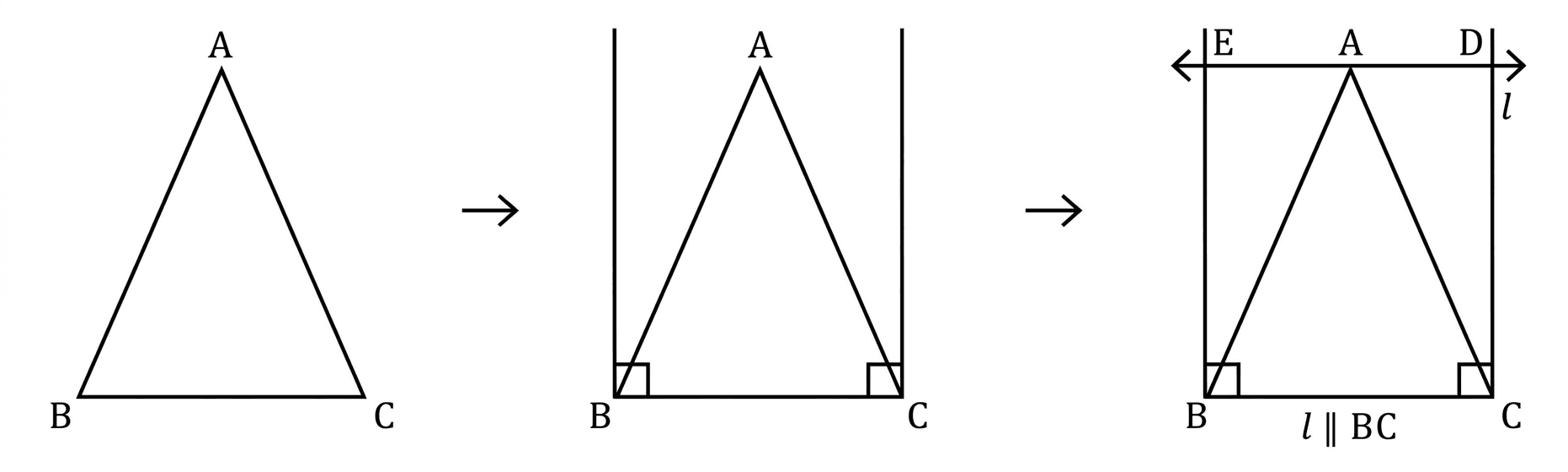

How do we get the outer rectangle from the given triangle?

Solution

We can enclose a triangle within a rectangle by drawing lines parallel and perpendicular to its base.

Step 1 — Drawing Vertical Lines

Let us start with the given triangle ABC. From point B, draw a straight line upwards. This line must be perpendicular (at a 90-degree angle) to the base BC. From point C, draw another straight line upwards. This line must also be perpendicular to the base BC.

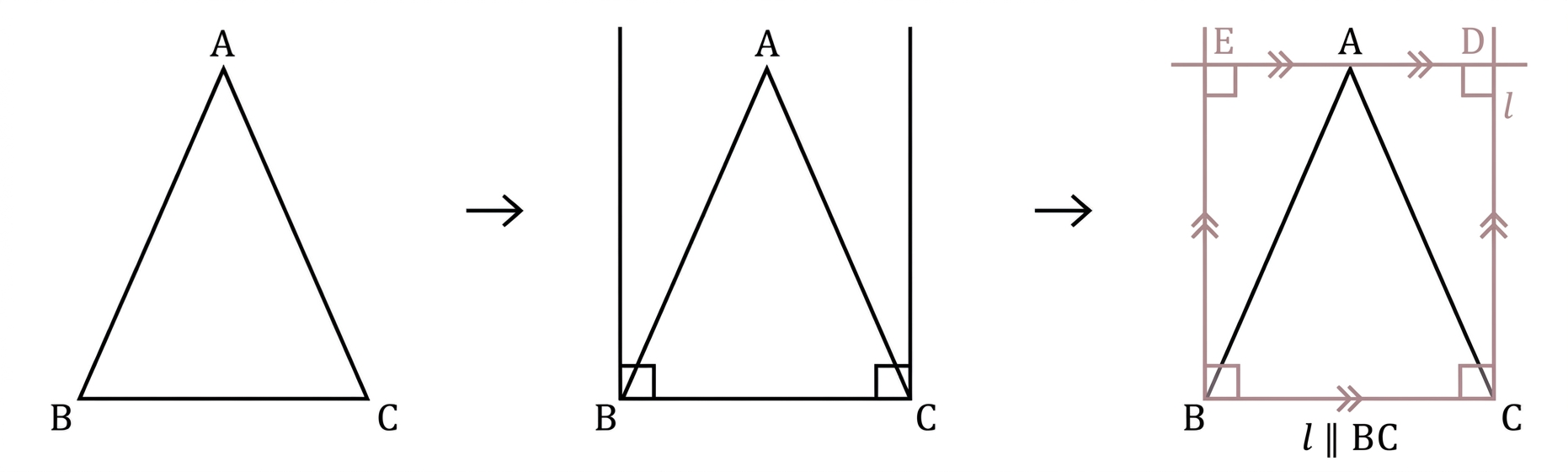

Diagram 1

Step 2 — Drawing a Horizontal Line

Now, let us look at the top vertex, point A. Draw a straight line through point A. This line must be parallel (always the same distance apart) to the base BC. Extend this line until it meets the two vertical lines we drew in Step 1. Let the point where it meets the line from B be E. Let the point where it meets the line from C be D.

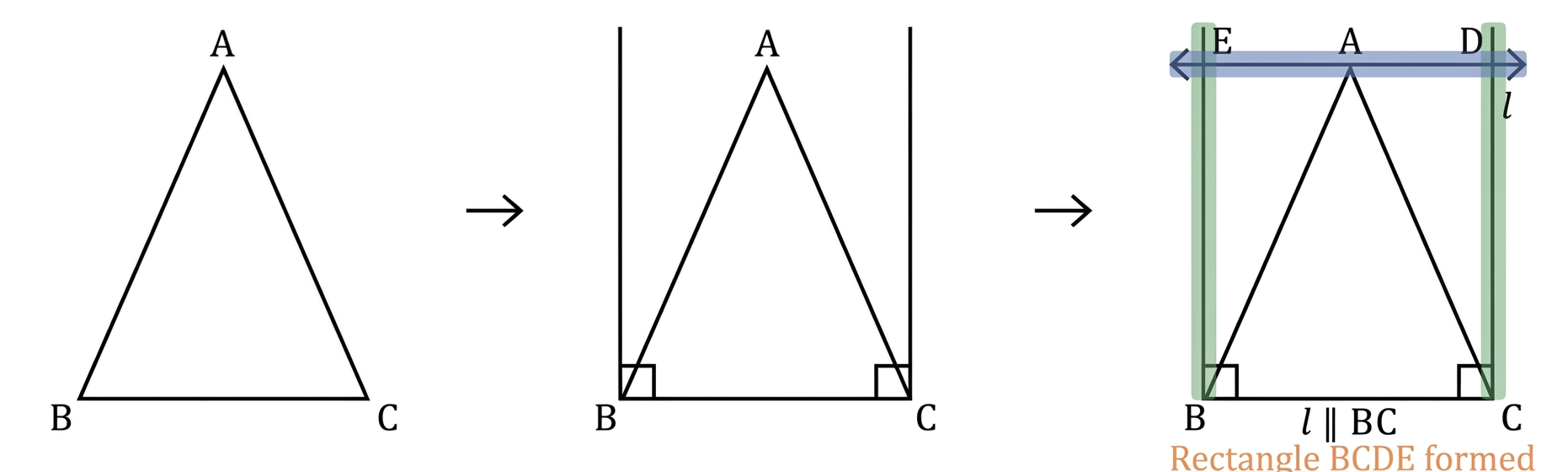

Diagram 2

Step 3 — Forming the Rectangle

We now have four points: B, C, D, and E. The line segments BC, CD, DE, and EB form a four-sided shape. Since BE and CD are perpendicular to BC, and ED is parallel to BC, this shape is a rectangle. This rectangle BCDE completely encloses the triangle ABC.

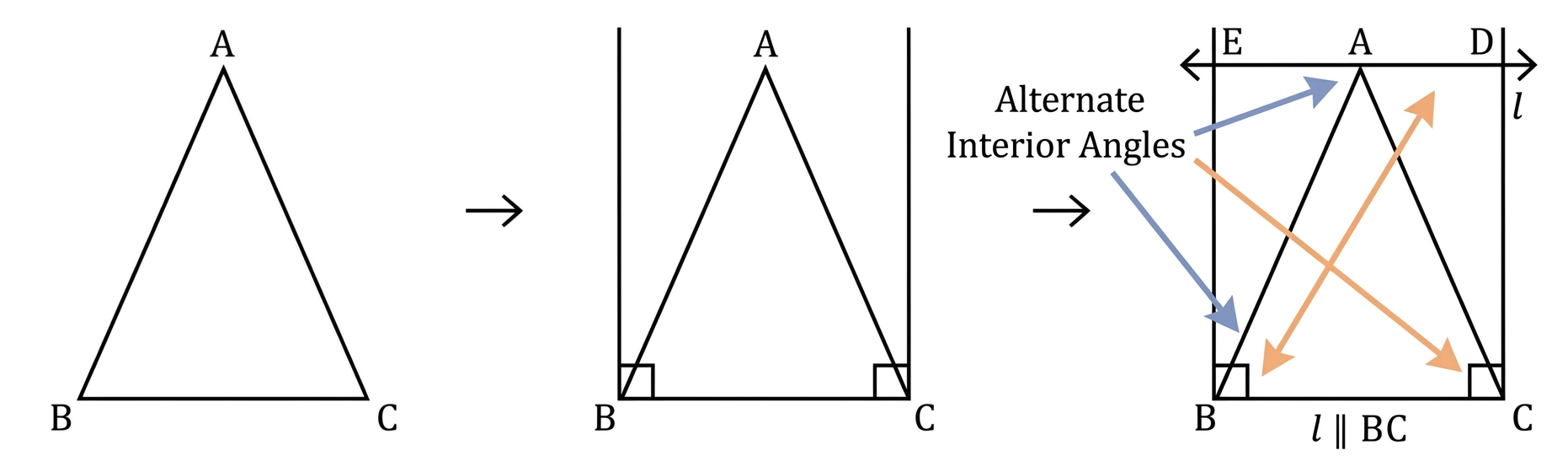

Diagram 3

Answer

The outer rectangle is formed by:

(i) Drawing two lines perpendicular to the base BC, one from point B and one from point C, extending upwards. (ii) Drawing a line through the vertex A that is parallel to the base BC. (iii) The intersection points of this parallel line with the perpendicular lines, along with B and C, form the vertices of the rectangle.
