Question 17

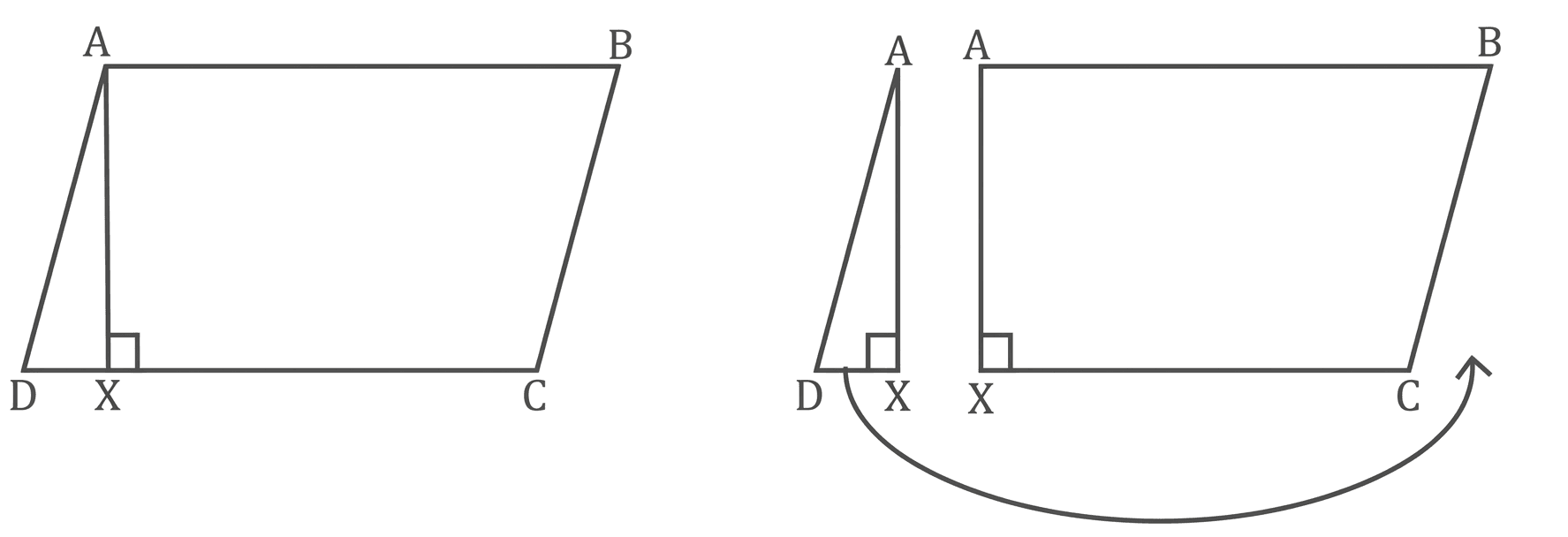

Can ΔAXD\Delta\text{AXD} and ABCX\text{ABCX} fit together, as shown in the figure, to get a rectangle?

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

For the combined shape to be a rectangle, its opposite sides must be equal in length and all its angles must be 90 degrees.

Step 1 — Understand the shapes and transformation

Let us look at the original figure ABCD. A line segment AX is drawn from vertex A, perpendicular to the base DC. This means AX is the height of the figure. The original figure is divided into a right-angled triangle AXD and a quadrilateral ABCX. The figure shows that triangle AXD is cut off from the left side. The remaining part is the quadrilateral ABCX. The triangle AXD is then moved to the right side of ABCX. The arrow indicates that the side AX of the triangle is placed vertically at the right end of the figure. The base DX of the triangle is placed along the line DC, next to point C.

Step 2 — Analyze the properties of the resulting figure

Let us examine the resulting figure, which is shown as a rectangle. The top side of this new figure is AB. The left side of this new figure is AX. The right side of this new figure is the moved segment AX (from the triangle). The bottom side of this new figure is formed by combining the segment XC and the moved segment DX. So, the total length of the bottom side is XC+DXXC + DX. We know that the entire base DC of the original quadrilateral is DX+XCDX + XC. Therefore, the length of the bottom side of the new figure is equal to DC.

Step 3 — Check conditions for a rectangle

For a figure to be a rectangle, its opposite sides must be equal in length. The top side of the new figure is AB. The bottom side of the new figure is DC. For the new figure to be a rectangle, its top side must be equal to its bottom side. So, we must have AB = DC. Also, for a rectangle, all angles must be 90 degrees. The original AX is perpendicular to DC, so the left angles are 90 degrees. When triangle AXD is moved, its side AX is placed perpendicular to the line DC. So, the right angles are also 90 degrees. Thus, the main condition for the combined figure to be a rectangle is that AB must be equal to DC.

Step 4 — Conclusion

The original figure ABCD is a quadrilateral. If AB is parallel to DC (which is implied by AX being a height for a trapezoid) and AB = DC, then ABCD is a parallelogram. If ABCD is a parallelogram, then the transformation shown will indeed form a rectangle. However, the diagram of ABCD shows a general trapezoid, where AB is not necessarily equal to DC. If AB is not equal to DC, the resulting figure will have unequal top and bottom sides (AB and DC). In that case, the resulting figure would be a parallelogram, but not a rectangle. Since the question asks if they can fit together to get a rectangle as shown, and the figure shows a rectangle, it implies that the conditions for it to be a rectangle must be met. This means the original quadrilateral ABCD must be a parallelogram.

Answer

No, not for every quadrilateral ABCD. It can only fit together to form a rectangle if the original quadrilateral ABCD is a parallelogram (meaning AB is parallel to DC and AB = DC).

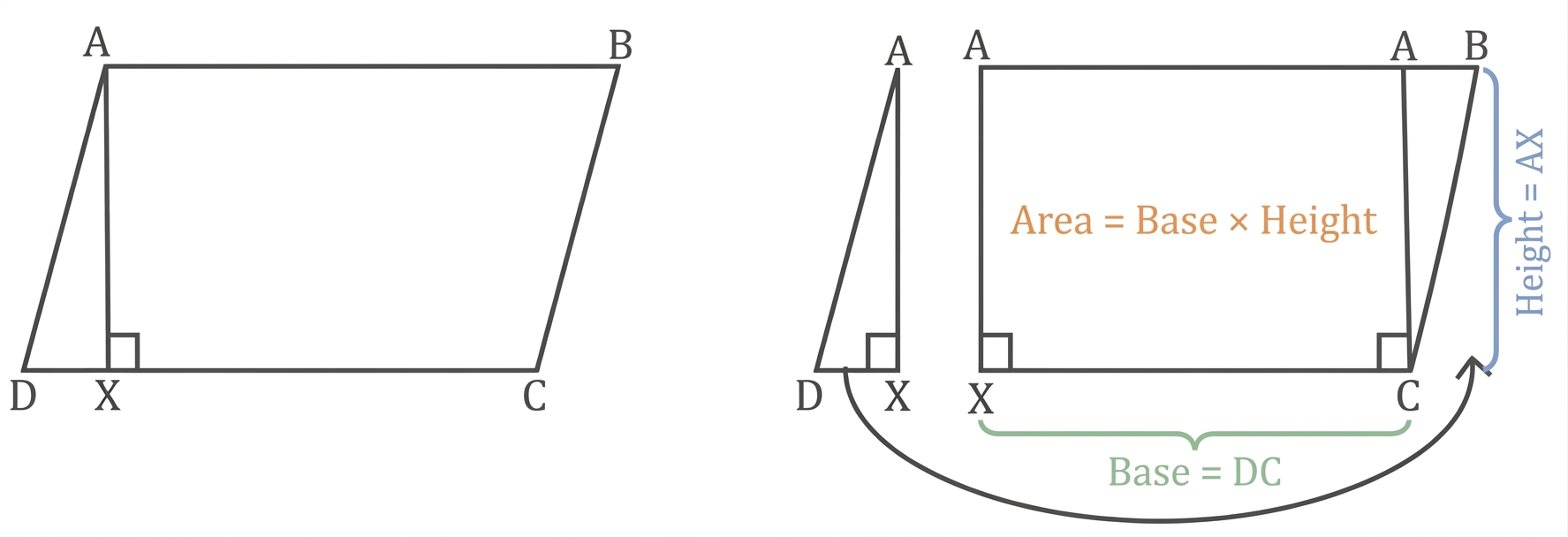

Diagram 1
