Question 3

Context: Consider two regions, Region 1 and Region 2, such that Perimeter of Region 1 > Perimeter of Region 2, but Area of Region 1 < Area of Region 2.

Q. Find two rectangles that are examples of such regions. If needed, use a grid paper (given at the end of the book) for this.

Solution

We need to find two rectangles that satisfy the given conditions.

Step 1 — Define Region 1

Let us choose a long and thin rectangle for Region 1. This shape will have a relatively large perimeter for its area. Let the length of Region 1 be $L_1$ and its width be $W_1$ . We choose $L_1 = 10 \text{ units}$ and $W_1 = 1 \text{ unit}$ . The perimeter of a rectangle is $2 \times (\text{length} + \text{width})$ . The area of a rectangle is $\text{length} \times \text{width}$ .

$P_1 = 2(L_1 + W_1)$

$P_1 = 2(10 + 1)$

$P_1 = 2(11)$

$\boxed{P_1 = 22 \text{ units}}$

$A_1 = L_1 \times W_1$

$A_1 = 10 \times 1$

$\boxed{A_1 = 10 \text{ square units}}$

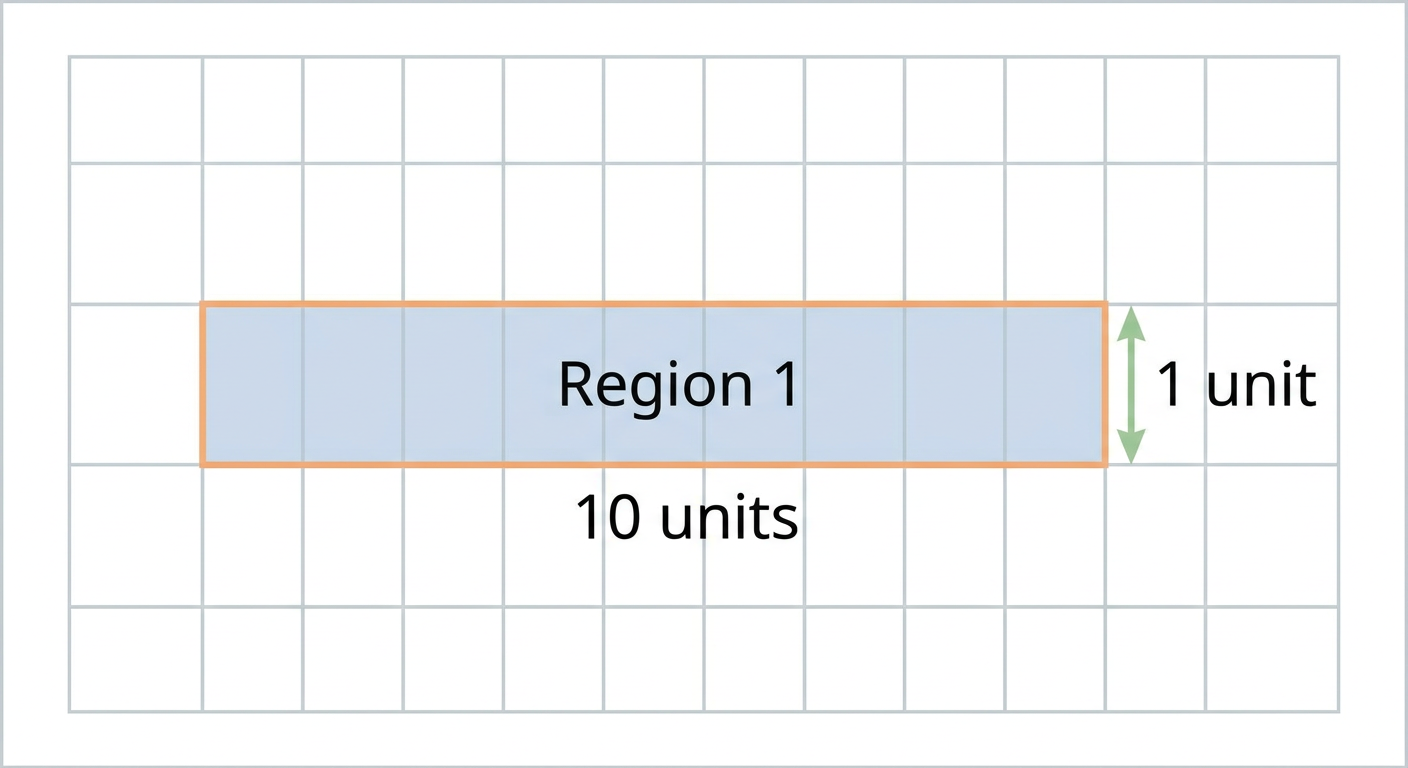

Diagram 1

Step 2 — Define Region 2

Now we need to find a second rectangle, Region 2. It must have a smaller perimeter than Region 1. It must have a larger area than Region 1. Let the length of Region 2 be $L_2$ and its width be $W_2$ . We choose $L_2 = 4 \text{ units}$ and $W_2 = 3 \text{ units}$ .

$P_2 = 2(L_2 + W_2)$

$P_2 = 2(4 + 3)$

$P_2 = 2(7)$

$\boxed{P_2 = 14 \text{ units}}$

$A_2 = L_2 \times W_2$

$A_2 = 4 \times 3$

$\boxed{A_2 = 12 \text{ square units}}$

Diagram 2

Step 3 — Verify the conditions

Let us check if our chosen rectangles satisfy the given conditions. Condition 1: Perimeter of Region 1 > Perimeter of Region 2. We found $P_1 = 22 \text{ units}$ and $P_2 = 14 \text{ units}$ .

$P_1 > P_2$

$22 > 14$ This condition is satisfied.

Condition 2: Area of Region 1 < Area of Region 2. We found $A_1 = 10 \text{ square units}$ and $A_2 = 12 \text{ square units}$ .

$A_1 < A_2$

$10 < 12$ This condition is satisfied.

Answer

(i) Region 1 can be a rectangle with length 10 units and width 1 unit. (ii) Region 2 can be a rectangle with length 4 units and width 3 units.
