Question 21

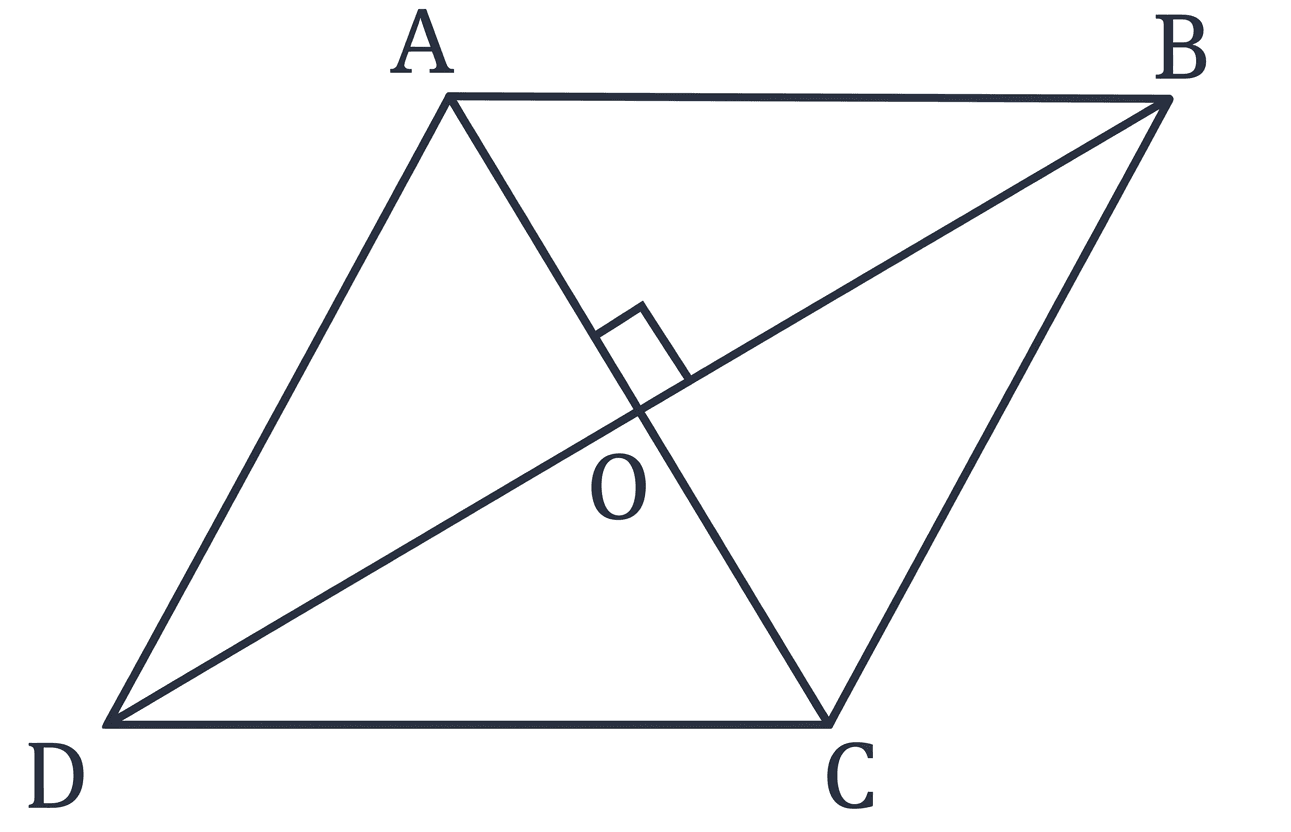

Context: The area of rhombus ABCD can be written as: $\text{Area of rhombus ABCD} = \text{Area}(\Delta\text{ADB}) + \text{Area}(\Delta\text{CDB}) = \frac{1}{2} \times \text{AO} \times \text{BD} + \frac{1}{2} \times \text{CO} \times \text{BD}$

Q. Simplify the expression to show that we get the same formula for the area of a rhombus in terms of its diagonals.

Solution

We can simplify the given expression by factoring out common terms and using the properties of a rhombus's diagonals.

Step 1 — Factor the expression

Let us look at the given expression for the area of rhombus ABCD. It is the sum of the areas of two triangles, $\Delta\text{ADB}$ and $\Delta\text{CDB}$ .

$\text{Area of rhombus ABCD} = \frac{1}{2} \times \text{AO} \times \text{BD} + \frac{1}{2} \times \text{CO} \times \text{BD}$

We can see that $\frac{1}{2}$ and $\text{BD}$ are common factors in both parts. Let us factor these common terms out.

$= \frac{1}{2} \times \text{BD} \times (\text{AO} + \text{CO})$

Step 2 — Relate segments to a diagonal

From the diagram, we can see that point O lies on the diagonal AC. The length of the diagonal AC is the sum of the lengths of AO and CO. So, we can write $\text{AC} = \text{AO} + \text{CO}$ .

Let us substitute AC into our factored expression.

$= \frac{1}{2} \times \text{BD} \times \text{AC}$

This expression shows the area of the rhombus in terms of its diagonals. Let $d_1$ be the length of diagonal AC, and $d_2$ be the length of diagonal BD.

$\boxed{\text{Area of rhombus} = \frac{1}{2} \times d_1 \times d_2}$

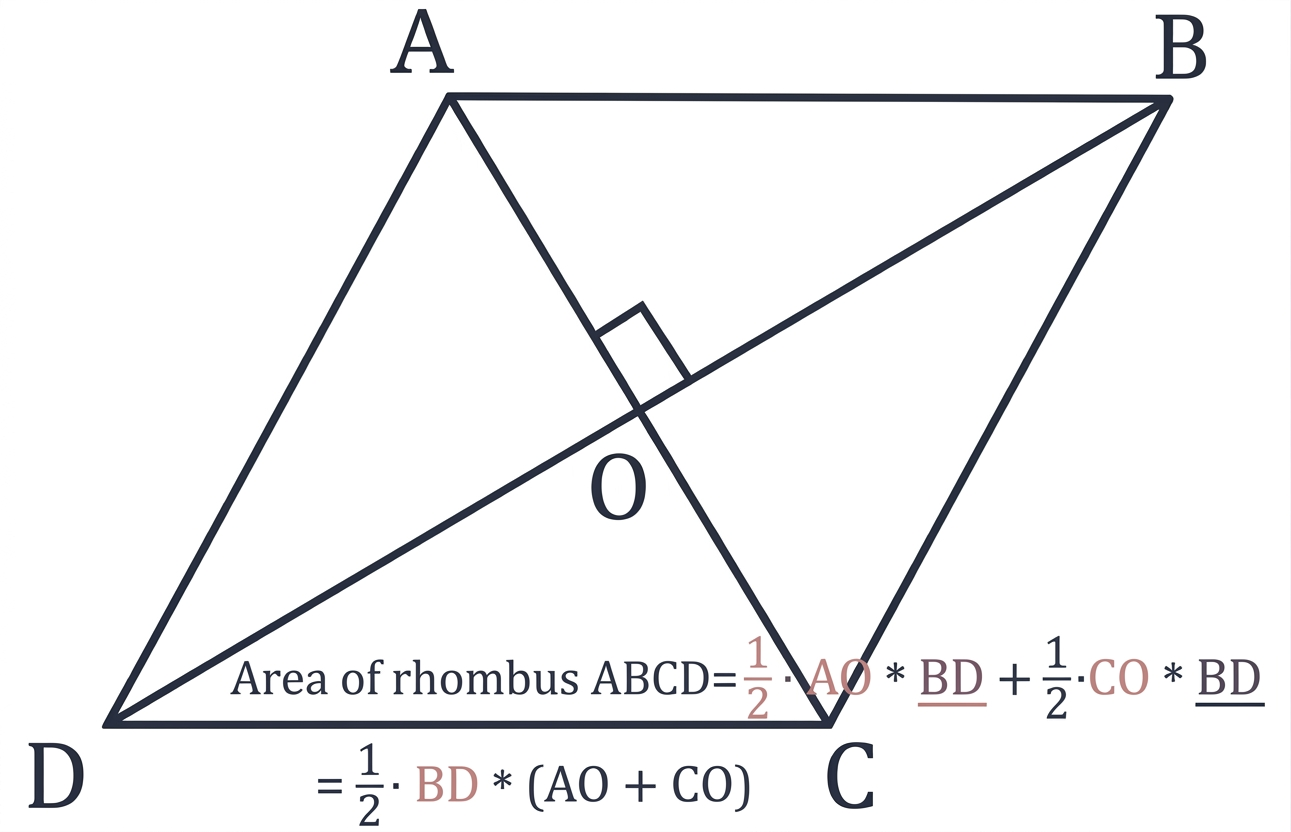

Diagram 1

Answer

The simplified expression for the area of a rhombus in terms of its diagonals is $\frac{1}{2} \times d_1 \times d_2$ .
