Question 9

Instead of the lengths being 40 cm, 60 cm, and 80 cm, suppose the sidelengths had been 4 cm, 6 cm, 8 cm (this triangle can fit on our page).

Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

We will explore the properties of a triangle with these specific side lengths.

Step 1 — Check if a triangle can be formed

A triangle must follow a special rule. The sum of any two sides must be greater than the third side. This rule is called the Triangle Inequality. Let us use a=4 cma = \mathbf{4 \text{ cm}}, b=6 cmb = \mathbf{6 \text{ cm}}, c=8 cmc = \mathbf{8 \text{ cm}}. We check all three conditions.

First condition: a+b>ca + b > c We add the first two sides. 4+64 + 6 =10= 10 We compare this sum with the third side. 10>810 > 8 This condition is true.

Second condition: a+c>ba + c > b We add the first and third sides. 4+84 + 8 =12= 12 We compare this sum with the second side. 12>612 > 6 This condition is true.

Third condition: b+c>ab + c > a We add the second and third sides. 6+86 + 8 =14= 14 We compare this sum with the first side. 14>414 > 4 This condition is true.

Since all three conditions are true, a triangle can be formed.

A triangle can be formed.\boxed{\text{A triangle can be formed.}}

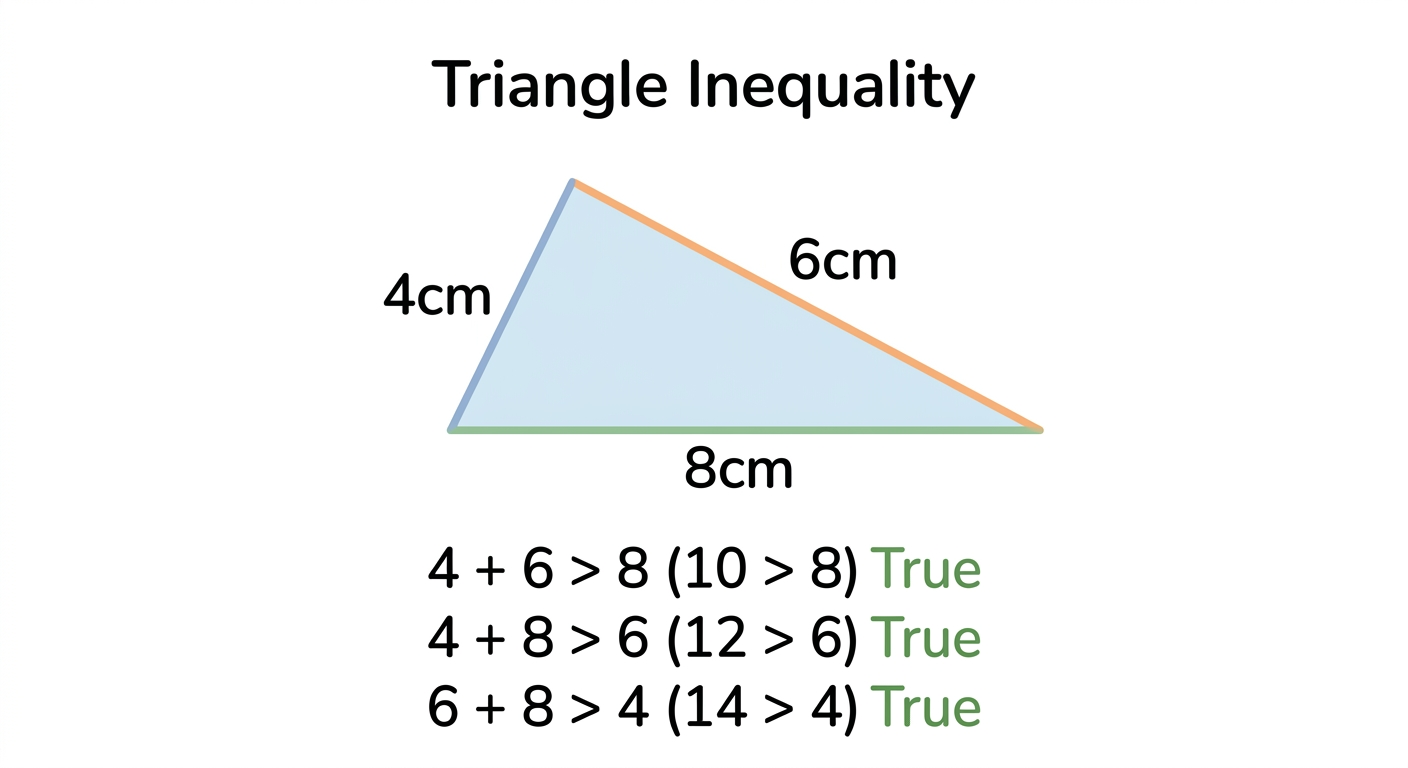

Diagram 1

Step 2 — Classify the triangle by its sides

We look at the lengths of the sides. If all three sides are different, it is a scalene triangle. If two sides are equal, it is an isosceles triangle. If all three sides are equal, it is an equilateral triangle. Our side lengths are 4 cm\mathbf{4 \text{ cm}}, 6 cm\mathbf{6 \text{ cm}}, and 8 cm\mathbf{8 \text{ cm}}. All three side lengths are different.

The triangle is scalene.\boxed{\text{The triangle is scalene.}}

Step 3 — Classify the triangle by its angles

We can classify a triangle by its largest angle. Let aa, bb, cc be the side lengths. Let cc be the longest side. If a2+b2=c2a^2 + b^2 = c^2, it is a right-angled triangle. If a2+b2>c2a^2 + b^2 > c^2, it is an acute-angled triangle. If a2+b2<c2a^2 + b^2 < c^2, it is an obtuse-angled triangle. The longest side is c=8 cmc = \mathbf{8 \text{ cm}}. Let us use a=4 cma = \mathbf{4 \text{ cm}} and b=6 cmb = \mathbf{6 \text{ cm}}.

Let us calculate a2+b2a^2 + b^2. 42+624^2 + 6^2 =16+36= 16 + 36 =52= 52

Now let us calculate c2c^2. 828^2 =64= 64

We compare 5252 and 6464. 52<6452 < 64 Since a2+b2<c2a^2 + b^2 < c^2, the triangle is obtuse-angled.

The triangle is obtuse-angled.\boxed{\text{The triangle is obtuse-angled.}}

Step 4 — Congruence with another triangle

Congruent triangles are exact copies of each other. They have the same shape and size. The SSS (Side-Side-Side) rule is important. It says: if one triangle has sides equal to another triangle's sides. Then these two triangles are congruent. Let us consider a second triangle. Its side lengths are 4 cm\mathbf{4 \text{ cm}}, 6 cm\mathbf{6 \text{ cm}}, and 8 cm\mathbf{8 \text{ cm}}. Its sides are equal to the sides of our first triangle. So, by the SSS rule, the two triangles are congruent.

Any two triangles with these side lengths are congruent.\boxed{\text{Any two triangles with these side lengths are congruent.}}

Answer

(i) The triangle is scalene. (ii) The triangle is obtuse-angled. (iii) Any two triangles with these side lengths are congruent by the SSS rule.
