Question 9

In the figure below, are ΔDFE and ΔGED congruent to each other? It is given that DF = DG and FE = GE.

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

We need to check if triangle DFE and triangle GED are congruent.

Step 1 — Identify common and equal sides

Let us look at the diagram and the given information. We are told that side DF is equal to side DG. This is shown by the single tick marks on them. We are also told that side FE is equal to side GE. This is shown by the double tick marks on them. The side DE is a common side for both triangle DFE and triangle DGE. So, side DE in triangle DFE is equal to side DE in triangle DGE.

Step 2 — Check congruence of △DFE\triangle DFE and △DGE\triangle DGE

Let us compare triangle DFE and triangle DGE. We have found three pairs of equal sides: Side DF = Side DG (This was given to us) Side FE = Side GE (This was given to us) Side DE = Side DE (This is a common side) So, by the SSS (Side-Side-Side) congruence rule, triangle DFE is congruent to triangle DGE. This means that triangle DFE and triangle DGE have the exact same size and shape.

△DFE≅△DGE\triangle DFE \cong \triangle DGE

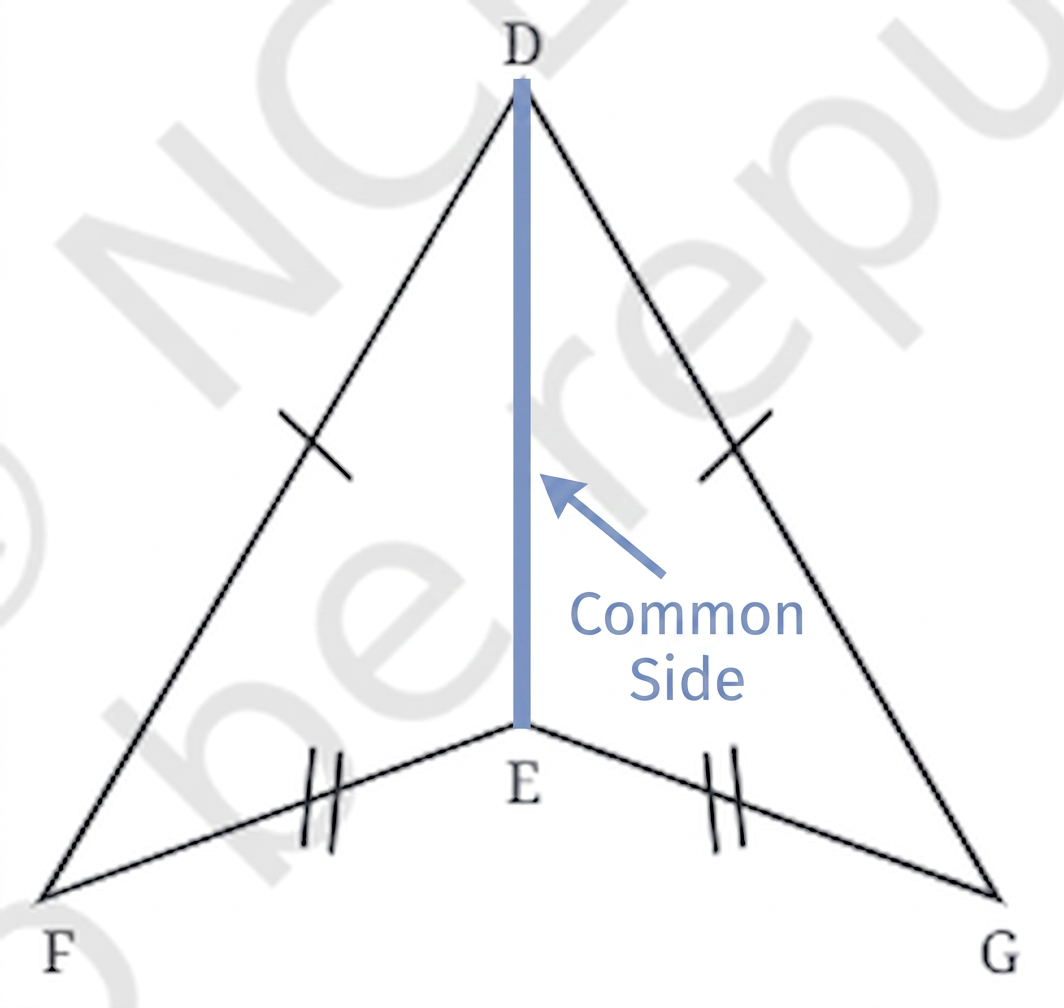

Diagram 1

Step 3 — Check the specific naming △DFE\triangle DFE and △GED\triangle GED

The question asks if triangle DFE and triangle GED are congruent. When we write a congruence statement, the order of the letters (vertices) is very important. It tells us which parts of one triangle match up with the parts of the other. Let us check if the statement △DFE≅△GED\triangle DFE \cong \triangle GED is correct. For this statement to be true, the matching sides must be equal. Side DF from △DFE\triangle DFE must be equal to side GE from △GED\triangle GED. Side FE from △DFE\triangle DFE must be equal to side ED from △GED\triangle GED. Side ED from △DFE\triangle DFE must be equal to side DG from △GED\triangle GED.

Let us check if these conditions are met by our given information:

  1. Is DF = GE? We know DF = DG and FE = GE. So, this would mean DG = FE. This is not given to us.
  2. Is FE = ED? This is not given to us.
  3. Is ED = DG? This is not given to us.

Since these matching sides are not necessarily equal, the given information does not support the congruence statement △DFE≅△GED\triangle DFE \cong \triangle GED. This means that if we try to match the triangles in the order DFE and GED, they are not congruent.

Answer

(i) The triangles DFE and DGE are congruent by the SSS rule. (ii) The given statements do not support the congruence of triangle DFE and triangle GED because the corresponding sides are not equal when matched in that specific order.
