Triangles | Exercise 6.3

Question 4

In Fig. 6.36, $\frac{\text{QR}}{\text{QS}} = \frac{\text{QT}}{\text{PR}}$ and $\angle 1 = \angle 2$ . Show that $\Delta \text{PQS} \sim \Delta \text{TQR}$ .

Solution

We will use the following similarity criterion:

SAS (Side-Angle-Side): If two sides of one triangle are proportional to two corresponding sides of another triangle, and the included angles are equal, the triangles are similar.

We will use the given information to prove the similarity of the two triangles.

Step 1 — Identify equal sides

We are given that $\angle 1 = \angle 2$ . From the diagram, $\angle 1$ is $\angle \text{PQR}$ . Also, $\angle 2$ is $\angle \text{PRQ}$ . So, in $\Delta \text{PQR}$ , we have $\angle \text{PQR} = \angle \text{PRQ}$ . Sides opposite to equal angles are equal. Therefore, $\text{PQ} = \text{PR}$ .

Step 2 — Substitute into the given ratio

We are given the ratio $\frac{\text{QR}}{\text{QS}} = \frac{\text{QT}}{\text{PR}}$ . From Step 1, we know that $\text{PR} = \text{PQ}$ . Let's substitute $\text{PQ}$ for $\text{PR}$ in the given ratio.

$\frac{\text{QR}}{\text{QS}} = \frac{\text{QT}}{\text{PQ}}$

Now, let's rearrange this ratio to match the SAS criterion.

$\frac{\text{PQ}}{\text{QT}} = \frac{\text{QS}}{\text{QR}}$

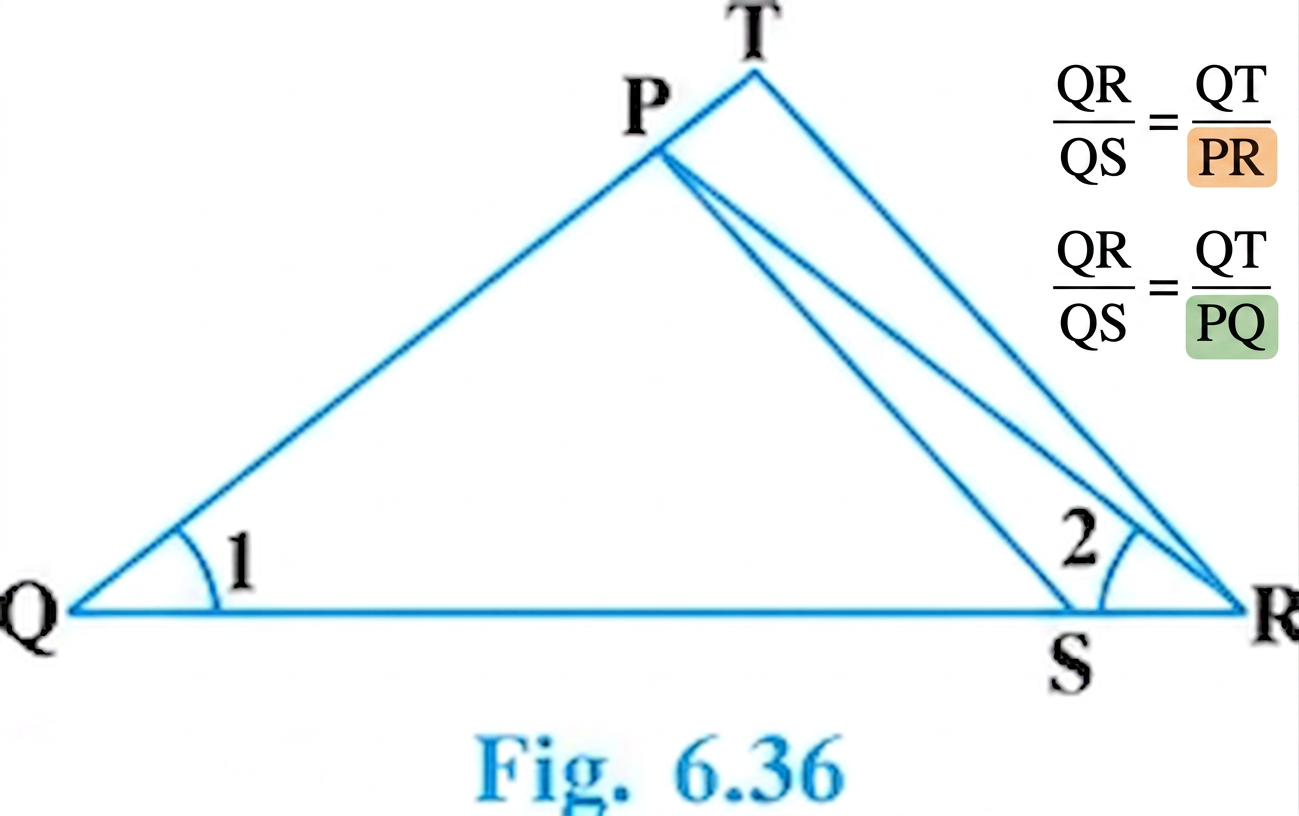

Diagram 1

Step 3 — Apply SAS similarity criterion

Consider $\Delta \text{PQS}$ and $\Delta \text{TQR}$ . We have $\angle \text{PQS} = \angle \text{TQR}$ . This is because $\angle 1$ is common to both triangles. From Step 2, we found the ratio of sides:

$\frac{\text{PQ}}{\text{QT}} = \frac{\text{QS}}{\text{QR}}$

Since one angle is equal and the sides including this angle are proportional, the triangles are similar by SAS criterion.

Answer

$\Delta \text{PQS} \sim \Delta \text{TQR}$
