Question 2

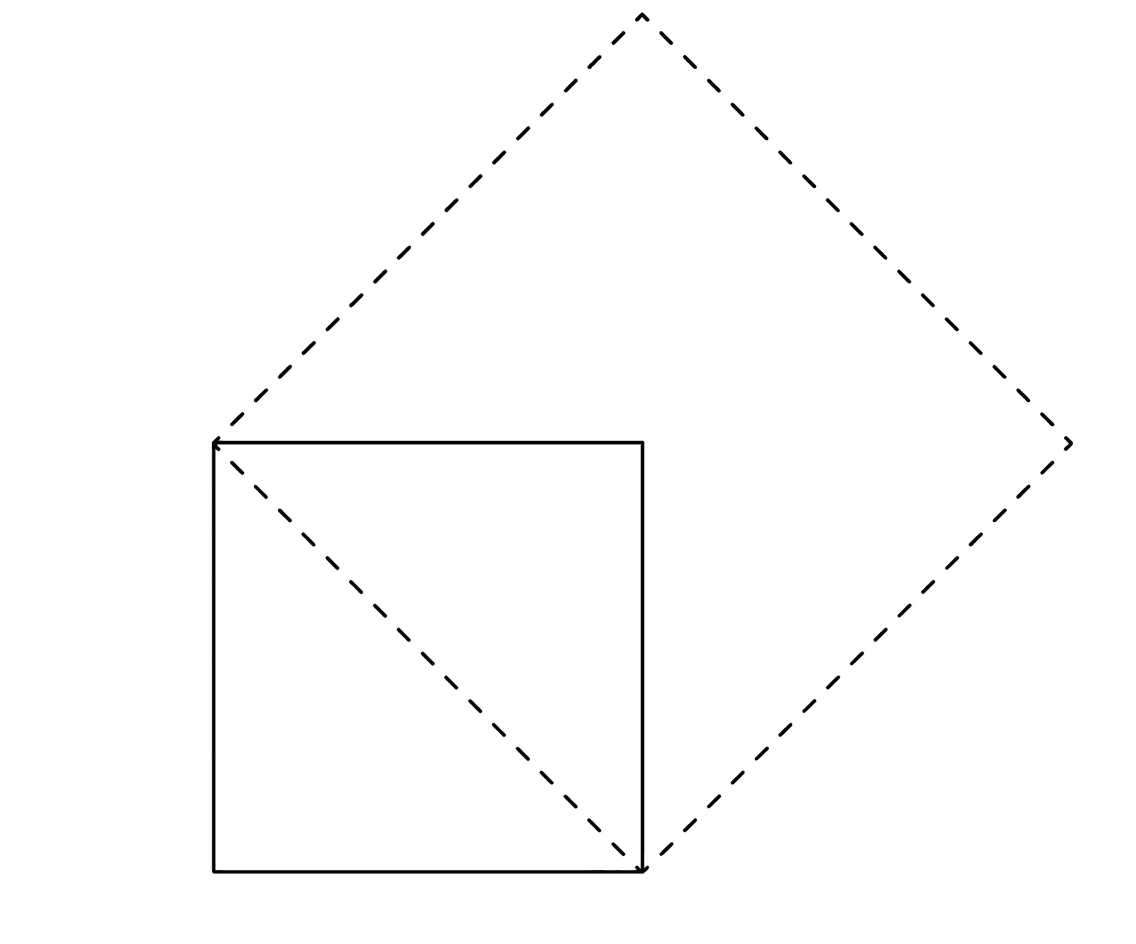

Why does the new dotted square have double the area of the original square?

In many of the constructions in the Śulba-Sūtra, it is desirable to construct, where needed, what Baudhāyana calls ‘east-west’ and ‘north-south’ lines, i.e., horizontal and vertical lines that are perpendicular to each other. Can you draw some horizontal and vertical lines to see why the new square has double the area of the original square? You could draw some horizontal and vertical lines as shown on the right.

Solution

We can find the area of the new square by subtracting the areas of four corner triangles from a larger enclosing square, and then compare it to the original square's area.

Step 1 — Area of the original square

Let the side length of the original solid square be $s$ . The area of a square is found by multiplying its side length by itself.

$\text{Area of original square} = s \times s$

$\boxed{s^2}$

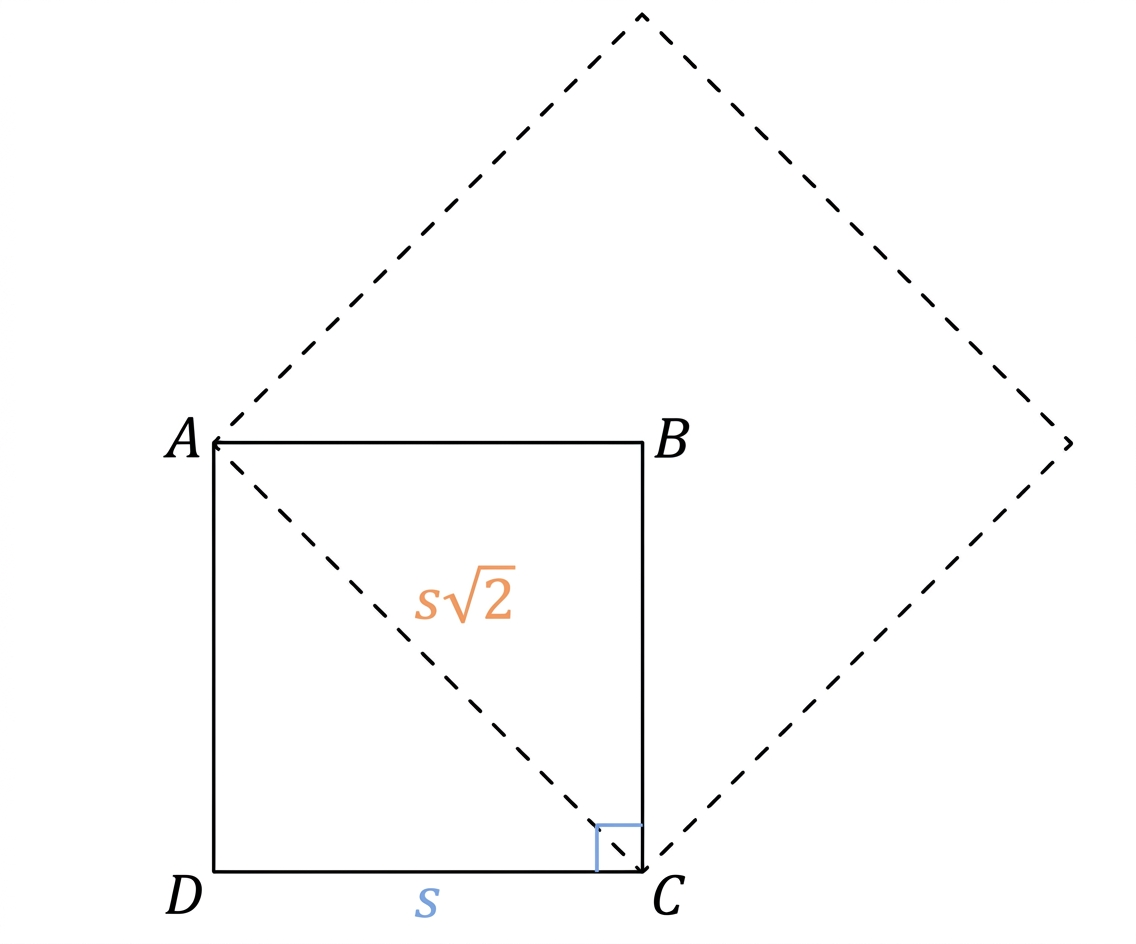

Diagram 1

Step 2 — Enclosing the figure in a larger square

Let us draw a larger square that completely encloses both the original solid square and the new dotted square. We can place the bottom-left corner of the original solid square at the origin (0,0) for easier understanding. Its vertices are then (0,0), (s,0), (s,s), and (0,s). From the diagram, the new dotted square has its vertices at (0,s), (s,0), (2s,s), and (s,2s). The largest x-coordinate in this arrangement is $2s$ . The largest y-coordinate is $2s$ . The smallest x-coordinate is $0$ . The smallest y-coordinate is $0$ . So, we can draw a large square with vertices at (0,0), (2s,0), (2s,2s), and (0,2s). The side length of this large enclosing square is $2s$ .

$\text{Side length of enclosing square} = 2s$ $\text{Area of enclosing square} = (2s) \times (2s)$ $= 4s^2$

$\boxed{4s^2}$

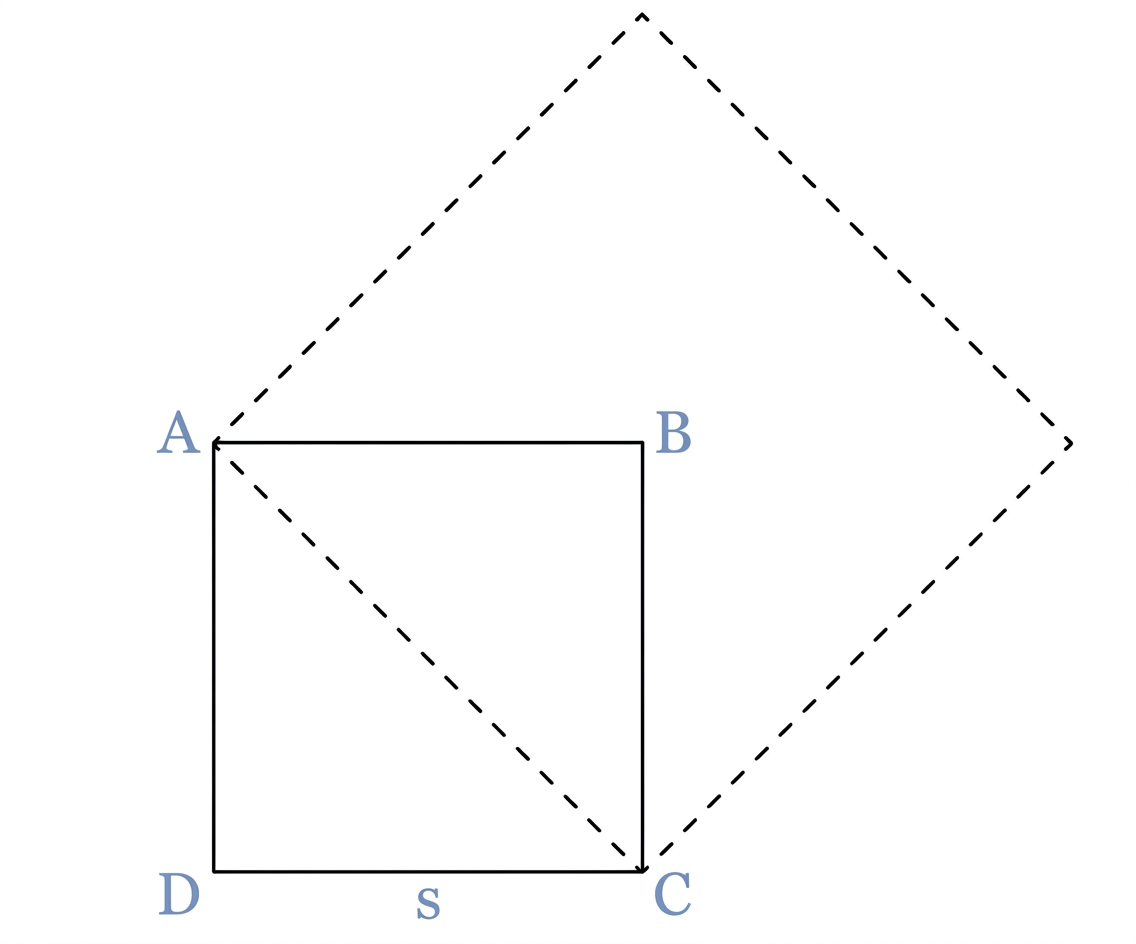

Diagram 2

Step 3 — Area of the corner triangles

The new dotted square is inside the large enclosing square. There are four right-angled triangles in the corners of the large square that are outside the new dotted square. Let us look at the bottom-left corner triangle. Its vertices are (0,0), (s,0), and (0,s). The lengths of its perpendicular sides (legs) are $s$ and $s$ . The area of a right-angled triangle is half the product of its legs.

$\text{Area of one corner triangle} = \frac{1}{2} \times s \times s$ $= \frac{s^2}{2}$

There are four such identical triangles. The total area of these four triangles is:

$\text{Total area of four triangles} = 4 \times \frac{s^2}{2}$ $= 2s^2$

$\boxed{2s^2}$

Step 4 — Area of the new dotted square

The area of the new dotted square is the area of the large enclosing square minus the total area of the four corner triangles.

$\text{Area of new dotted square} = \text{Area of enclosing square} - \text{Total area of four triangles}$ $= 4s^2 - 2s^2$ $= 2s^2$

$\boxed{2s^2}$

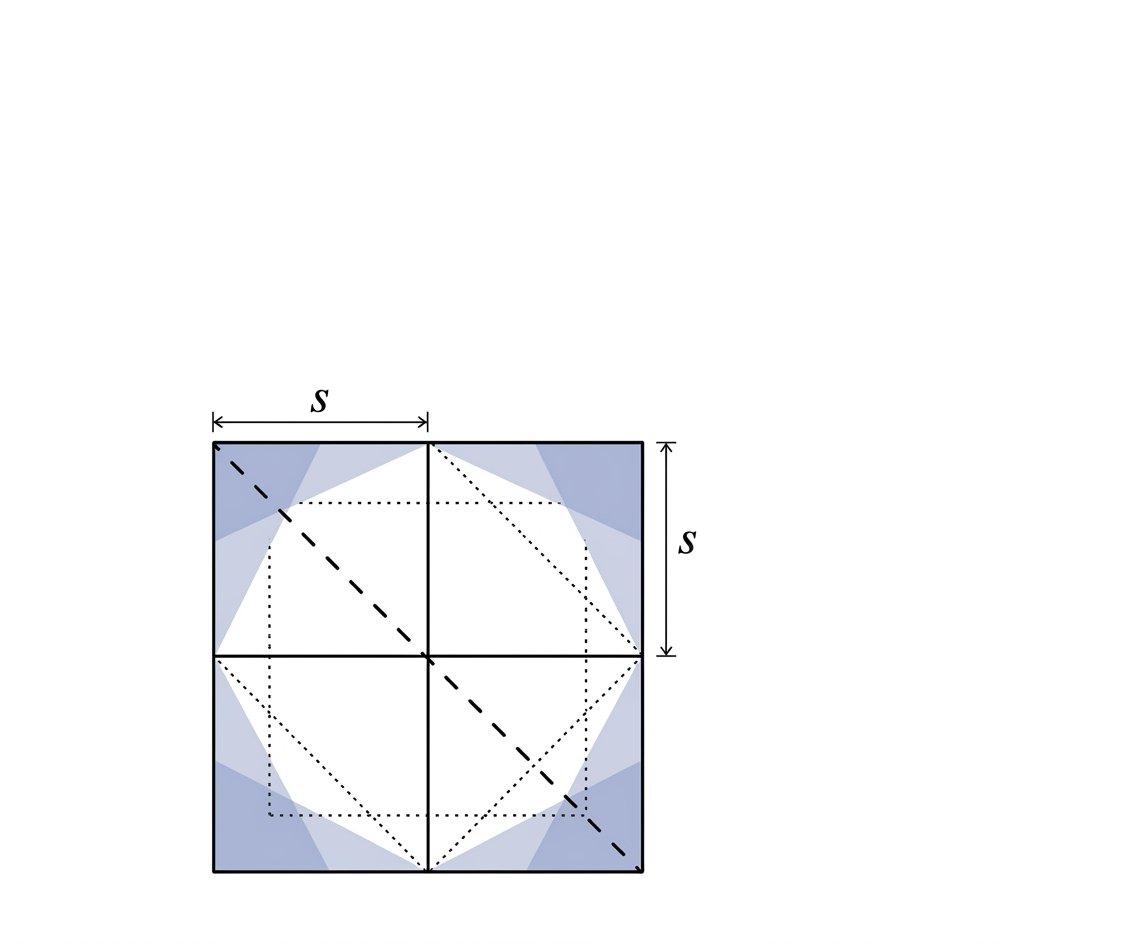

Diagram 4

Step 5 — Comparing the areas

We found that the area of the original solid square is $s^2$ . We found that the area of the new dotted square is $2s^2$ . This means the area of the new dotted square is twice the area of the original solid square.

$\text{Area of new dotted square} = 2 \times \text{Area of original square}$

Answer

The new dotted square has double the area of the original square because its area ( $2s^2$ ) is exactly twice the area of the original square ( $s^2$ ), as shown by enclosing the figure in a larger square and subtracting the areas of the four corner triangles.
