Question 10
In these two figures, a sheet of paper is folded and a cut is made along the dotted line shown. Draw a sketch of how the paper will look when unfolded.
Do you see a line of symmetry in this figure? What is it?
When paper is folded and cut, the cut appears on both sides when unfolded.
Step 1 — Understanding the fold

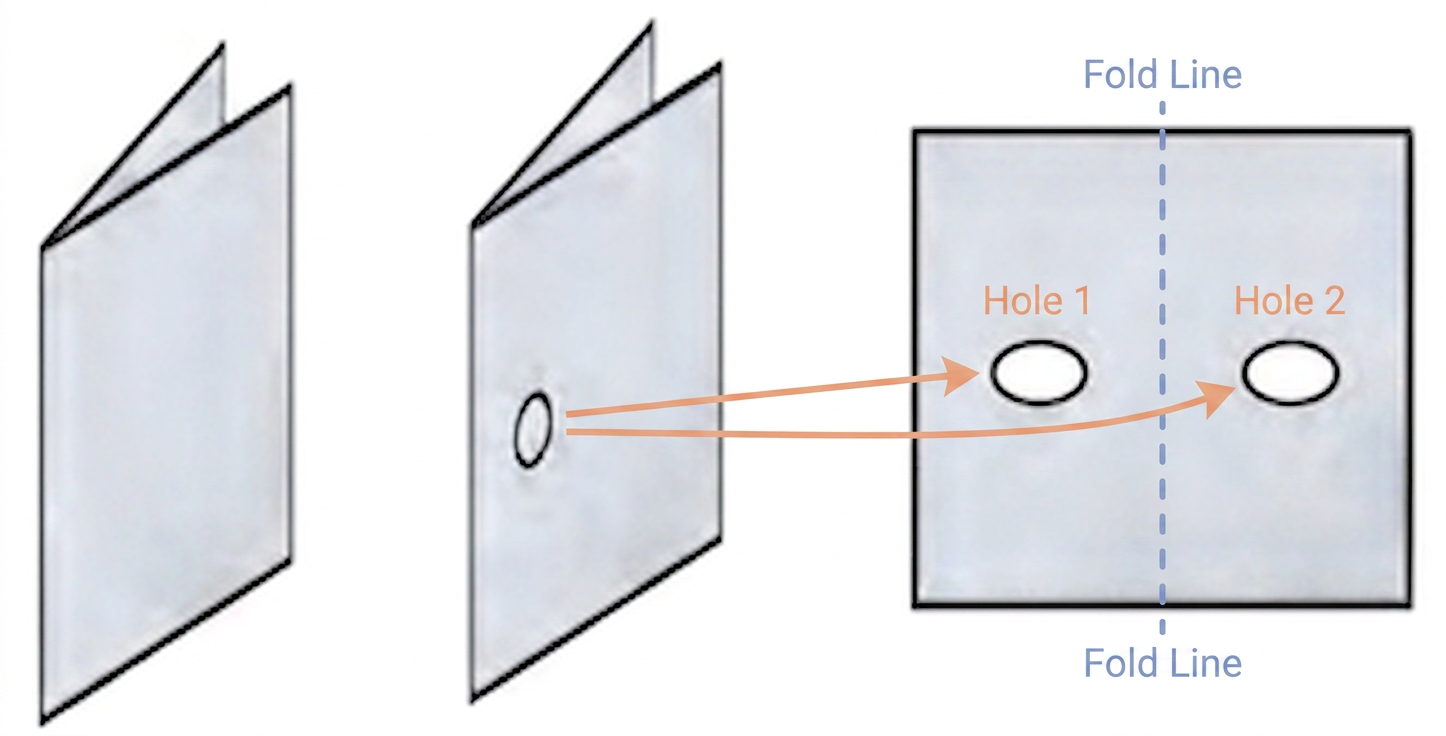

Look at the first figure. A sheet of paper is folded in half. The fold is a vertical line.
Step 2 — Making the cut
Look at the second figure. An oval shape is cut. It is cut on one side of the fold. The cut is near the fold line.
Step 3 — Unfolding the paper
When we unfold the paper, the cut appears on both sides. The fold acts like a mirror. So, we will see two oval holes. They are placed symmetrically. The third figure shows this. It has two oval holes. One hole is on the left. The other hole is on the right.
Step 4 — Finding the line of symmetry
The unfolded paper has two holes. These holes are mirror images. The line between them is the fold line. This fold line is a line of symmetry. It is a vertical line. It passes through the middle of the paper.
Answer
(i) The paper will have two oval holes. They are placed symmetrically. One hole is on the left. The other hole is on the right. (This is shown in the third figure). (ii) Yes, there is a line of symmetry in this figure. (iii) The line of symmetry is a vertical line. It passes through the exact middle of the paper. This was the original fold line.
