Surface Areas and Volumes | Exercise 12.1

Question 9

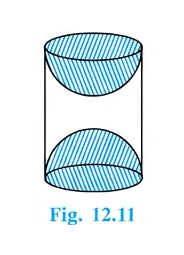

A wooden article was made by scooping out a hemisphere from each end of a solid cylinder, as shown in Fig. 12.11. If the height of the cylinder is 10 cm, and its base is of radius 3.5 cm, find the total surface area of the article.

Solution

The total surface area is the sum of the curved surface area of the cylinder and the curved surface areas of the two hemispheres.

Step 1 — Note the dimensions

Let's write down the given measurements. The height of the cylinder is $\mathbf{10 \text{ cm}}$ . Its radius is $\mathbf{3.5 \text{ cm}}$ . The radius of each hemisphere is also $\mathbf{3.5 \text{ cm}}$ .

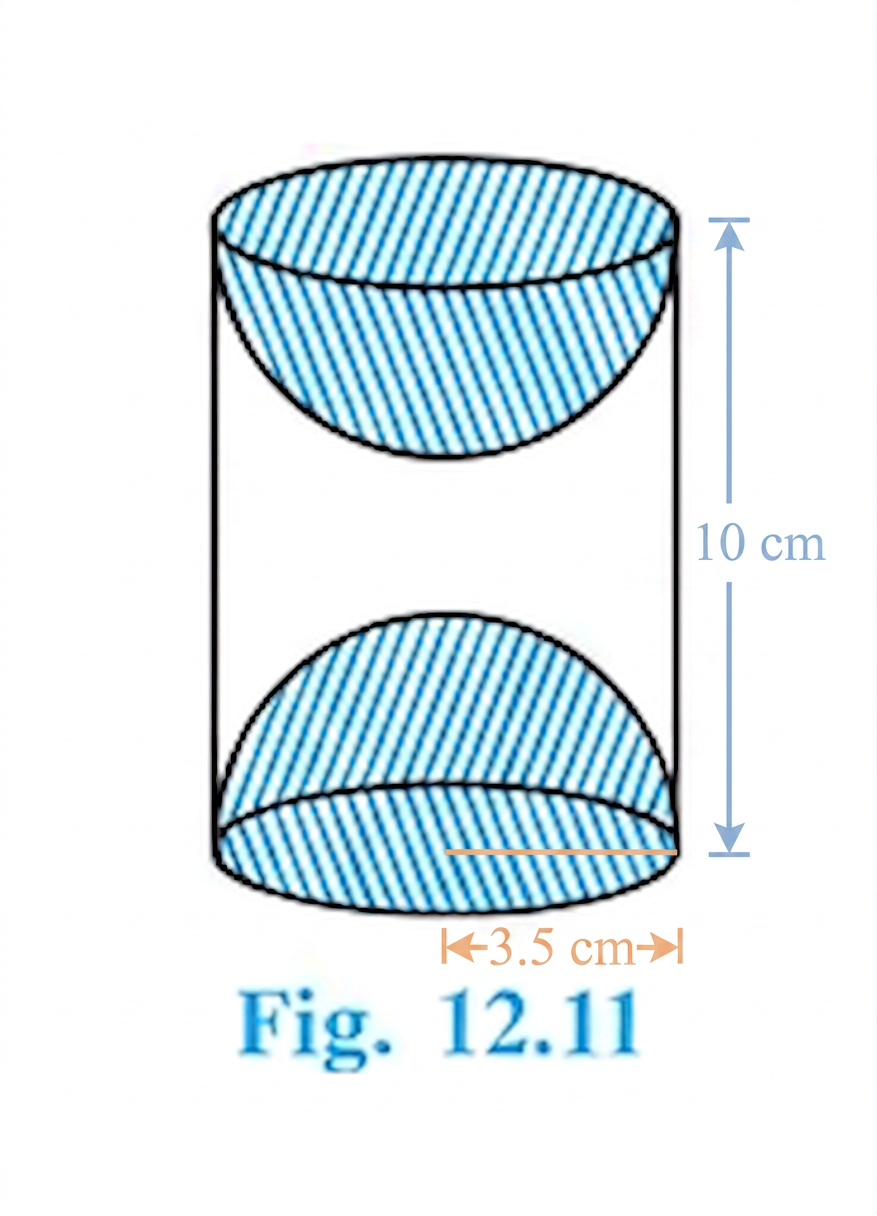

Diagram 1

Step 2 — Calculate cylinder's curved surface area

We will find the curved surface area of the cylinder. The formula is $2 \pi r h$ .

$2 \times \frac{22}{7} \times 3.5 \times 10$

$= 2 \times 22 \times 0.5 \times 10$

$= 220$

$\boxed{220 \text{ cm}^2}$

Step 3 — Calculate hemispheres' curved surface area

Now, let's find the curved surface area of the two hemispheres. The formula for one hemisphere is $2 \pi r^2$ . For two hemispheres, it is $2 \times (2 \pi r^2) = 4 \pi r^2$ .

$4 \times \frac{22}{7} \times (3.5)^2$

$= 4 \times \frac{22}{7} \times 3.5 \times 3.5$

$= 4 \times 22 \times 0.5 \times 3.5$

$= 154$

$\boxed{154 \text{ cm}^2}$

Step 4 — Find the total surface area

We add the curved surface areas from Step 2 and Step 3. This gives us the total surface area of the article.

$220 + 154$

$= 374$

$\boxed{374 \text{ cm}^2}$

Answer

(i) The total surface area of the article is $\mathbf{374 \text{ cm}^2}$ .
