14. A 1.2 m tall girl spots a balloon moving with the wind in a horizontal line at a height of 88.2 m from the ground. The angle of elevation of the balloon from the eyes of the girl at any instant is . After some time, the angle of elevation reduces to (see Fig. 9.13). Find the distance travelled by the balloon during the interval.

Some Applications of Trigonometry | Exercise 9.1

Question 14

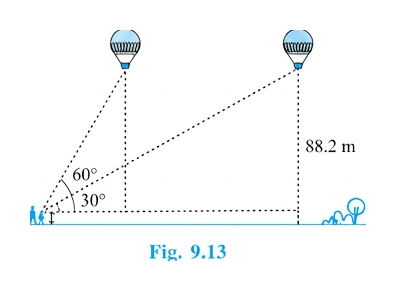

A 1.2 m tall girl spots a balloon moving with the wind in a horizontal line at a height of 88.2 m from the ground. The angle of elevation of the balloon from the eyes of the girl at any instant is $60^\circ$ . After some time, the angle of elevation reduces to $30^\circ$ (see Fig. 9.13). Find the distance travelled by the balloon during the interval.

Solution

Setup: The balloon moves horizontally at a fixed height. As it moves away, the angle of elevation decreases from 60° to 30°. The girl's eyes are at 1.2 m, so the effective height = balloon height − eye level.

Angle of Elevation: The angle between the horizontal and the line of sight looking up to the balloon.

Tangent Ratio: $\tan\theta = \dfrac{\text{Height (opposite)}}{\text{Horizontal distance (adjacent)}}$ — rearranged as $d = \dfrac{h}{\tan\theta}$ to find the horizontal distance.

Why $d_2 > d_1$ : As the balloon moves away, the angle decreases (30° < 60°), so the horizontal distance increases. The distance traveled = $d_2 - d_1$ .

Let's use trigonometry to find the horizontal distance the balloon traveled.

Step 1 — Determine the effective height

The girl's height is 1.2 m. The balloon's height from the ground is 88.2 m. We subtract the girl's height from the balloon's height. This gives us the height from the girl's eye level.

$= 88.2 - 1.2$

$\boxed{87 \text{ m}}$

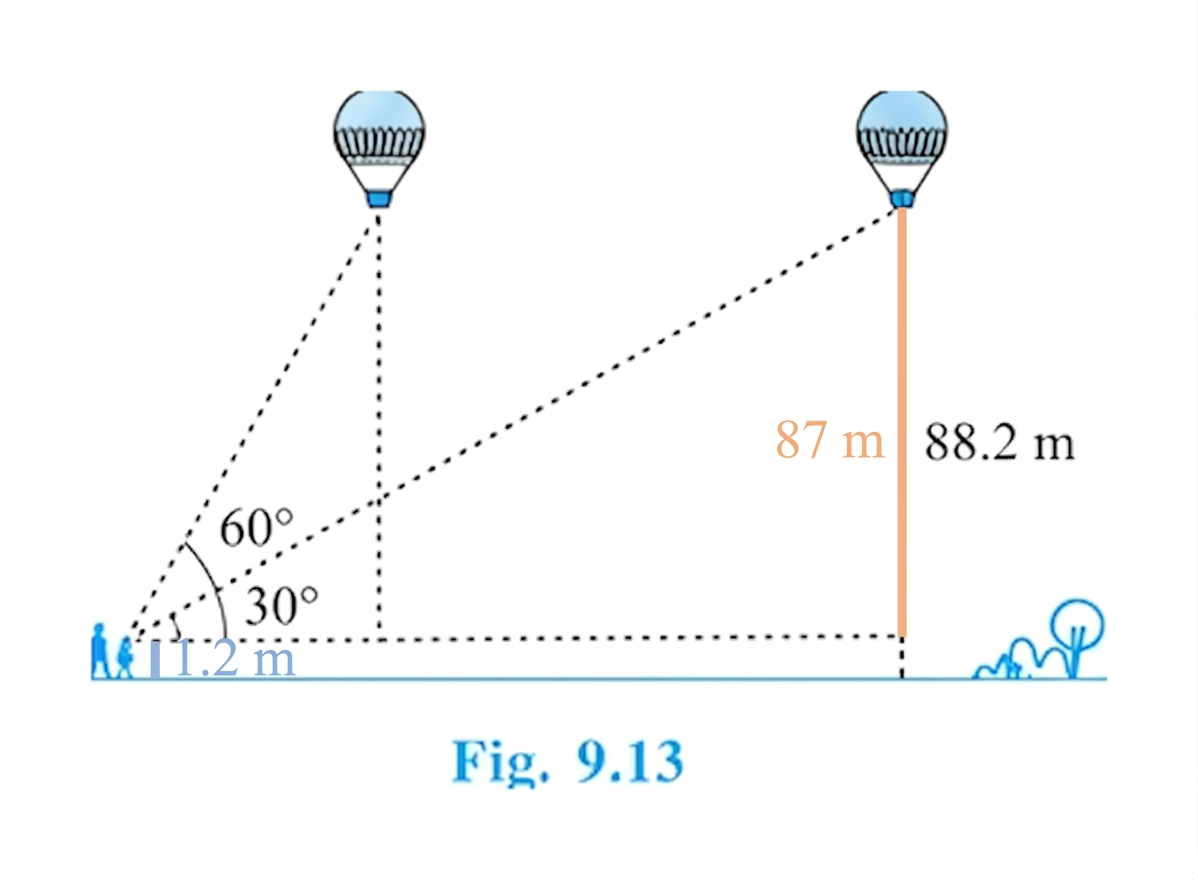

Diagram 1

Step 2 — Calculate the initial horizontal distance

Let $h$ be the effective height, which is 87 m. Let $d_1$ be the initial horizontal distance. The initial angle of elevation is 60°. We use the tangent function for the right triangle formed.

$\tan(60^\circ) = \frac{h}{d_1}$

$d_1 = \frac{h}{\tan(60^\circ)}$

$d_1 = \frac{87}{\sqrt{3}}$

Rationalizing: Multiply by $\frac{\sqrt{3}}{\sqrt{3}}$ to clear the surd from the denominator.

$d_1 = \frac{87\sqrt{3}}{3}$

$\boxed{29\sqrt{3} \text{ m}}$

Step 3 — Calculate the final horizontal distance

Let $d_2$ be the final horizontal distance. The final angle of elevation is 30°. We use the tangent function again for the new right triangle.

$\tan(30^\circ) = \frac{h}{d_2}$

$d_2 = \frac{h}{\tan(30^\circ)}$

$d_2 = \frac{87}{1/\sqrt{3}}$

$d_2 = 87\sqrt{3}$

$\boxed{87\sqrt{3} \text{ m}}$

Step 4 — Find the distance traveled by the balloon

The distance traveled is the difference between the final and initial horizontal distances. We subtract $d_1$ from $d_2$ .

$= d_2 - d_1$

$= 87\sqrt{3} - 29\sqrt{3}$

$= (87 - 29)\sqrt{3}$

$= 58\sqrt{3}$

Using $\sqrt{3} \approx 1.732$ :

$= 58 \times 1.732$

$= 100.456$

Answer

The distance traveled by the balloon is $\boxed{58\sqrt{3} \text{ m}}$ or approximately $\boxed{100.46 \text{ m}}$ .
