13. As observed from the top of a 75 m high lighthouse from the sea-level, the angles of depression of two ships are and . If one ship is exactly behind the other on the same side of the lighthouse, find the distance between the two ships.

Some Applications of Trigonometry | Exercise 9.1

Question 13

As observed from the top of a 75 m high lighthouse from the sea-level, the angles of depression of two ships are $30^\circ$ and $45^\circ$ . If one ship is exactly behind the other on the same side of the lighthouse, find the distance between the two ships.

Solution

Angle of Depression: The angle between the horizontal line of sight and the line looking down to a point below. Here, both angles (45° and 30°) are measured downward from the lighthouse top A to the ships.

Alternate Interior Angles: A horizontal line AX from A is parallel to the sea level. The depression angle $\angle XAC$ equals the elevation angle $\angle ACB$ (alternate interior angles with BD as transversal). This lets us use the depression angles directly in the right triangles.

Tangent Ratio: $\tan\theta = \dfrac{\text{Opposite (height)}}{\text{Adjacent (distance)}}$ — used to find each ship's distance from the lighthouse base.

Both ships on the same side: The distance between them = farther distance $-$ closer distance = $BD - BC$ .

Step 1 — Set up the problem

We draw a diagram to represent the situation. Let AB be the lighthouse. Its height is 75 m. Let C be the position of the closer ship. Let D be the position of the farther ship. Both ships are on the same side of the lighthouse. The angles of depression are $45^\circ$ and $30^\circ$ . The angle of depression to the closer ship (C) is $45^\circ$ . The angle of depression to the farther ship (D) is $30^\circ$ . Let AX be the horizontal line from A. The angle $\angle XAC = 45^\circ$ . The angle $\angle XAD = 30^\circ$ . The alternate interior angles are $\angle ACB = 45^\circ$ and $\angle ADB = 30^\circ$ .

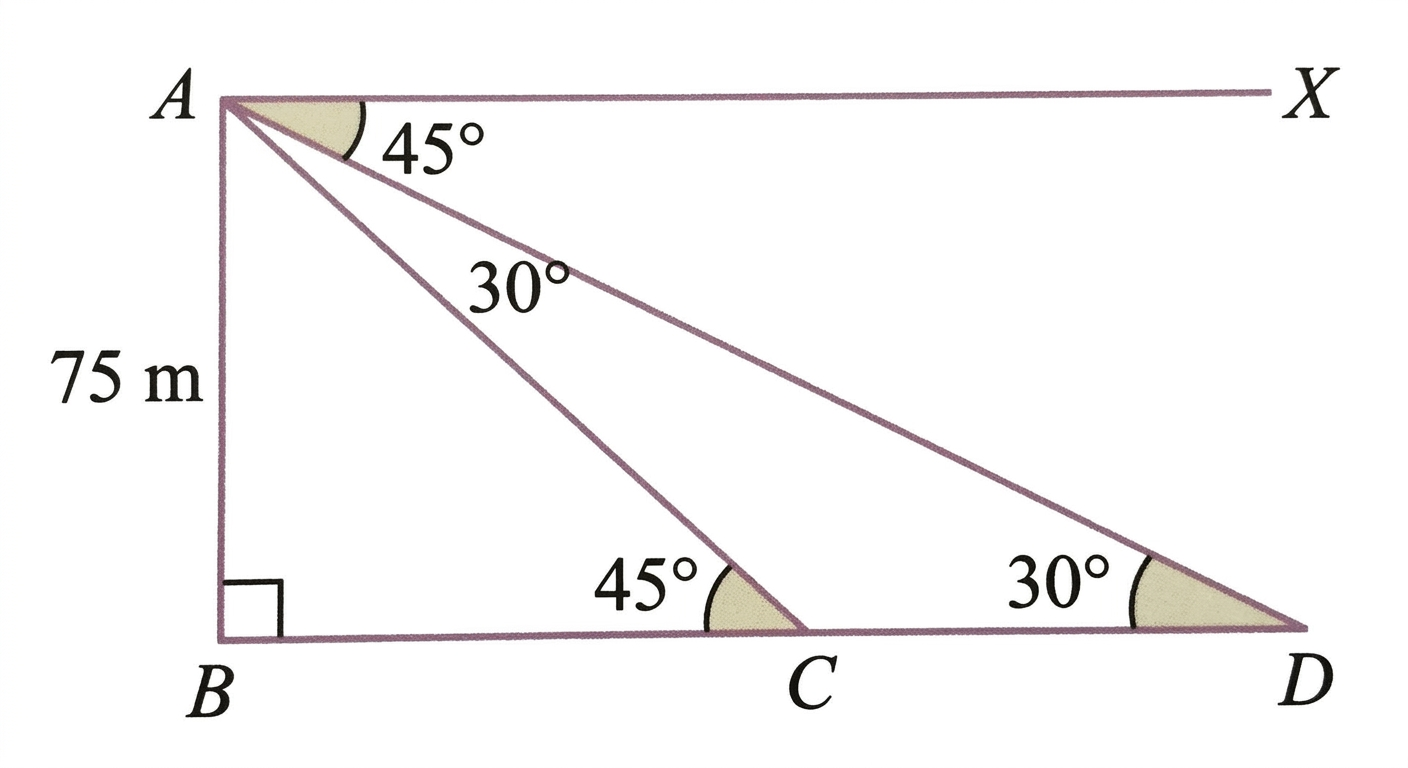

Diagram 1

Step 2 — Calculate distance to the closer ship

Let's consider the right triangle $\triangle ABC$ . The height of the lighthouse AB is 75 m. The angle $\angle ACB$ is $45^\circ$ . We use the tangent ratio. $\tan(\angle ACB) = \frac{AB}{BC}$ $\tan(45^\circ) = \frac{75}{BC}$ $1 = \frac{75}{BC}$ $BC = 75 \times 1$

$\boxed{BC = 75 \text{ m}}$ So, the closer ship is 75 m from the lighthouse.

Step 3 — Calculate distance to the farther ship

Now, let's consider the right triangle $\triangle ABD$ . The height of the lighthouse AB is 75 m. The angle $\angle ADB$ is $30^\circ$ . We use the tangent ratio again. $\tan(\angle ADB) = \frac{AB}{BD}$ $\tan(30^\circ) = \frac{75}{BD}$ $\frac{1}{\sqrt{3}} = \frac{75}{BD}$ $BD = 75 \times \sqrt{3}$

$\boxed{BD = 75\sqrt{3} \text{ m}}$ The farther ship is $75\sqrt{3}$ m from the lighthouse.

Step 4 — Find the distance between the ships

The distance between the two ships is CD. We can find CD by subtracting BC from BD. $CD = BD - BC$ $CD = 75\sqrt{3} - 75$ $CD = 75(\sqrt{3} - 1)$ We know that $\sqrt{3} \approx 1.732$ . $CD = 75(1.732 - 1)$ $CD = 75(0.732)$ $CD = 54.9$

Answer

The distance between the two ships is 54.9 m.
