Circles | Exercise 10.2

Question 2

In Q.1 to 3, choose the correct option and give justification.

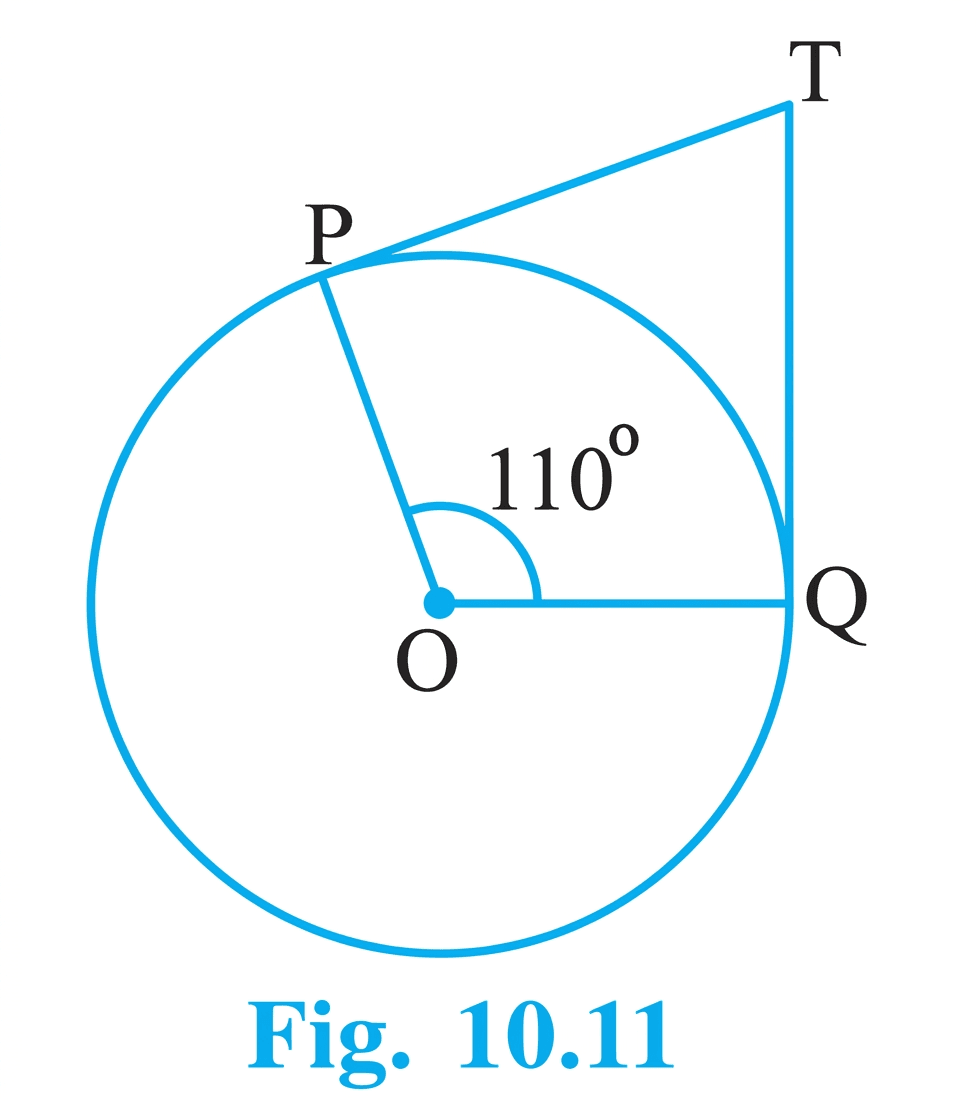

In Fig. 10.11, if TP and TQ are the two tangents to a circle with centre O so that $\angle \text{POQ} = 110^\circ$ , then $\angle \text{PTQ}$ is equal to (A) $60^\circ$ (B) $70^\circ$ (C) $80^\circ$ (D) $90^\circ$

Solution

Setup: T is an external point. TP and TQ are two tangents from T to the circle, touching at P and Q respectively. OP and OQ are radii. Together O, P, T, Q form a quadrilateral OPTQ with four known or findable angles.

We will use the property that the radius is perpendicular to the tangent at the point of contact.

Step 1 — Identify angles

We are given that $\angle \text{POQ}$ is $110^\circ$ .

Tangent-Radius Perpendicularity Theorem: The radius to the point of tangency is always perpendicular to the tangent. So each radius-tangent pair forms a 90° angle.

We know that the radius is perpendicular to the tangent. So, $\text{OP} \perp \text{TP}$ . This means $\angle \text{OPT} = 90^\circ$ .

Also, $\text{OQ} \perp \text{TQ}$ . This means $\angle \text{OQT} = 90^\circ$ .

Step 2 — Calculate $\angle \text{PTQ}$

Consider the quadrilateral $\text{OPTQ}$ . Angle Sum of a Quadrilateral: The interior angles of any quadrilateral always add up to 360°. This follows from dividing the quadrilateral into two triangles, each having 180°.

The sum of angles in a quadrilateral is $360^\circ$ .

So, we can write the equation: $\angle \text{POQ} + \angle \text{OQT} + \angle \text{PTQ} + \angle \text{OPT} = 360^\circ$

Now, substitute the known angle values into the equation: $110^\circ + 90^\circ + \angle \text{PTQ} + 90^\circ = 360^\circ$

Combine the known angles: $290^\circ + \angle \text{PTQ} = 360^\circ$

Subtract $290^\circ$ from both sides to find $\angle \text{PTQ}$ : $\angle \text{PTQ} = 360^\circ - 290^\circ$

$\boxed{\angle \text{PTQ} = 70^\circ}$

Answer

(B) $70^\circ$
