Question 24

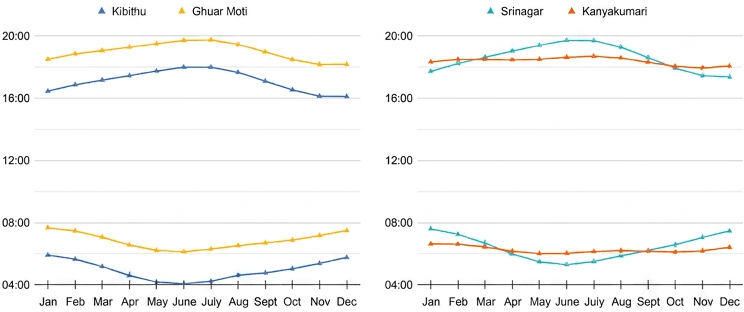

The following graphs show the sunrise and sunset times across the year at 4 locations in India. Observe how the graphs are organised. Are you able to identify which lines indicate the sunrise and which indicate the sunset?
Answer the following questions based on the graphs:
(i) At which place does the sun rise the earliest in January? What is the approximate day length at this place in January?
(ii) Which place has the longest day length over the year?
(iii) Share your observations—what do you find interesting? What are you curious to find out?
These graphs show how the times of sunrise and sunset change throughout the year for different places.

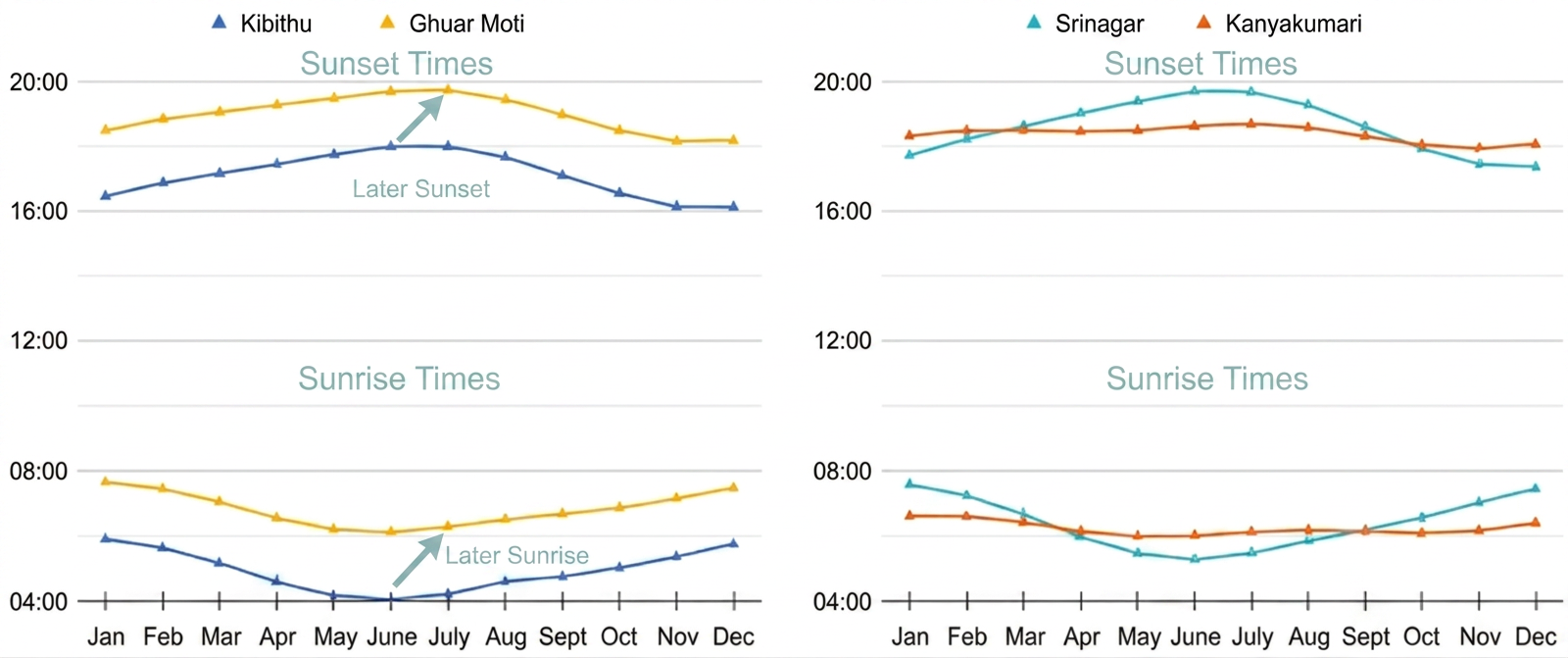

Step 1 — Identifying Sunrise and Sunset Lines Let us look at the y-axis, which shows time. The top graphs show times from about 16:00 to 20:00. These are evening times. So, the lines in the top graphs indicate sunset times. The bottom graphs show times from about 04:00 to 08:00. These are morning times. So, the lines in the bottom graphs indicate sunrise times.
Step 2 — Earliest Sunrise and Day Length in January We need to find the place where the sun rises earliest in January. We look at the bottom graphs (sunrise times) for the month of January. For Kibithu (blue line, left graph), the sunrise time in January is approximately 05:30. For Ghuar Moti (yellow line, left graph), the sunrise time in January is approximately 07:45. For Srinagar (cyan line, right graph), the sunrise time in January is approximately 07:30. For Kanyakumari (orange line, right graph), the sunrise time in January is approximately 06:30. The earliest sunrise in January is at Kibithu.
Now, let us find the approximate day length at Kibithu in January. Sunrise time for Kibithu in January is approximately 05:30. Sunset time for Kibithu in January (from the top left graph) is approximately 17:30. The day length is the difference between the sunset time and the sunrise time.
Step 3 — Place with the Longest Day Length We need to find the place that has the longest day length over the year. Day length is the time from sunrise to sunset. We look for the largest vertical gap between the sunset curve (top) and the sunrise curve (bottom) for each location. This usually happens around June or July.
Let us calculate the maximum day length for each place: For Kibithu (blue line): Maximum sunset time (around June/July) is approximately 18:45. Minimum sunrise time (around June/July) is approximately 04:00. Day length for Kibithu = 18:45 - 04:00 = 14 hours 45 minutes.
For Ghuar Moti (yellow line): Maximum sunset time (around June/July) is approximately 19:45. Minimum sunrise time (around June/July) is approximately 05:45. Day length for Ghuar Moti = 19:45 - 05:45 = 14 hours 00 minutes.
For Srinagar (cyan line): Maximum sunset time (around June/July) is approximately 19:45. Minimum sunrise time (around June/July) is approximately 05:15. Day length for Srinagar = 19:45 - 05:15 = 14 hours 30 minutes.
For Kanyakumari (orange line): Maximum sunset time (around June/July) is approximately 18:45. Minimum sunrise time (around June/July) is approximately 06:00. Day length for Kanyakumari = 18:45 - 06:00 = 12 hours 45 minutes.
Comparing these, Kibithu has the longest day length over the year.
Step 4 — Observations and Curiosities Let us share our observations and what we are curious about.
Observations: The top graphs show sunset times, and the bottom graphs show sunrise times. Sunrise and sunset times change throughout the year in a wave-like pattern. Places further north, like Srinagar, Kibithu, and Ghuar Moti, have a much larger change in day length over the year. Kanyakumari, which is closer to the equator, has a day length that stays almost constant, around 12 hours. Kibithu (in the east) has much earlier sunrises and sunsets compared to Ghuar Moti (in the west). This is because of their different longitudes (east-west positions).
Curiosities: We are curious about how the exact latitude (north-south position) of a place affects the variation in its day length. We want to know why places with similar latitudes but different longitudes have similar day length patterns but different clock times for sunrise and sunset. We wonder how these graphs would look for places very close to the North Pole or in the Southern Hemisphere.
Answer
(i) The sun rises earliest in January at Kibithu. The approximate day length at Kibithu in January is 12 hours. (ii) Kibithu has the longest day length over the year. (iii) Observations: The top graphs show sunset times, and the bottom graphs show sunrise times. Sunrise and sunset times change throughout the year, following a wave-like pattern. Places further north (like Srinagar, Kibithu, Ghuar Moti) have a much larger change in day length over the year compared to Kanyakumari, which is closer to the equator and has a day length that stays almost constant around 12 hours. Kibithu (in the east) has much earlier sunrises and sunsets compared to Ghuar Moti (in the west), even though their day length patterns are similar. This is due to their different longitudes. Curiosities: We are curious about how the exact latitude of a place affects the variation in its day length. We want to know why places with similar latitudes but different longitudes have similar day length patterns but different clock times for sunrise and sunset. We wonder how these graphs would look for places very close to the North Pole or in the Southern Hemisphere.
