Question 24

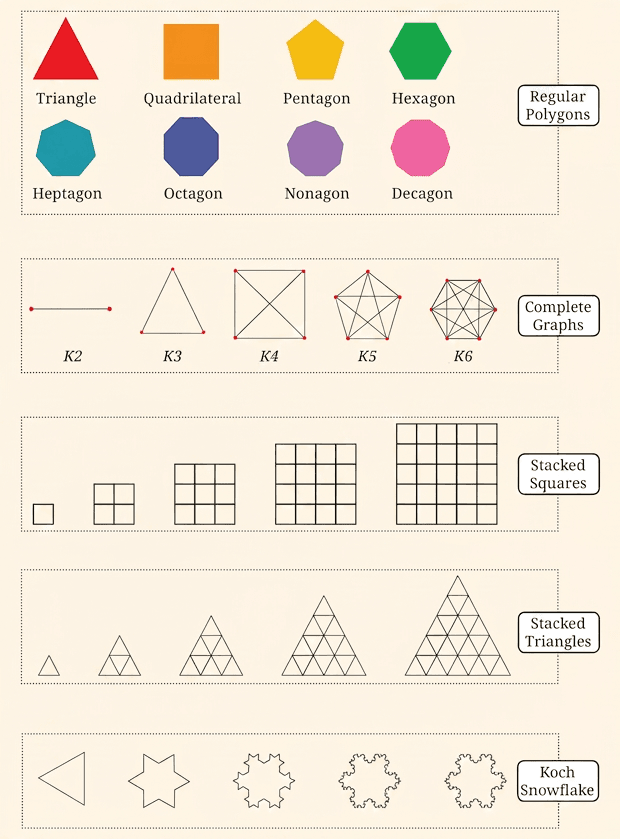

How many little triangles are there in each shape of the sequence of Stacked Triangles? Which number sequence does this give? Can you explain why? (Hint: In each shape in the sequence, how many triangles are there in each row?)

Solution

Let us find the number of small triangles in each shape.

Step 1 — Counting Triangles

Let us look at the first shape. It has only one small triangle. Let us look at the second shape. It has two rows of triangles. The top row has one triangle. The bottom row has three triangles. So, the total is $1 + 3$ triangles.

$1 + 3$

$\boxed{4 \text{ triangles}}$

Let us look at the third shape. It has three rows of triangles. The top row has one triangle. The second row has three triangles. The third row has five triangles. So, the total is $1 + 3 + 5$ triangles.

$1 + 3 + 5$

$\boxed{9 \text{ triangles}}$

Let us look at the fourth shape. It has four rows of triangles. The top row has one triangle. The second row has three triangles. The third row has five triangles. The fourth row has seven triangles. So, the total is $1 + 3 + 5 + 7$ triangles.

$1 + 3 + 5 + 7$

$\boxed{16 \text{ triangles}}$

Let us look at the fifth shape. It has five rows of triangles. The top row has one triangle. The second row has three triangles. The third row has five triangles. The fourth row has seven triangles. The fifth row has nine triangles. So, the total is $1 + 3 + 5 + 7 + 9$ triangles.

$1 + 3 + 5 + 7 + 9$

$\boxed{25 \text{ triangles}}$

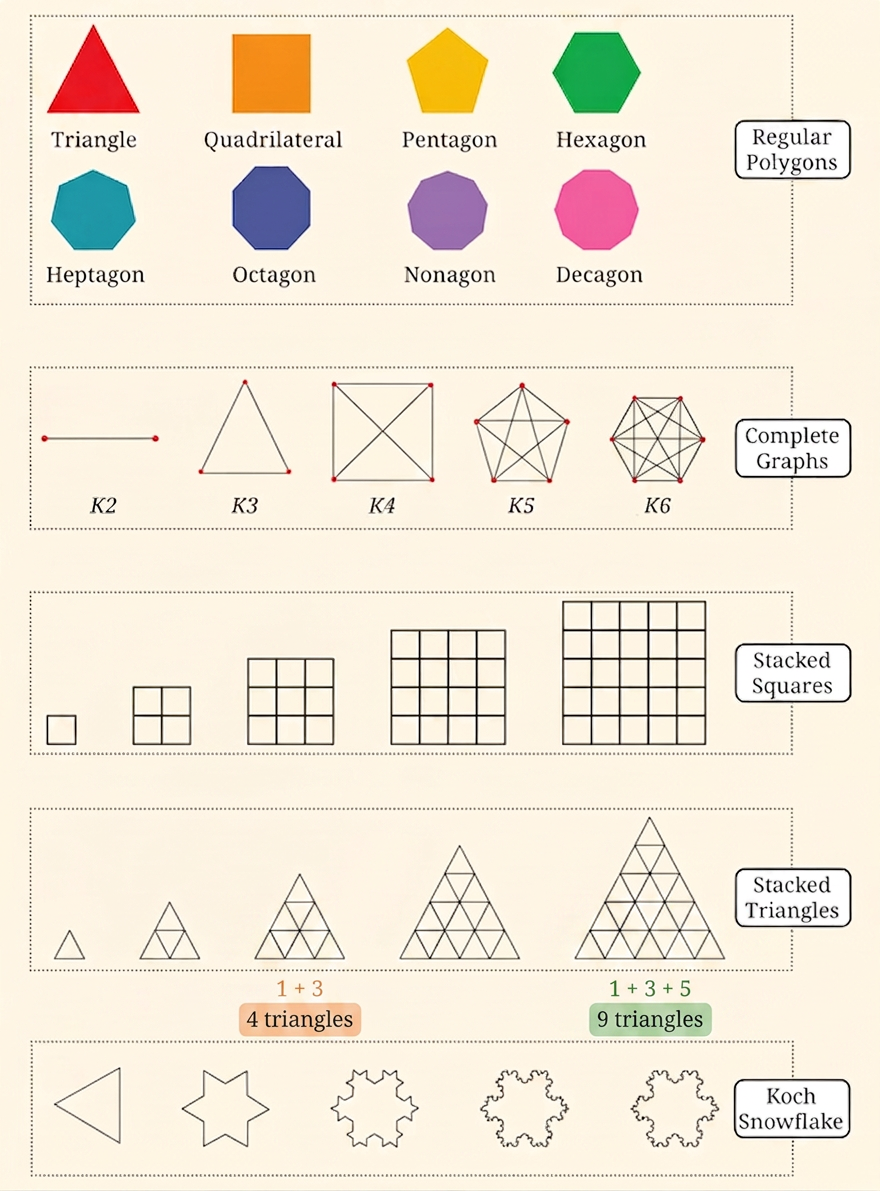

Diagram 1

Step 2 — Identifying the Sequence

The number of little triangles in each shape is 1, 4, 9, 16, 25. We can see a pattern in these numbers. These are numbers we get by multiplying a whole number by itself. For example, $1 \times 1 = 1$ . Also, $2 \times 2 = 4$ . And $3 \times 3 = 9$ . Then $4 \times 4 = 16$ . Finally, $5 \times 5 = 25$ . These numbers are called perfect square numbers.

Step 3 — Explaining the Pattern

Let us look closely at the rows in each triangle. The first shape has 1 row and 1 triangle. The second shape has 2 rows. The rows have 1 and 3 triangles. The sum is $1 + 3 = 4$ . The third shape has 3 rows. The rows have 1, 3, 5 triangles. The sum is $1 + 3 + 5 = 9$ . The fourth shape has 4 rows. The rows have 1, 3, 5, 7 triangles. The sum is $1 + 3 + 5 + 7 = 16$ . The fifth shape has 5 rows. The rows have 1, 3, 5, 7, 9 triangles. The sum is $1 + 3 + 5 + 7 + 9 = 25$ . We see that each row adds an odd number of triangles. The top row always has 1 triangle. The next row has 3 triangles. The next row has 5 triangles. This pattern of odd numbers continues. The total number of triangles is the sum of these odd numbers. A special rule in maths says: The sum of the first $n$ odd numbers is always $n \times n$ . So, if a shape has $n$ rows, it has $n \times n$ triangles. This is why the total number of triangles is a perfect square.

Answer

(i) The number of little triangles in each shape of the sequence of stacked triangles is: 1, 4, 9, 16, 25. (ii) This gives the sequence of perfect square numbers. (iii) The number of little triangles in each shape is a perfect square because each row has triangles in increasing odd numbers: the top row has 1, the second row has 3, the third row has 5, and so on. The sum of the first $n$ odd numbers is $n \times n$ .
