Triangles | Exercise 6.2

Question 4

In Fig. 6.19, DE || AC and DF || AE. Prove that

BFFE=BEEC\frac{\text{BF}}{\text{FE}} = \frac{\text{BE}}{\text{EC}}.

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

We will use the Basic Proportionality Theorem (Thales's Theorem) to solve this problem.

Step 1 — Apply BPT in ABC\triangle ABC

Let's look at ABC\triangle ABC. We are given that DE || AC. By the Basic Proportionality Theorem, the sides are divided proportionally.

BDDA=BEEC\frac{\text{BD}}{\text{DA}} = \frac{\text{BE}}{\text{EC}}

BDDA=BEEC(1)\boxed{\frac{\text{BD}}{\text{DA}} = \frac{\text{BE}}{\text{EC}} \quad \text{(1)}}

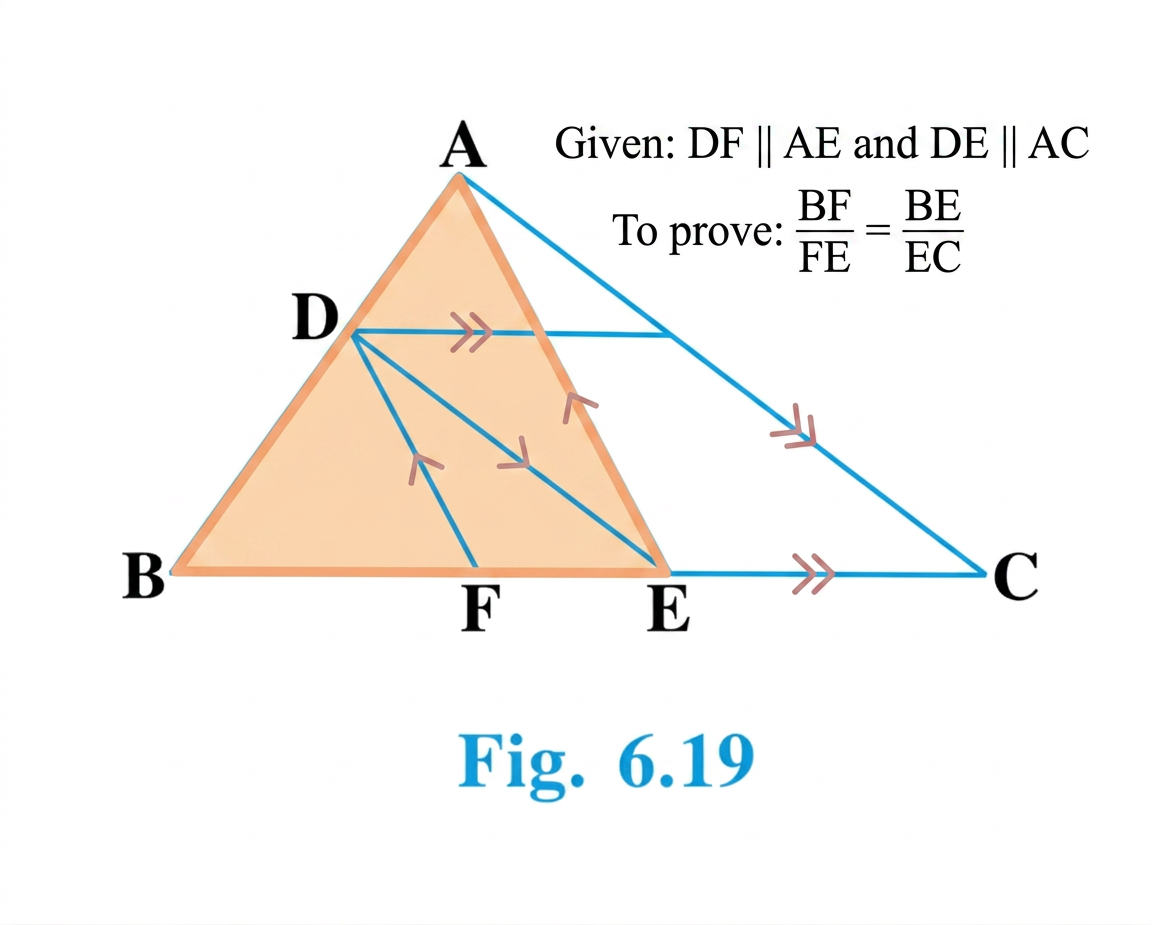

Diagram 1

Step 2 — Apply BPT in BAE\triangle BAE

Now, let's consider BAE\triangle BAE. We are given that DF || AE. By the Basic Proportionality Theorem, the sides are divided proportionally.

BDDA=BFFE\frac{\text{BD}}{\text{DA}} = \frac{\text{BF}}{\text{FE}}

BDDA=BFFE(2)\boxed{\frac{\text{BD}}{\text{DA}} = \frac{\text{BF}}{\text{FE}} \quad \text{(2)}}

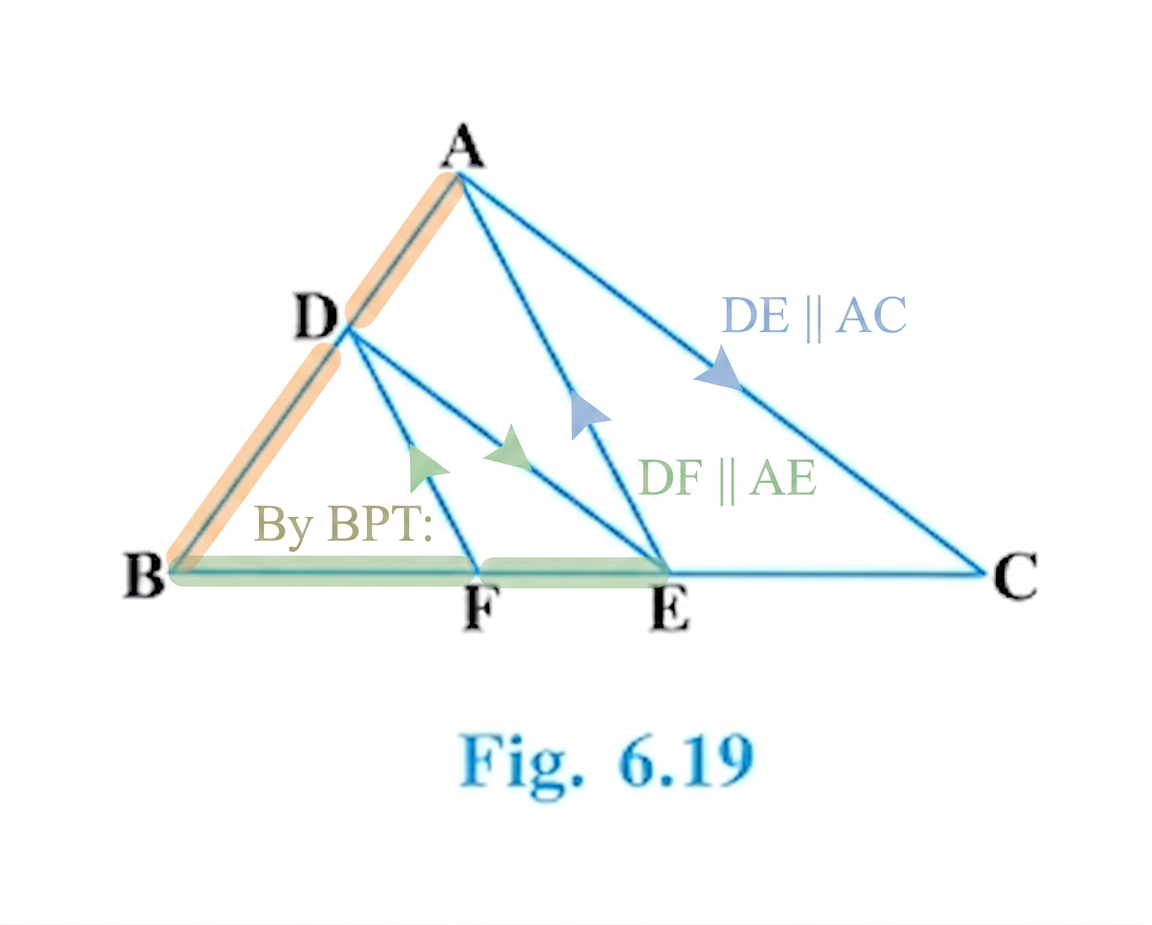

Diagram 2

Step 3 — Equate the ratios

From equation (1), we know BDDA=BEEC\frac{\text{BD}}{\text{DA}} = \frac{\text{BE}}{\text{EC}}. From equation (2), we know BDDA=BFFE\frac{\text{BD}}{\text{DA}} = \frac{\text{BF}}{\text{FE}}. Both ratios are equal to BDDA\frac{\text{BD}}{\text{DA}}. Therefore, they must be equal to each other.

BFFE=BEEC\frac{\text{BF}}{\text{FE}} = \frac{\text{BE}}{\text{EC}}

Answer

(i) We have proved that BFFE=BEEC\frac{\text{BF}}{\text{FE}} = \frac{\text{BE}}{\text{EC}}.
