Areas Related to Circles | Exercise 11.1

Question 5

In a circle of radius $21\text{ cm}$ , an arc subtends an angle of $60^\circ$ at the centre. Find:

(i) the length of the arc

(ii) area of the sector formed by the arc

(iii) area of the segment formed by the corresponding chord

Solution

We will use formulas for arc length, sector area, and segment area.

Step 1 — Find arc length

Let's find the length of the arc. The radius of the circle is $\mathbf{r = 21 \text{ cm}}$ . The angle subtended is $\mathbf{\theta = 60^\circ}$ . The formula for arc length is $\frac{\theta}{360^\circ} \times 2\pi r$ .

$L = \frac{60^\circ}{360^\circ} \times 2 \times \frac{22}{7} \times 21$

$= \frac{1}{6} \times 2 \times 22 \times 3$

$\boxed{22 \text{ cm}}$

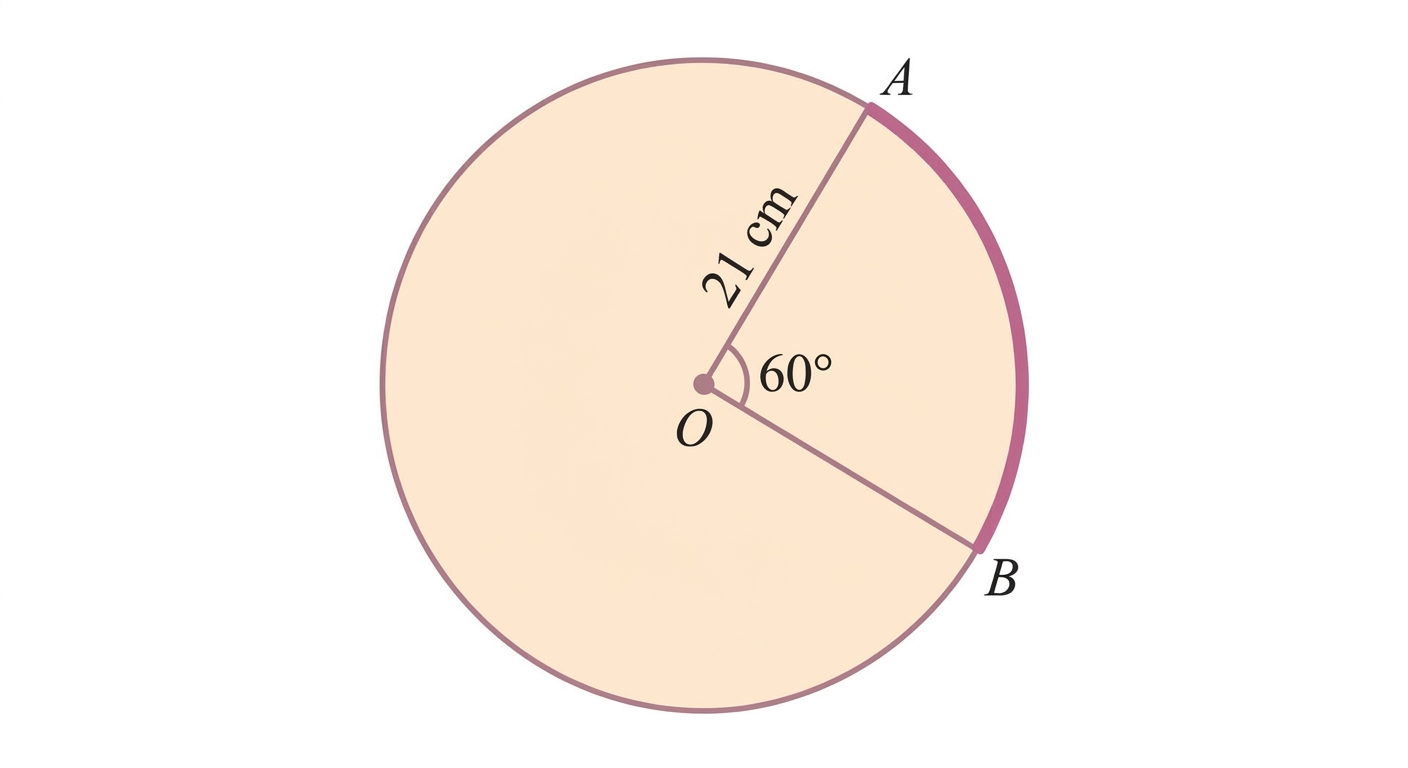

Diagram 1

Step 2 — Find sector area

Now, we find the area of the sector. The formula for sector area is $\frac{\theta}{360^\circ} \times \pi r^2$ .

$A_{sector} = \frac{60^\circ}{360^\circ} \times \frac{22}{7} \times (21)^2$

$= \frac{1}{6} \times \frac{22}{7} \times 21 \times 21$

$\boxed{231 \text{ cm}^2}$

Step 3 — Find segment area

Let's find the area of the segment. The segment area is sector area minus triangle area. The triangle formed by radii and chord is $\triangle OAB$ . Sides $OA = OB = \mathbf{21 \text{ cm}}$ . Angle $\angle AOB = \mathbf{60^\circ}$ . This means $\triangle OAB$ is an equilateral triangle. The area of an equilateral triangle is $\frac{\sqrt{3}}{4} \times (\text{side})^2$ .

$A_{triangle} = \frac{\sqrt{3}}{4} \times (21)^2$

$= \frac{441\sqrt{3}}{4}$

$A_{segment} = A_{sector} - A_{triangle}$

$= 231 - \frac{441\sqrt{3}}{4}$

$\boxed{\left(231 - \frac{441\sqrt{3}}{4}\right) \text{ cm}^2}$

Answer

(i) The length of the arc is $\mathbf{22 \text{ cm}}$ . (ii) The area of the sector is $\mathbf{231 \text{ cm}^2}$ . (iii) The area of the segment is $\mathbf{\left(231 - \frac{441\sqrt{3}}{4}\right) \text{ cm}^2}$ .
